Main Features:

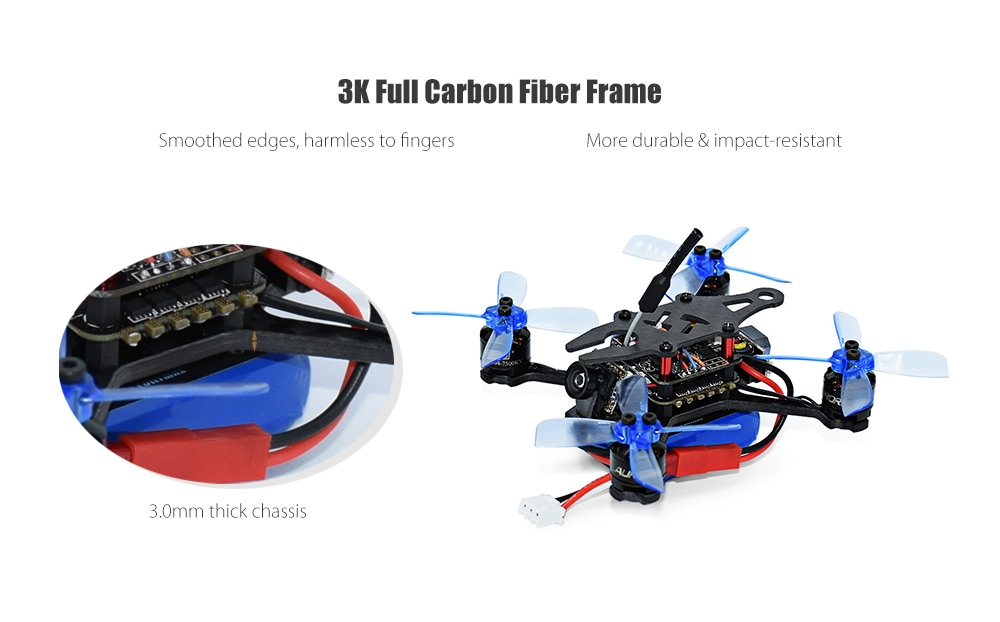

- True "X" carbon fiber frame, perfectly symmetrical, with 3mm thickness and smooth edges

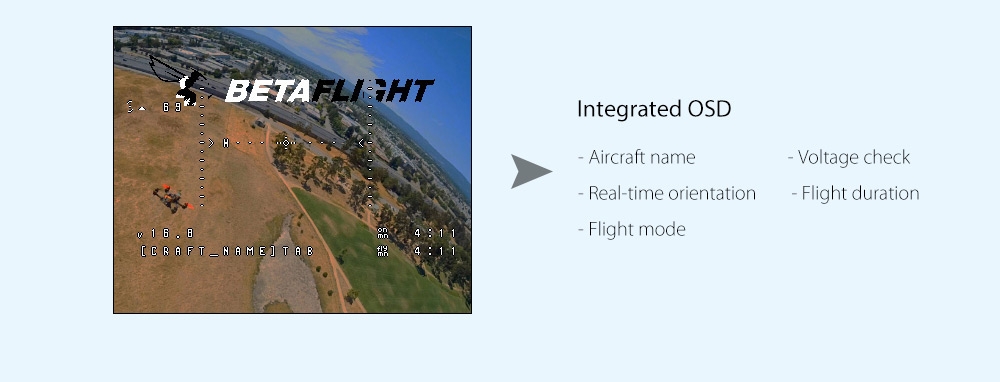

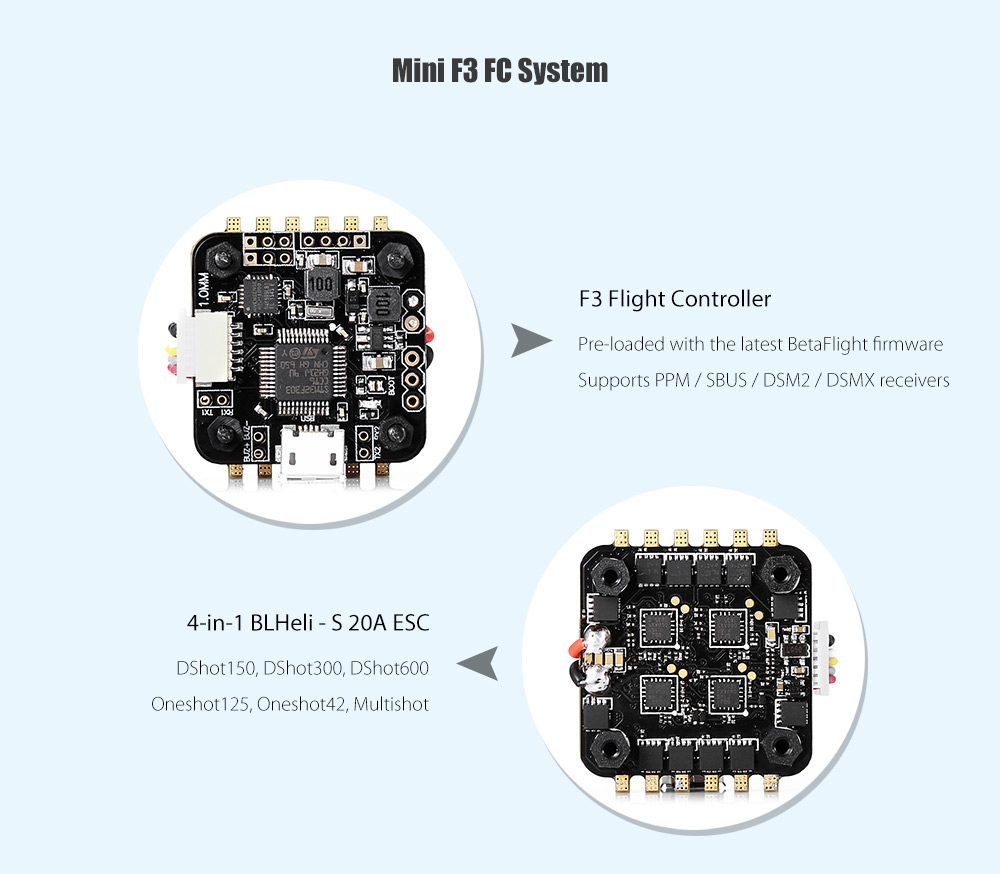

- Mini F3 flight control system with OSD supports PPM / SBUS / DSM2 / DSMX receivers
- Superior operation with 4-in-1 BLHeli - S 20A ESC which uses the latest DShot signals
- Outstanding 600TVL HD CMOS camera, extremely sensitive to light, offers you high-quality image
- 5.8G real-time image transmission, 48CH wide coverage within 200m range

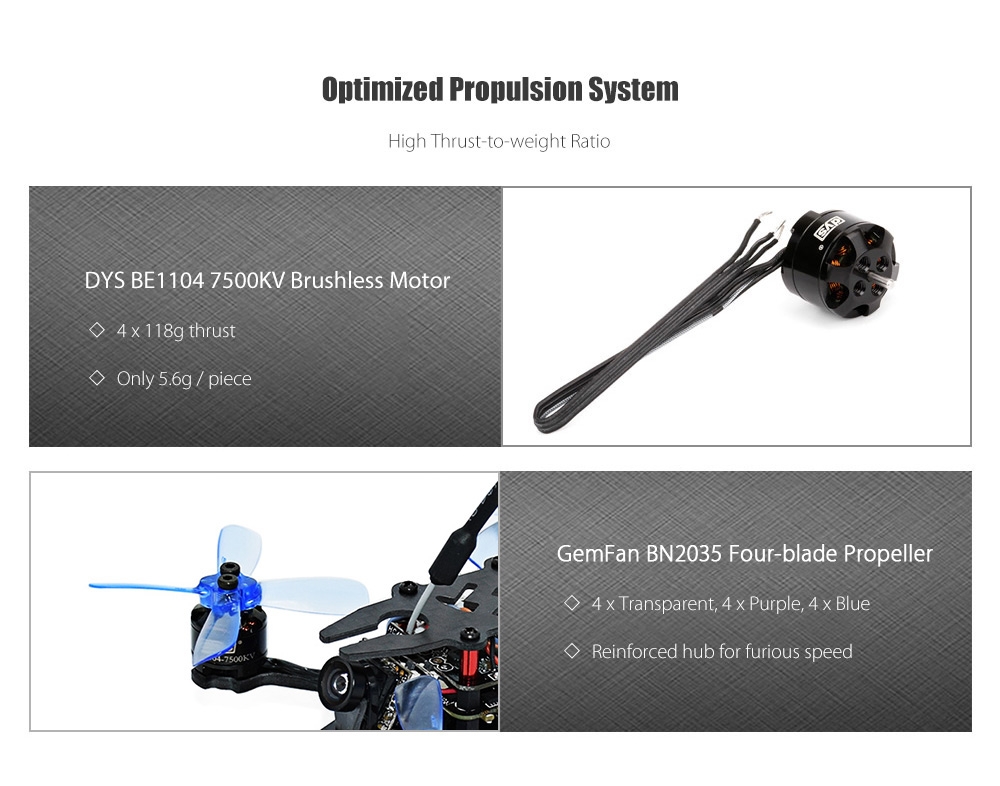

- Powerful DYS BE1104 brushless motor. Each can generate up to 118g thrust
- Gemfan BN2035 four-blade propellers, reinforced and anti-crash, ideal for high-speed flying

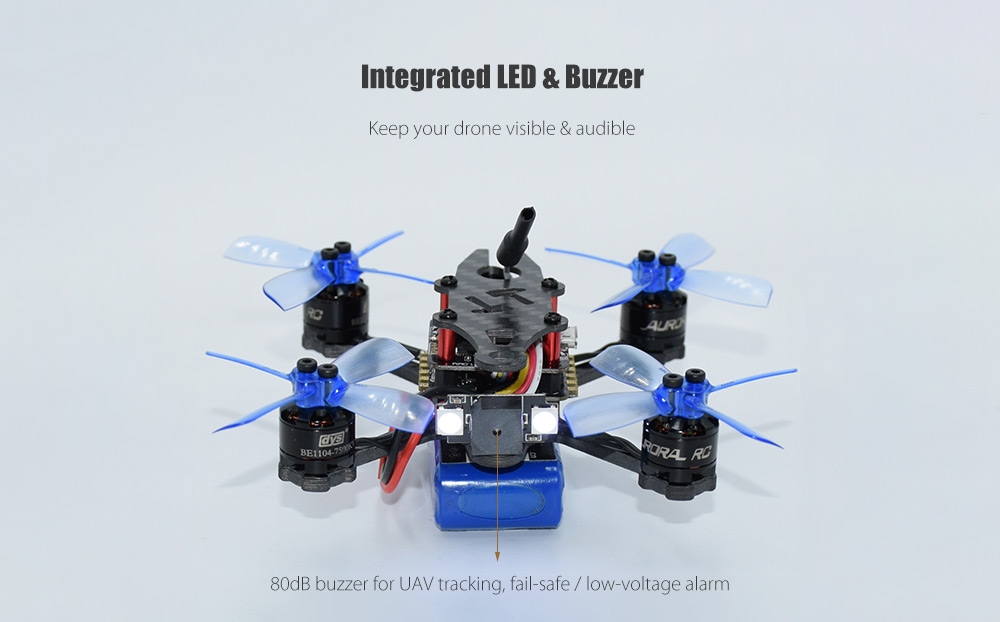

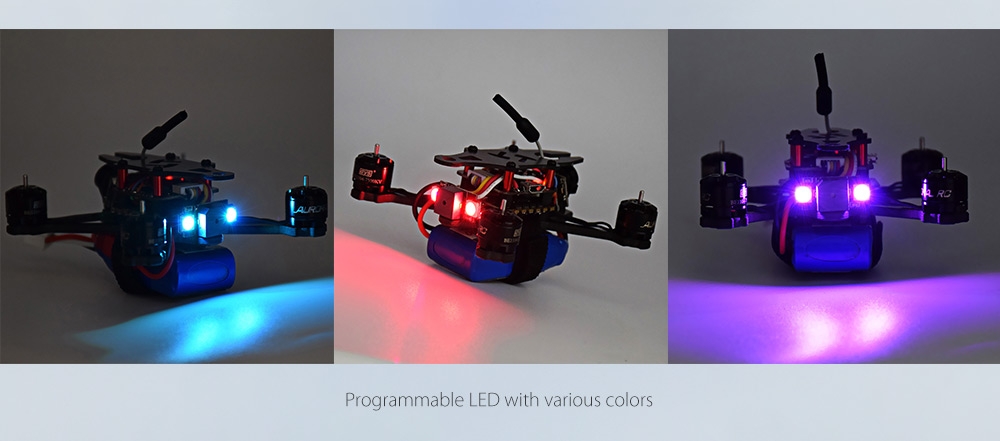

- Programmable LED with 80dB buzzer for UAV tracking, fail-safe / low-voltage alarm
Specifications:
Flight control system: Mini F3
3K carbon fiber frame thickness: 3mm
Brushless motor: DYS BE1104 7500KV
Propeller: Gemfan BN2035 four-blade ( 3 sets )
Video transmitter: 5.8G 48CH 25mW
Camera: 600TVL HD CMOS ( supports OSD and includes signal input / output cable )
Field of view: 120 degree
Image transmission range: 200m
Antenna gain: 3dBi
Alarm: audible ( 80dB ); visible ( 10 lm )
Power supply: supports up to 3S
Aircraft weight: 56g ( excluding battery )
Battery: 7.4V 500mAh 30C ( included )
Battery weight: 29.8g
Specification
General |
Type: Frame Kit |
|---|---|
Motor |
Model: BE1104
Motor Type: Brushless Motor KV: 7500 Shaft Diameter: 1.5mm Motor Dimensions: 12.5 x 14mm ( diameter x height ) Maximum Thrust: 118g / piece |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Video Resolution: 600TVL ( horizontal )
Sensor: CMOS |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 Continuous Current: 20A |
Battery |
Battery (mAh): 500mAh
Battery Coulomb: 30C Flying Time: 4~5mins Charging Time.: about 60mins Battery Size: 45 x 25 x 14mm Plug Type: JST,Other Plug |
Dimension and Weight |
Product weight: 0.0560 kg
Package weight: 0.1750 kg Product size (L x W x H): 8.20 x 8.20 x 2.40 cm / 3.23 x 3.23 x 0.94 inches Package size (L x W x H): 18.00 x 12.00 x 6.00 cm / 7.09 x 4.72 x 2.36 inches |
Package Contents |
Package Contents: 1 x Drone ( Battery Included ), 4 x Transparent Propeller, 4 x Blue Propeller, 4 x Purple Propeller, 1 x Pack of Screws, 2 x Sticker, 1 x Battery Strap, 4 x Spare Zip Tie ( Random Color ) |
