Main Features:

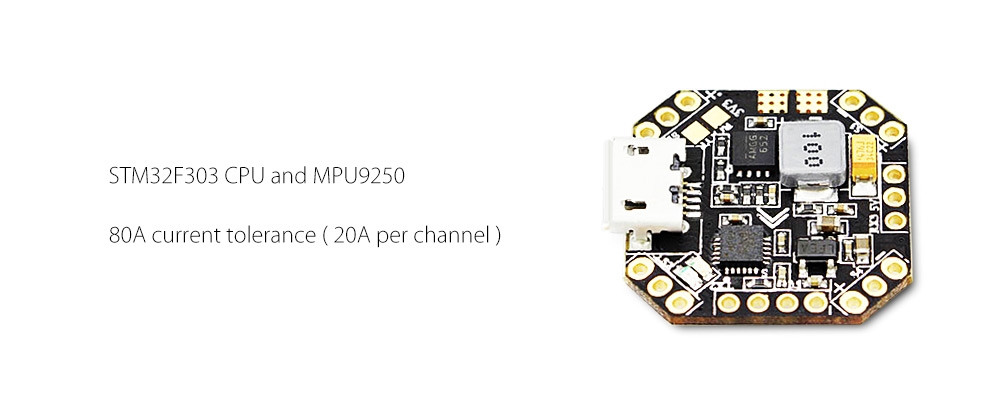

- EMAX Femto micro F3 flight controller with STM32F303 CPU and MPU9250, ideal for micro brushless racing drone
- Furious flight and accurate operation with 1104 5250KV high RPM brushless motors and Bullet Series DShot ESCs

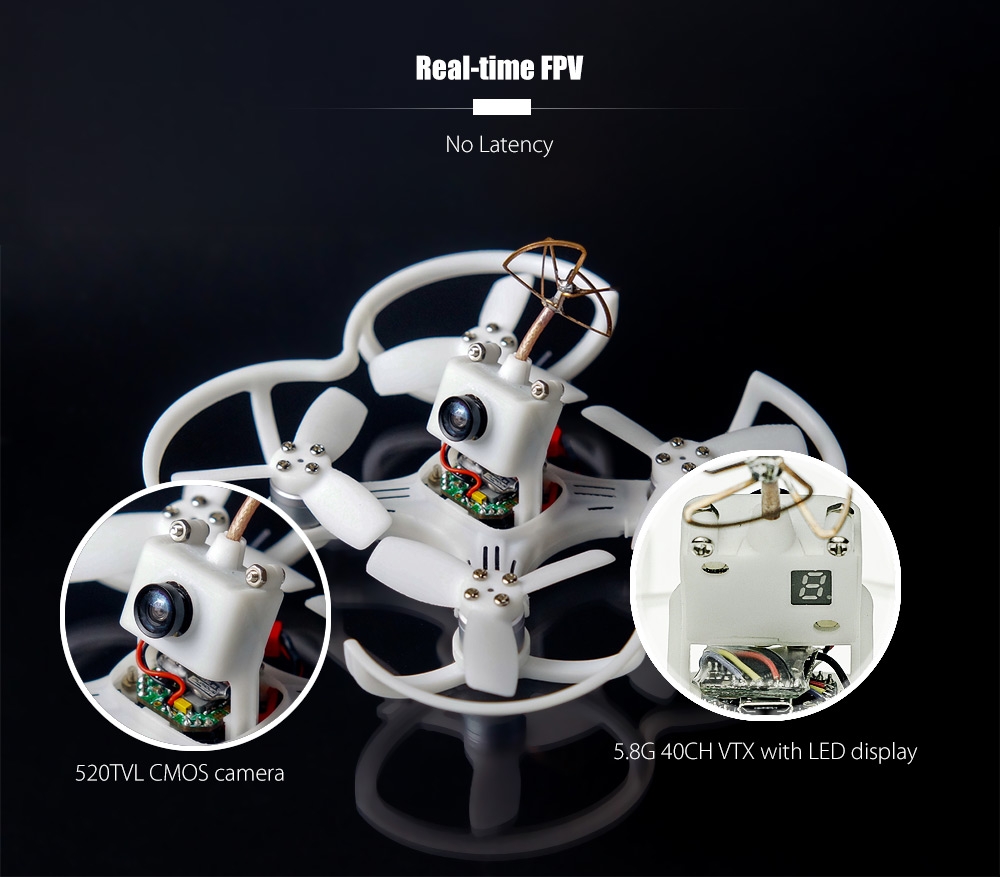

- 520TVL CMOS camera, 5.8G 40CH VTX. 25mW / 200mW adjustable power for different flying environment
Specifications:

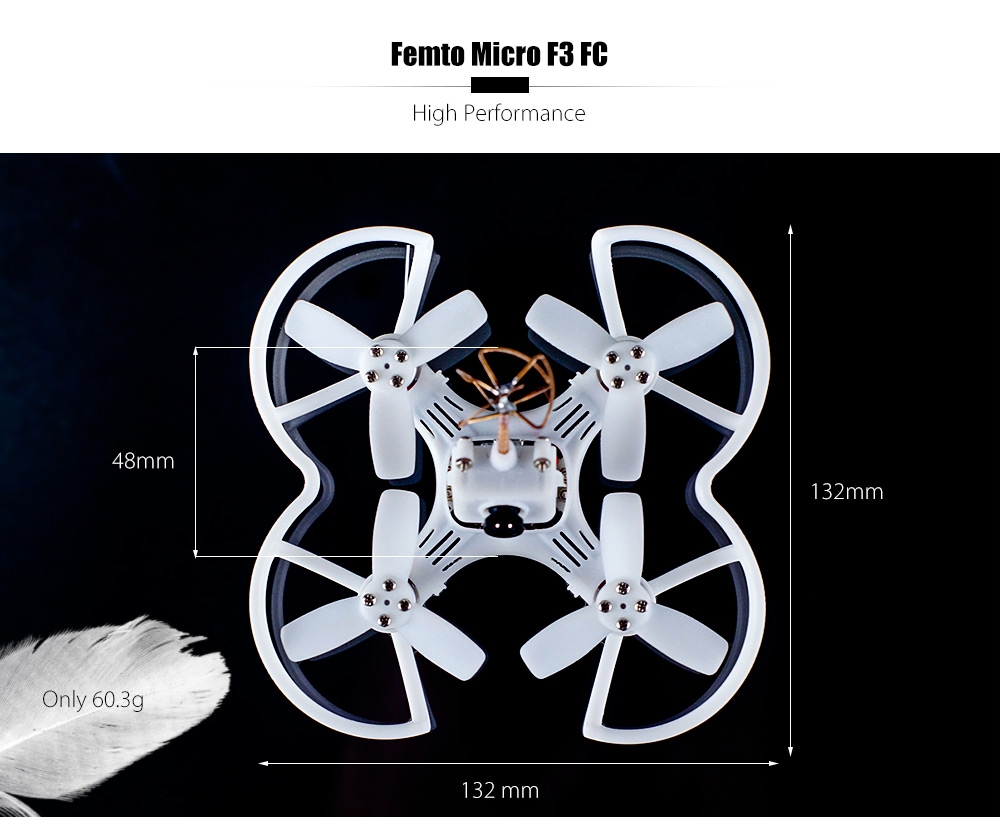

Wheelbase: 85mm
Size: 132 x 132 x 48mm
AIO FPV camera: 520TVL CMOS, 5.8G 40CH 25mW / 200mW
Propeller: TS2345 tri-blade
Flight controller: Femto micro F3
Brushless motor: 1104 5250KV
ESC: Bullet Series BLHeli - S 6A
Weight: 60.3g
Recommended Battery:
No. of cells: 2S
Capacity: 300mAh
Connector: 51005 plug
Size: 42 x 20 x 15.8mm
Note:
This is the PNP version which does not include battery, transmitter or receiver.
Specification
General |
Brand: EMAX
Type: Frame Kit Version: PNP |
|---|---|
Motor |
Model: 1104
Motor Type: Brushless Motor KV: 5250 CW / CCW: CCW,CW |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Video Resolution: 520TVL
Sensor: CMOS |
Electronic Speed Controller |
Firmware: BLHeli-S
Continuous Current: 6A |
Dimension and Weight |
Product weight: 0.0603 kg
Package weight: 0.3100 kg Product size (L x W x H): 13.20 x 13.20 x 4.80 cm / 5.2 x 5.2 x 1.89 inches Package size (L x W x H): 22.50 x 14.50 x 6.90 cm / 8.86 x 5.71 x 2.72 inches |
Package Contents |
Package Contents: 1 x Frame Kit |
