FuriBee F3 32-bit Brushed Flight Controller

FuriBee F3 32-bit Brushed Flight Controller
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Based on F3 flight controller, FuriBee F3 flight controller features some improvements
- Its high-performance STM32F303CCT6 32-bit processor with 256KB flash brings you better flight experience
- The FLYSKY receiver is characterized by 200m long receive distance and stable signals
- Caters different groups by supporting 1S 4.2V input, onboard 5V and 3.3V output
- It can be connected to video transmitters and other receivers
- Excellent electric circuits. There is always 1A output current at 5V, which ensures the high performance of both the flight controller and its peripherals
- Supports signal input of SBUS, DSM satellite, PPM receivers, offering you more options
- Micro USB connector for programming
- Suitable for mini RC quadcopters like Blade Inductrix, E010, JJRC H36, FuriBee F36 and so on

Specifications:
- STM32F303CCT6 32-bit processor with 256KB flash
- MPU6050 gyro / accelerometer
- High quality, gold plated PCB
- Integrated FLYSKY 8CH receiver, serial port output
- With the built-in DC-DC boost circuit, it can be powered by other devices via IIC or UART port
- Motor drive frequency: 2K ( it can be set by users, 32K at maximum )
- Parameters can be configured in CleanFlight
- Dimension: 27.5 x 27.5mm
- Weight: 2.7g

Note:

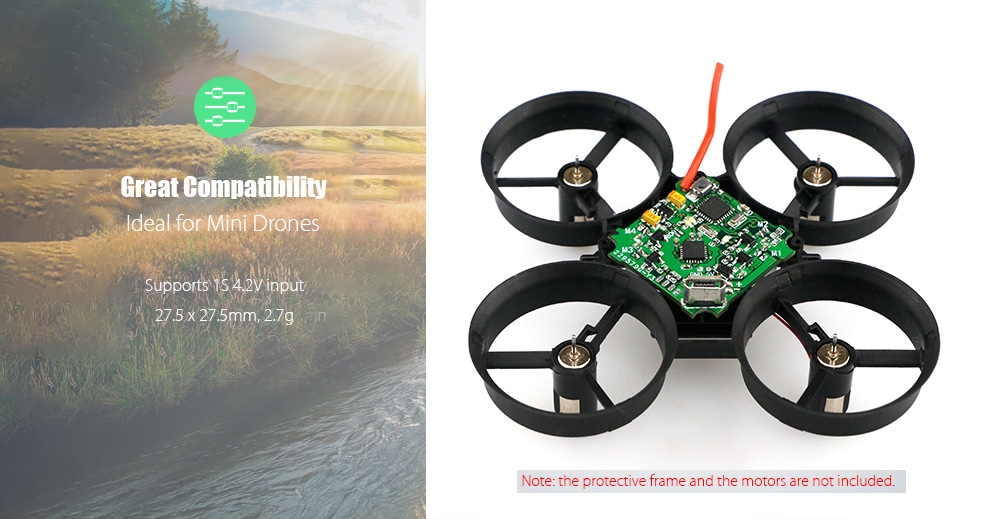

The protective frame and the motors in the picture are not included.
This FLYSKY receiver version does not support data return.

Specification

General

Brand: FuriBee
Type: Flight Controller

Flight Controller

Flight Controller Type: F3

Dimension and Weight

Package weight: 0.0200 kg
Product size (L x W x H): 2.75 x 2.75 x 0.10 cm / 1.08 x 1.08 x 0.04 inches
Package size (L x W x H): 4.00 x 4.00 x 1.00 cm / 1.57 x 1.57 x 0.39 inches

Package Contents

Package Contents: 1 x F3 Flight Controller, 1 x Power Cable, 4 x Shock Absorber, 4 x Screw

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
