Skyzone RD40 FPV 5.8G 40CH LED Digital Display Diversity Receiver

Skyzone RD40 FPV 5.8G 40CH LED Digital Display Diversity Receiver
Seller: Geekbuying,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)

Highlights

  • 40 channels, 5 frequency band wireless receiving
  • Two buttons for channel and band exchange individually
  • Two number display, timely locate the current receiving frequency and band
  • When power on, storage memory shows channel and frequency of the last time
  • Two-way video and audio signal output ( video: PAL, NTSC, CECAM;Audio: 6.5MHz)
  • Wide dynamic power supply ( 7-24v)
  • Two-way high senstivity receivers, make your signals more stable
  • With specific indicator shows the current working state

Specification

General
Type Receiver
Model Skyzone RD40
Frequency ISM 5.8GHz 40CH
Connector RP-SMA
Sensitivity -90dBm
Power Supply  Voltage: DC 7-24V
Current: 280mA
RF Input Matching 50ohm
AV Video Output Level: 1.0Vp_p 75Ω
Audio Output Level: 1.0Vp_p 10KΩ
Dimension/Weight Dimension: 80 x 65 x 15mm
Weight: 100g
Frequency: CH and FR Form FR1 or (A): 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
FR2 or (B): 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
FR3 or (E): 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
FR4 or (F): 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
FR5 or (R): 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
Function Channel control and LED display
When power on,press CH, RX1 and RX2 channel Change, and shows on
CH-LED display.
So Channel and digi-display loop from 1-8.
Frenquency control and LED display
When power on,press FR, RX1 and RX2 frenquency Change, and shows on
FR-LED display
So Frenquency and digi-display loop from 1-5

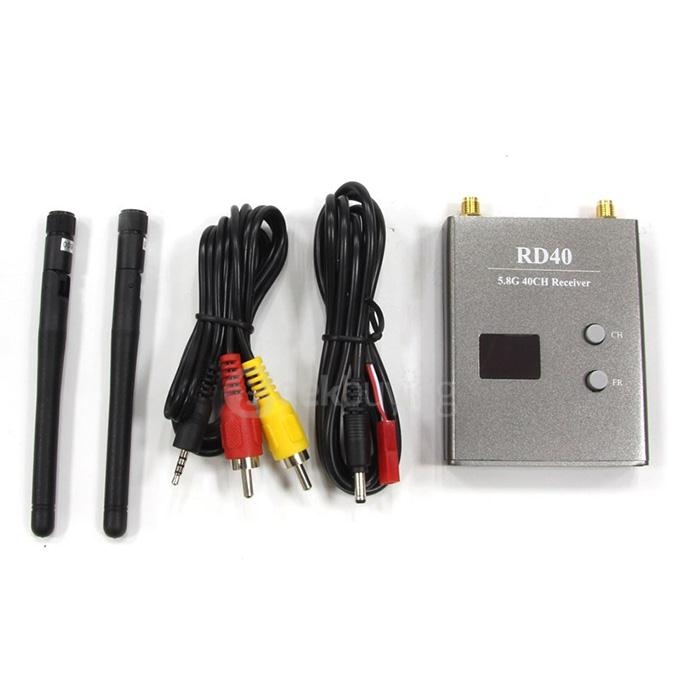

Package Contents
1 x Receiver
1 x AV Cable
1 x Power Cable
2 x Antenna
