Description:

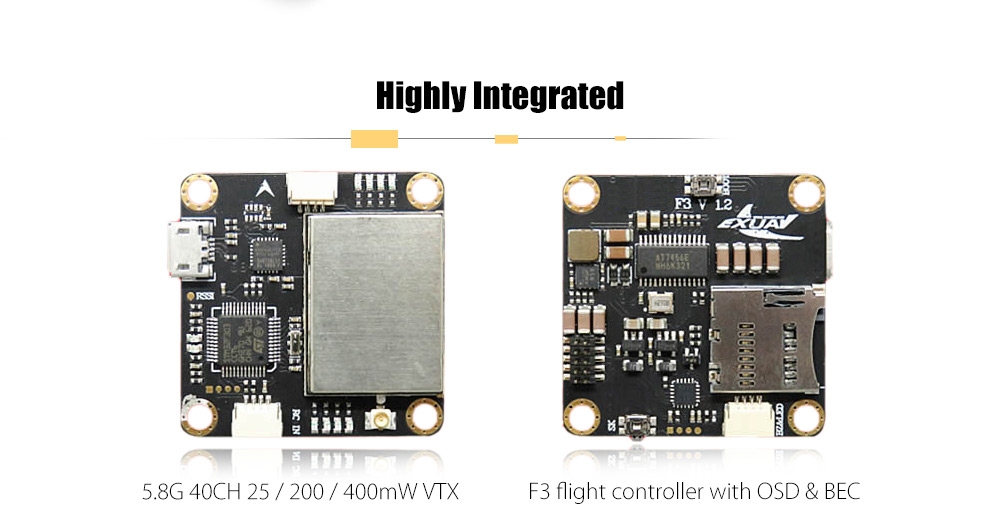

The Flytower tower structure F3 flight controller, based on BetaFlight FC, is highly integrated with OSD, BEC, 4-in-1 BLHeli - S 30A DShot ESC and 5.8G 40CH 25 / 200 / 400mW VTX. It gives you all the features what you need in FPV, which makes you enjoy every moment in FPV racing.
Main Features:
Practical - easy to access connectors

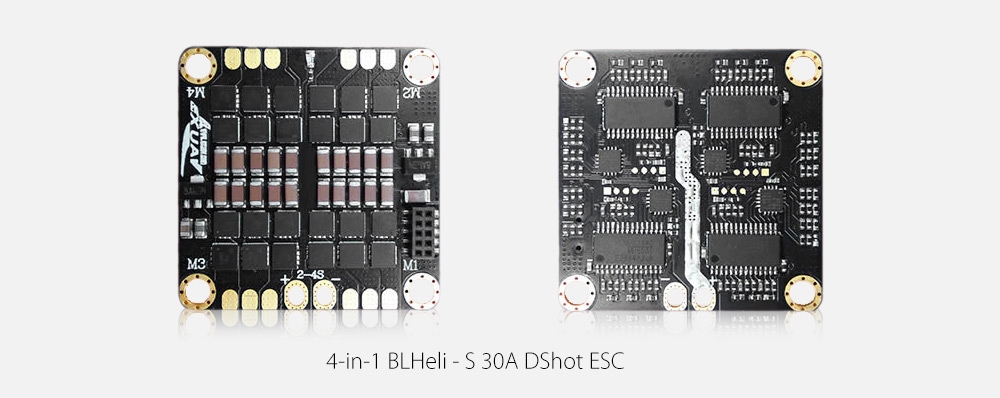

Stackable - 4-in-1 BLHeli - S 30A DShot ESC, 5.8G 40CH VTX

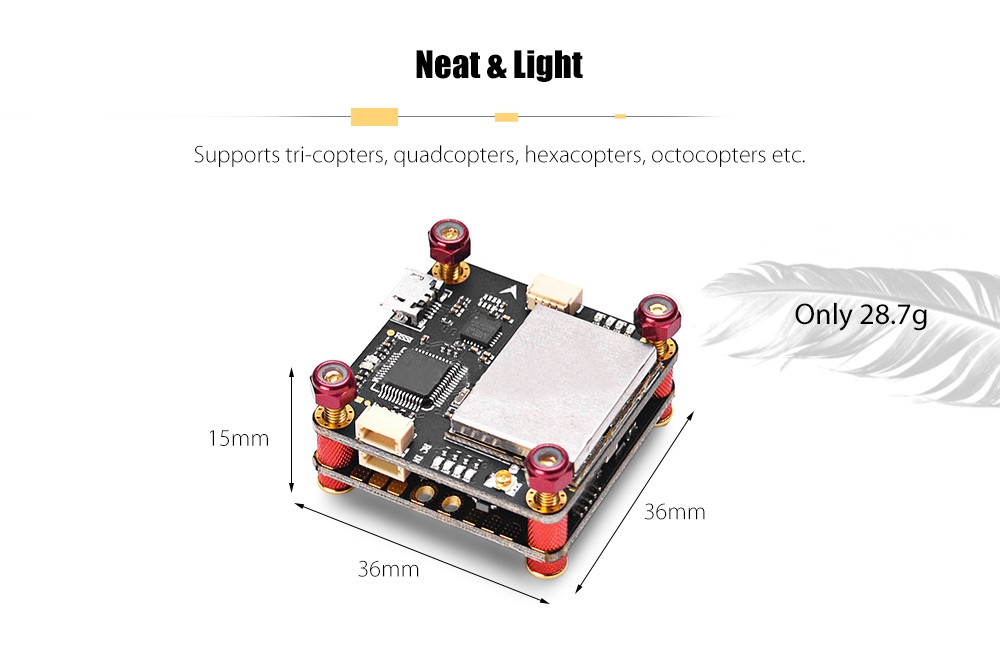

Compact - only 36 x 36 x 15mm
Weight - 28.7 grams ( 2 PCB boards )
Professional - symmetrical and neat
Easy to install onto any racing drone
Specifications:
STM32F303MCU, runs BetaFlight firmware ( supports from V3.0 )
Micro SD card slot, supports up to 32GB
MPU6000 gyro / accelerometer via SPI bus
STM32 controls OSD chip over SPI in DMA mode and features a faster rate
Size: 36 x 36 x 15mm
Mounting hole spacing: 30.5mm
Specification
General |
Brand: Flytower
Type: Flight Controller |
|---|---|
Flight Controller |
Flight Controller Type: F3 |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 Continuous Current: 30A Burst Current: 35A Input Voltage: 2 - 4S |
Dimension and Weight |
Package weight: 0.1050 kg
Product size (L x W x H): 3.60 x 3.60 x 1.50 cm / 1.42 x 1.42 x 0.59 inches Package size (L x W x H): 5.00 x 4.60 x 2.50 cm / 1.97 x 1.81 x 0.98 inches |
Package Contents |
Package Contents: 1 x F3 Flight Controller |
