FuriBee Flytower Plus Mini F4 Flight Controller

FuriBee Flytower Plus Mini F4 Flight Controller
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Responsive F4 FC with MPU6000 connected via SPI, 128MB flash
- Integrated with LC filter, 5V 1A BEC, and OSD
- Preloaded with BetaFlight 3.1.0 OMNIBUSF4, supports DShot ESCs
- Supports buzzer, voltage checking, LED and ESC programming
- The latest 4-in-1 BLHeli - S DShot ESC compatible with 2 - 4S LiPo / HV LiPo

Specifications:
General
Continuous current: 4 x 20A
Burst current: 4 x 25A ( 5 seconds )
Mounting hole spacing: 20 x 20mm
Compatibility: racing drones with 80 - 100mm wheelbase

Flight Controller

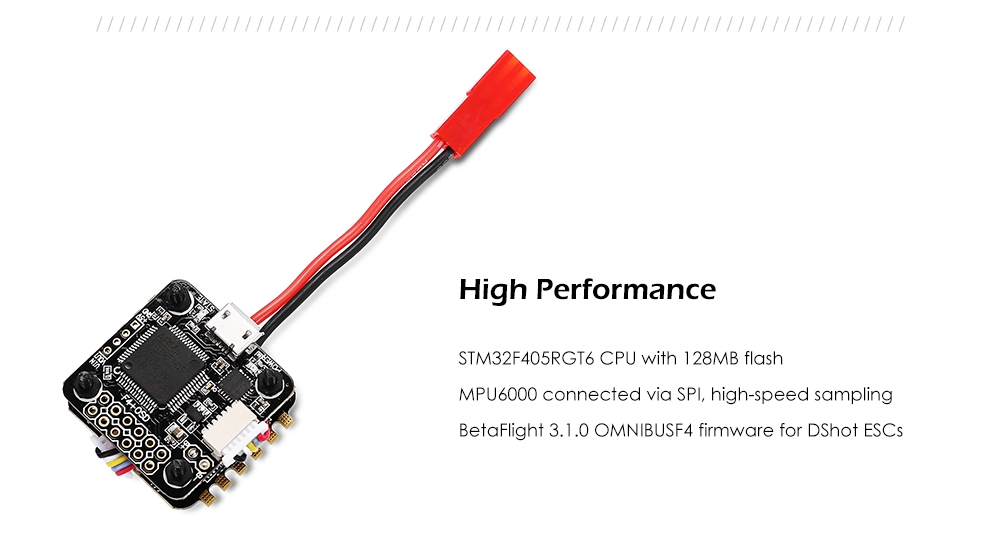

CPU: STM32F405RGT6
IMU: MPU6000 3-axis gyro / accelerometer ( connected via SPI )
Version: 6DOF ( without barometer and electronic compass )
Flash: 128MB
BEC: 5V 1A
Power supply: 2 - 4S LiPo
Receiver support: SBUS / PPM / DSMX
Firmware: BetaFlight 3.1.0 OMNIBUSF4
Dimension: 2.7 x 2.7cm

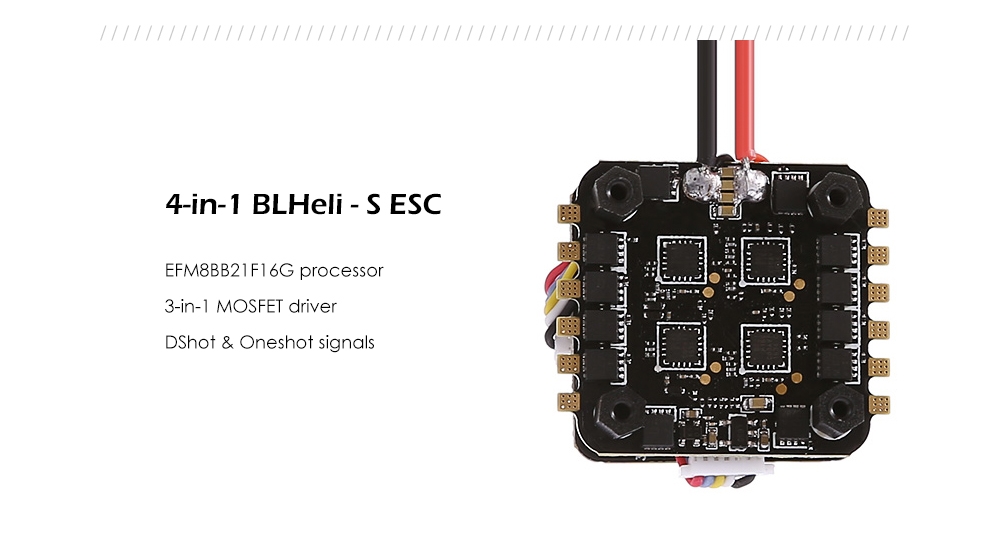

4-in-1 ESC
Power supply: 2 - 4S LiPo / 2 - 4S HV LiPo
Processor: EFM8BB21F16G
MOSFET: TPN2R703NL
Driver: new-generation 3-in-1 MOSFET
Continuous current: 4 x 20A
Burst current: 4 x 25A ( 5 seconds )
BEC: no
Dimension: 2.7 x 3.1cm

Specification

General

Brand: FuriBee
Type: Flight Controller

Flight Controller

Flight Controller Type: F4

Electronic Speed Controller

Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Oneshot125,Oneshot42
Continuous Current: 20A
Burst Current: 25A
Input Voltage: 2 - 4S

Dimension and Weight

Product weight: 0.0090 kg
Package weight: 0.0200 kg
Product size (L x W x H): 2.70 x 3.10 x 1.70 cm / 1.06 x 1.22 x 0.67 inches
Package size (L x W x H): 12.00 x 17.00 x 2.00 cm / 4.72 x 6.69 x 0.79 inches

Package Contents

Package Contents: 1 x Flight Controller
