SIMTOO Dragonfly Drone Pro - RTF

SIMTOO Dragonfly Drone Pro - RTF
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Description:
SIMTOO Dragonfly Drone Pro gives you lighter and smarter flight!
As big as two books when folded, SIMTOO Dragonfly is extremely easy to be put into any of your backpack for an outdoor activity. Since 1.2kg is nearly all you need to take, your bag will be much lighter so your journey will be more delightful.
The creative 8-channel smart GPS watch with a micro joystick makes functions like Auto Take off / Land / Return, Hover, Follow Me, Point of Interest, Panoramic Shot extremely accessible at your fingertips. You would love the awesome transmitter-free operation!

Main Features:
- Innovative 8CH smart GPS watch. You can have an easier access to all the functions and keep your hands off the transmitter.
- 4K UHD aerial photography. 16MP camera, 170-degree FOV, 3-axis gimbal and level 4 - 6 wind resistance are dedicated to clear, wider and smoother shots outdoors.

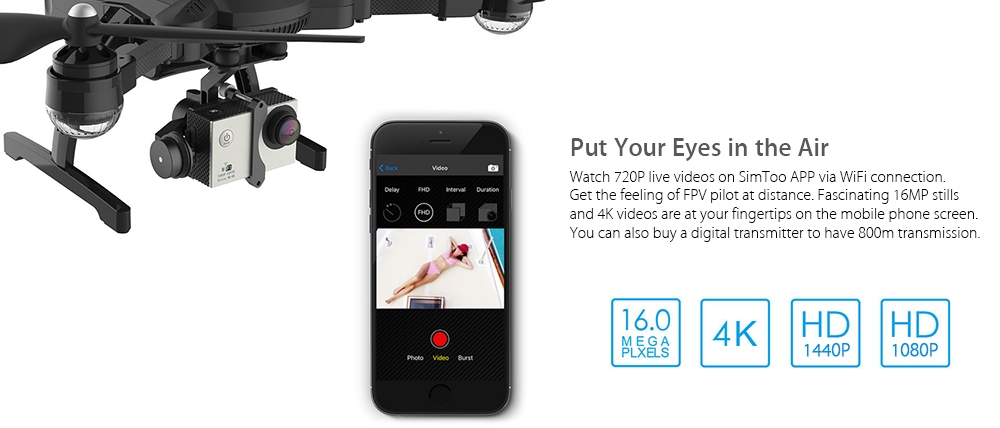

- Real-time 720P HD FPV within 30m. You can also use the APP to edit or modify what you capture and forward it immediately to your favorite social media.
- Easy to control. Follow Me, Point of Interest, Panoramic Shot, Auto Hover, Auto Take off / Land / Return greatly simplifies the operation.
- Dual-mode 2.4GHz 8CH transmitter. 1000km control range, 120m flight height in advanced mode while 50m in normal mode.
- Exceptional portability thanks to foldaway arms. Folded size of 22.5 x 18.5 x 6.5cm, and only 1.2kg including camera, gimbal, battery, propeller.

Click here to how interesting it will be with SIMTOO Dragonfly Drone Pro!

Specifications:
Aircraft
Max. flight time: 25 minutes
Takeoff speed: 5m/s
Landing speed: 3m/s
Max. flying speed: 20m/s ( in advanced mode )
Material: PC airframe with carbon fiber arms
Wingspan: 400mm
Propeller: 9 inch self-tightening propeller
Motor: 2212 100W brushless motor
ESC: 20A
Sensor: gyro / barometer / magnetometer / accelerometer
GPS mode: M8N, supports GPS & GLONASS, max. 16 satellites
Basic functions: Forward / Backward / Leftward / Rightward / Sideward Rotation / Ascend / Descend
Intelligent functions: Auto Take off / Auto Hover / Follow Me / Auto Rotate / Point of Interest / Auto Land / Auto Return Home / Panoramic Shot
Flight height limit: 120m
Max. flight range: 1000m
Max. service altitude: 4000m above sea level
Orbit flight diameter: 10m
Hover accuracy: vertical: + / -0.5m, horizontal: + / -1.0m
Return Home accuracy: 1m from starting point
Follow Me accuracy: error within 1m
Max. takeoff weight: 1500g
Max. payload: 400g
Folded size: 22.5 x 18.5 x 6.5cm
Unfolded size: 32 x 32 x 16cm

Transmitter
Frequency: 915MHz / 433MHz / 2.4GHz
Number of channels: 8
Control range: 1000m
Flight height limit: 120m ( in advanced mode ) / 50m ( in normal mode )
Transmission power: 20dBm, 100mW
Power supply: 3.7V 5200mAh lithium-ion battery ( built-in )
Charge time: 6 hours
Working time: 12 hours with gimbal, 24 hours without gimbal
Mobile device holder: supports up to 6.8 inch

GPS Watch
Frequency: 915MHz / 433MHz
Number of channels: 8
Control distance: 50m
Following distance: 3 - 5m
Following speed: 10m/s
Transmission power: 20dBm
Working voltage: 3.7V
Battery capacity: 500mAh
Charge time: 2 hours
Working time: 1 hour

Battery and Charger
Battery type: 3S LiPo
Capacity: 5200mAh
Voltage: 11.1V
Weight: 400g
Working temperature: 0 to 40 Deg.C
Charger type: balance charger for 3S LiPo
AC input: 100 - 240V 50 - 60Hz
Output: 25W / 2A
Battery charging time: 2 hours
Features: battery level indication, overcharge and over-discharge protection

Mobile APP
APP name: SimToo
Compatible system: iOS 7.1 or later, Android 4.2 or later
Image transmission type: WiFi 2.4GHz
Image transmission quality: 720P
Image transmission range: 30m by 2.4GHz ( 800m by 5.8GHz when extra equipment added )
Transmission power: 100mW
Shooting mode: Burst, Time-lapse, Single Shot, Video

Gimbal
Stabilization: 3-axis ( pitch, roll, yaw )
Control range: pitch: 90 degree; yaw: 90 degree

Camera
Sensor: 1/2.3 inch IMX 206 CMOS
Photo resolution: 16MP
Video resolution: 4K 25fps / 2.7K 15fps / 1440P 30fps / 1080P 60fps / 720P 120fps
FOV: 170 degree
Screen: 2 inch LCD
Photo format: JPG
Video format: MOV
Charge time: 2 hours
Working time: 1 hours
Storage: supports up to 64GB micro SD card
Camera size: 59.27 x 41.13 x 29.28mm

Specification

General

Brand: SimToo
Type: Quadcopter
Model: Dragonfly
Features: Radio Control,WiFi FPV
Motor Type: Brushless Motor
Functions: Camera,Forward/backward,FPV,Hover,Low-voltage Protection,One Key Automatic Return,One Key Landing,One Key Taking Off,Panorama Shot,Point of Interest,Sideward flight,Turn left/right,Up/down,Visual Tracking,WiFi Connection
Diagonal Length: 400mm
Max Flying Height: 120m
Max Speed: 20m/s ( in advanced mode )
Max Ascent Speed: 5m/s
Max Descent Speed: 3m/s
Hover Accuracy: vertical: + / -0.5m; horizontal: + / -1.0m
Night Flight: Yes
Built-in Gyro: 6 Axis Gyro
Material: Carbon Fiber,Electronic Components,PC
Kit Types: RTF
Level: Advanced Level

Connectivity

Remote Control: 2.4GHz Wireless Remote Control,WiFi Remote Control
Channel: 8-Channels
Mode: Mode 2 (Left Hand Throttle)
Detailed Control Distance: About 1000m
Compatible with Additional Gimbal: Yes
FPV Distance: 30m by 2.4GHz WiFi
FPV Screen Resolution: 720P
Transmitter Power: Built-in rechargeable battery

Battery

Battery: 5200mAh 11.1V 3S LiPo ( included )
Flying Time: 20-25min
Charging Time (h): 2 hours

Camera

Camera Pixels: 16MP
Video Resolution: 4K 25fps / 2.7K 15fps / 1440P 30fps / 1080P 60fps / 720P 120fps
External Memory: Micro SD card up to 64GB (not included)

Dimension and Weight

Package weight: 3.645 kg
Package size (L x W x H): 37.00 x 32.00 x 19.00 cm / 14.57 x 12.6 x 7.48 inches

Package Contents

Package Contents: 1 x Aircraft, 1 x Transmitter, 1 x GPS Smart Watch, 1 x 3-axis Gimbal, 1 x 4K Camera, 1 x 5200mAh 11.1V 3S LiPo Battery, 1 x 8GB Micro SD Card, 1 x Hardshell Case

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Note:
Product photography is for illustration only. The product sold may have minor physical differences depending on manufacturer specifications, production batch, etc. Customers should carefully consider this before purchase.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
