Main Features:

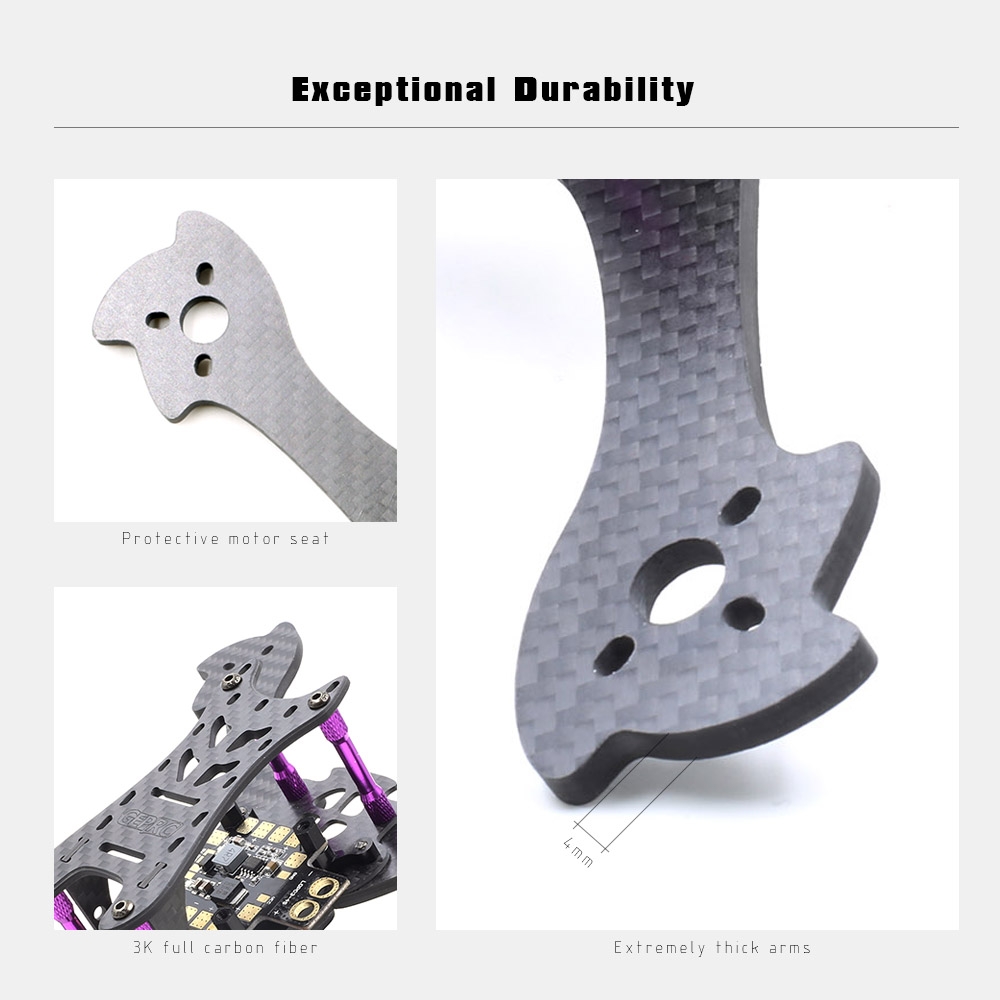

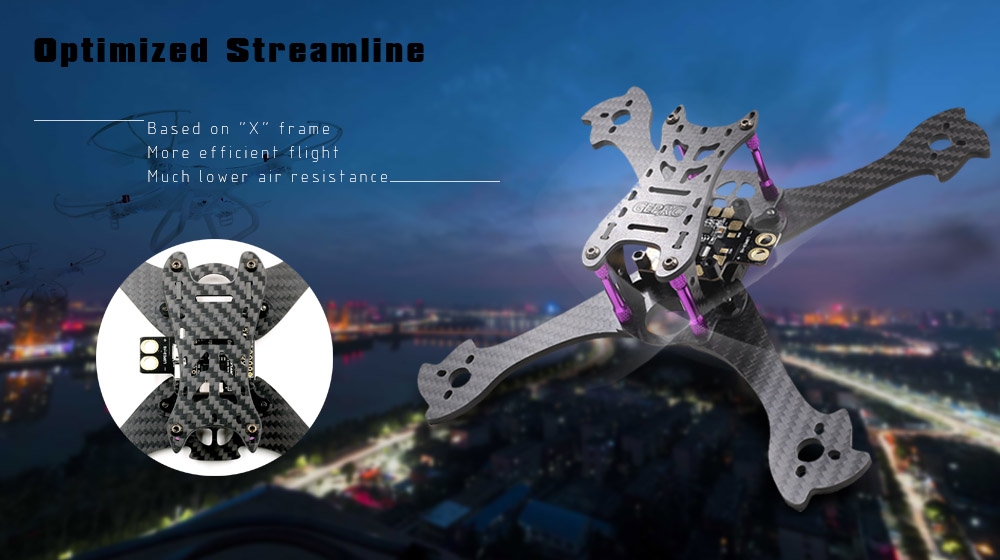

- Well-improved FPV 4-axis frame kit, based on true "X" frame but not symmetrical
- The perfect streamlined body reduces the air resistance with narrowest part subject to the strongest wind
- 35mm wide space at the center for players to install electronics
- Compatible with HS1177, HS1190, Swift, OWL Plus and other lenses
Specifications:
Model: Mark 1
Weight: 102g
Wheelbase: 210mm
Arm thickness: 4mm
Lateral panel thickness: 3mm
Top plate thickness: 1.5mm
Lower plate thickness: 2mm
PDB: with 5V 3A / 12V 500mA BEC
Recommended Parts:
Flight controller: F3 / Naze32 / CC3D
Motor: 2204 / 2205 / 2206 / 2305 / 2306
ESC: 20 - 30A
Propeller: 5 inches
Battery: 3 - 4S 1300mAh
Note:
Neither the flight controller nor the camera is included.
Specification
General |
Brand: GEPRC
Type: Frame Kit |
|---|---|
Dimension and Weight |
Product weight: 0.1020 kg
Package weight: 0.2400 kg Product size (L x W x H): 19.00 x 19.00 x 3.50 cm / 7.48 x 7.48 x 1.38 inches Package size (L x W x H): 20.00 x 10.00 x 2.00 cm / 7.87 x 3.94 x 0.79 inches |
Package Contents |
Package Contents: 1 x Carbon Fiber Frame, 1 x PDB, 1 x Battery Strap, 1 x Pack of Accessories |
