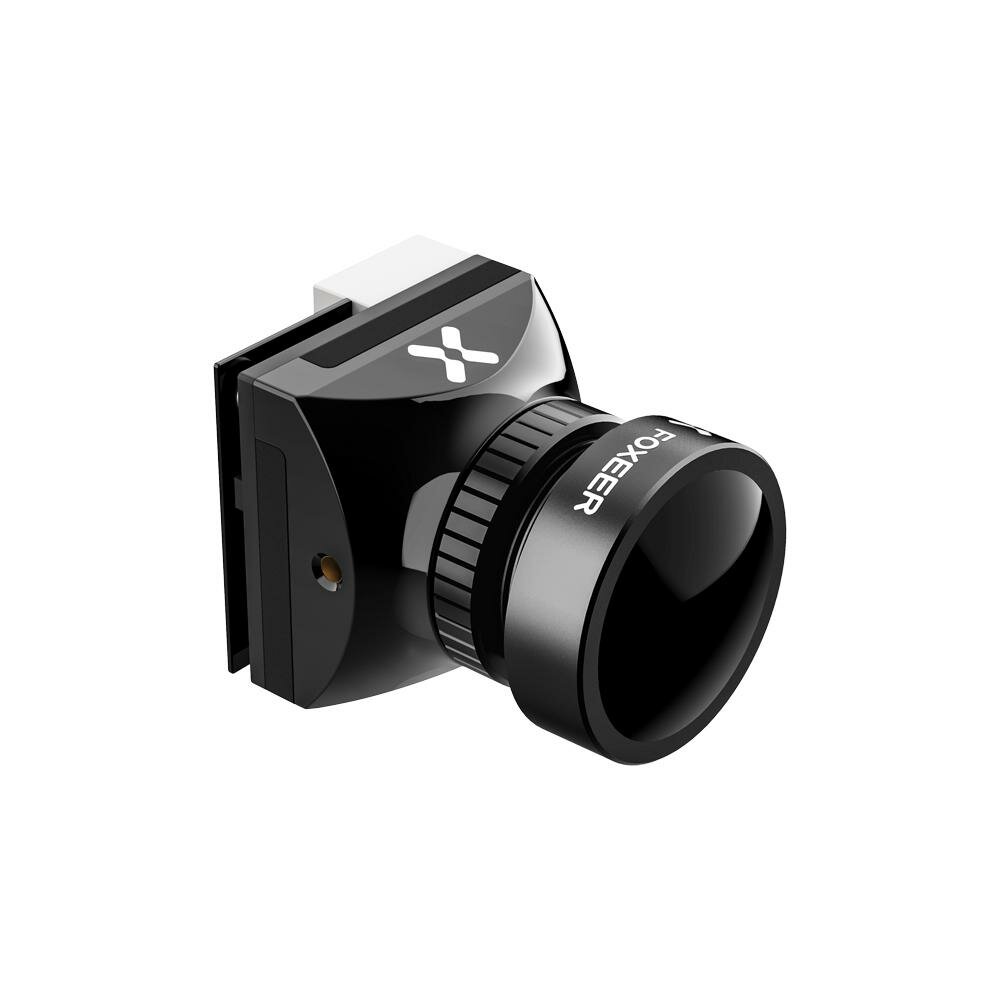

Foxeer Cat 2 Micro StarLight FPV Camera - DataSheet
| Basic Information | |
|---|---|
| Application | FPV StarLight camera |
| Width | 15.9 |
| Height | 14.8 |
| Depth | 14.8 |
| Weight | 10.5gr |
| Protective case is included | yes |
| Retail Price | 45.99$ |
| Release date | 2020-03 |
| Brand | Foxeer |
| Sensor Type | 1/3" CMOS |
| Scale | 4:3/16:9 Switchable |
| TV System | PAL/NTSC Switchable |
| Resolution | 1200TVL |
| Shutter Speed | PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec |
| Dimensions (mm) | 18.7x18.7 |
| TVL | 1200 |
| FOV | 4:3: FOV-H 85°, FOV-D 105°; 16:9: FOV-H 115°, FOV-D 145° |
| Lens | 2.1 Low Light |
| Audio | no |
| Image Sensor | 1/3" |
| Inputs and Outputs | |
| Power | DC 4.6-24V,230mA±15%@DC5V,100mA±15%@DC12V |
| Features | |
| Min. Illumination | 0.0001ux Starlight B/W, 0.0005lux Color |
| White Balance | Auto |
| WDR | yes |
| Day / Night Shift | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Language | English/Chinese |
| Working Temperature | -10℃ ~ +50℃ RH90% MAX |
| Working Humidity | 20~80% |
| Resources | |
| Link | Buy from Banggood |
