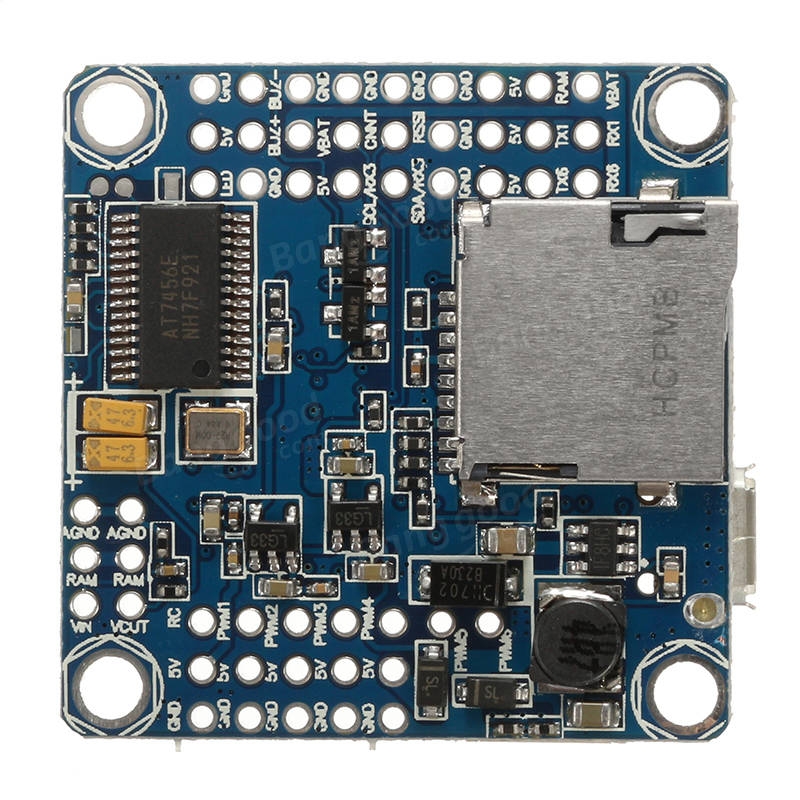

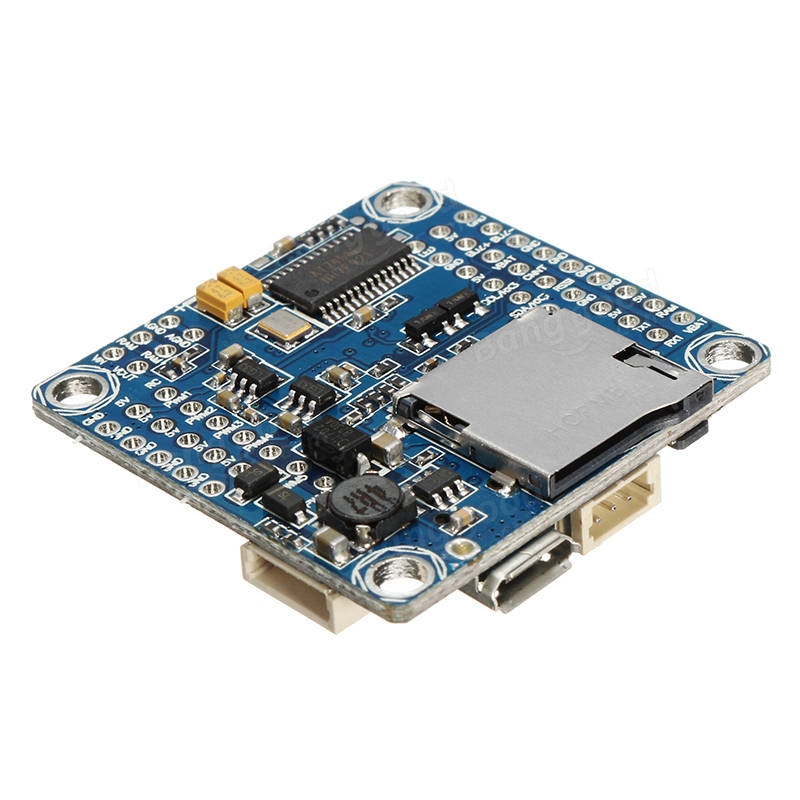

Omnibus F4 Pro V3 - DataSheet

Basic Information
Form Factor 30,5 x 30,5 mm
Application General use
Width 36.0 mm
Height 8.0 mm
Depth 36.0 mm
Weight 7.0 g
Protective case is included No
Retail Price US$ 27.00
Release date Jun 2017
Integrated Circuits
CPU Family F4
CPU Model STM32F405
Main MPU MPU6000
Auxiliar MPU No
Barometer BMP280
Compass No
Inputs and Outputs
PWM Outputs 6
Number of UARTs (total) 3
Inverted UARTs 1
SoftSerial Inputs 1
I2C input Yes
Buzzer output Yes
LED Strip Output Yes
Current Sensor Analog Input Yes
RSSI Analog Input Yes
VBAT Input Yes - Up to 6S (25V)
Shared UART with USB No
Racing Transponder Led Output No
Features
Has 5V voltage regulator Yes - 3A
Soft mounted gyro No
Soft mounted corners No
Has OSD Yes - Native
Onboard current sensor No
Has SD Card Slot Yes
Internal Memory for Blackbox 0MB
Has PDB No
Has VTX No
Has 4 in 1 ESCs No
Integrated Radio Receiver No
Resources
BetaFlight Target OMNIBUSF4SD
InavFlight Target OMNIBUSF4V3
