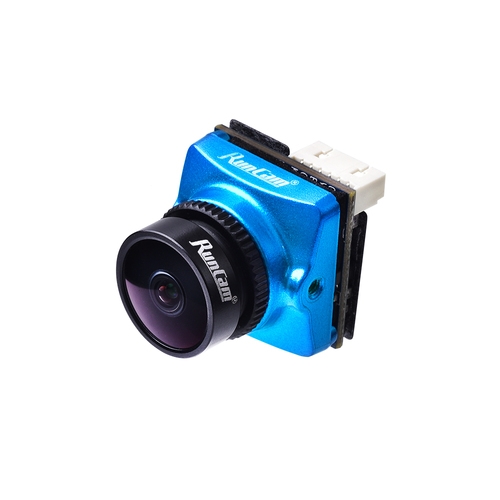

RunCam Phoenix Oscar Edition - DataSheet
| Basic Information | |
|---|---|
| Application | FPV Camera |
| Weight | 9g |
| Brand | Runcam |
| TV System | 4:3 / 16:9 switchable |
| Resolution | 1000TVL |
| Shutter Speed | Auto |
| Dimensions (mm) | 19mm*19mm*20mm |
| Lens | 2.5mm (M12) FOV140° (4:3) |
| Image Sensor | 1/3" 120dB WDR Sensor |
| Inputs and Outputs | |
| Current Sensor Analog Input | 220mA@5V / 120mA@12V |
| Power | DC 5-36V |
| Features | |
| Has OSD | Yes |
| Min. Illumination | [email protected] |
| WDR | D-WDR |
| Day / Night Shift | Color/Auto/B&W |
| Resources | |
| Link | Buy from Banggood |
| Integrated Circuits | |
| S/N Ratio | >50dB (AGC OFF) |
| Auto Gain Control (AGC) | Auto |
