Description:
ASUAV F200 200mm FPV racing drone is sure to offer you the extraordinary FPV racing experience. The UAV uses four T - MOTOR F40II 2600KV brushless motors, so even after you attach a 200g battery onto it, the thrust-to-weight ratio can still be more than 10:1. The 4-in-1 BLHeli - S 20A ESC supports the latest DShot digital signals and up to 4 x 40A burst current, ensuring the linear motor response and thrilling freewheeling. Along with the RunCam Swift 2 camera, you are going to have the unprecedented sensation.
Main Features:

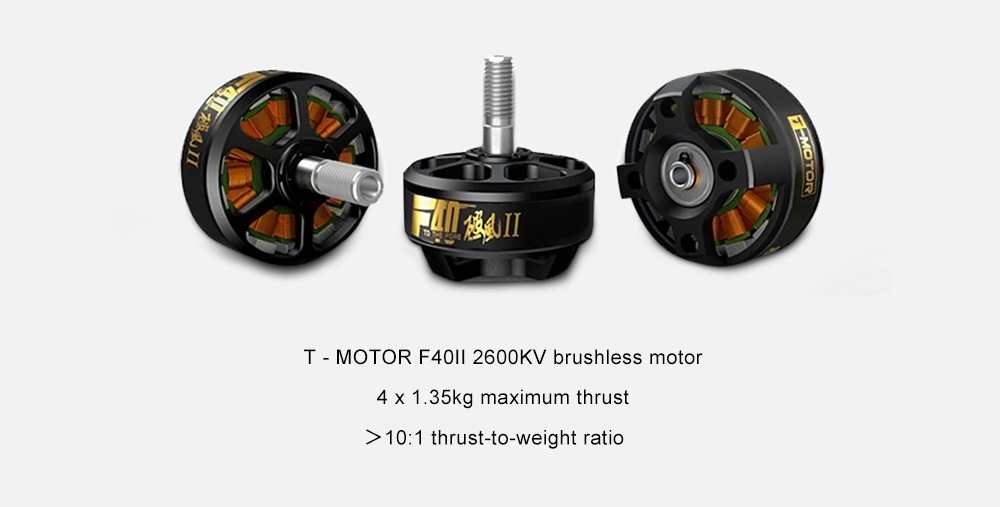

â Each of the T - MOTOR F40II 2600KV high-torque brushless motors generates up to 1.35kg thrust for breathtaking flight

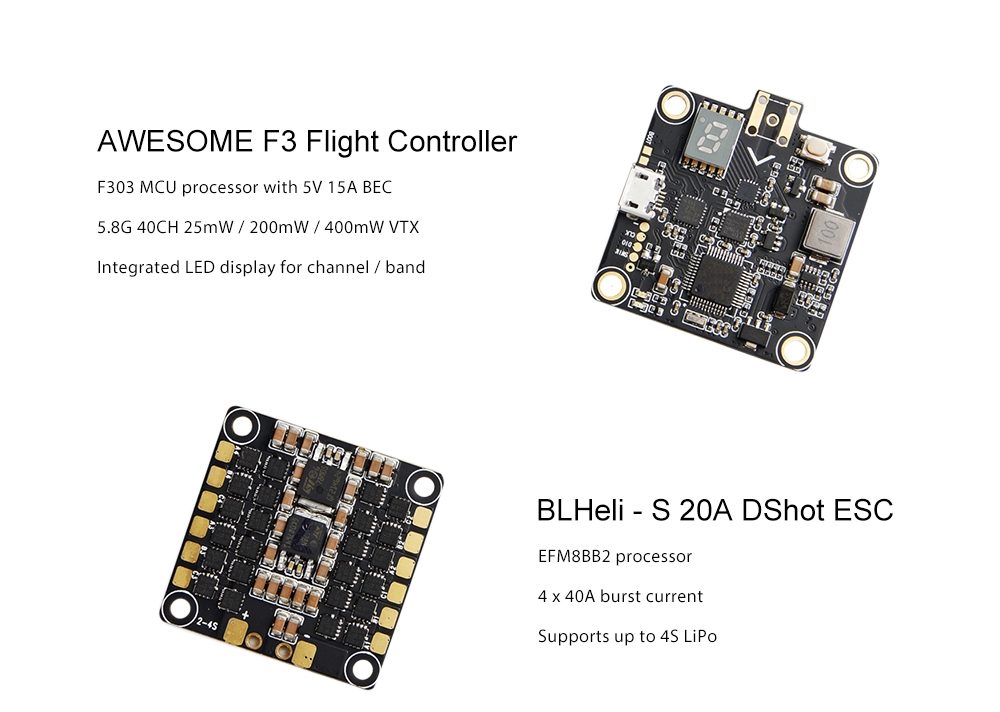

â Excellent 4-in-1 BLHeli - S 20A DShot ESC, supports maximum voltage input of 4S LiPo and up to 4 x 40A large current
â AWESOME F3 flight controller with F303 MCU, 5V 15A BEC, integrated 5.8G 40CH 25mW / 200mW / 400mW VTX and LED display

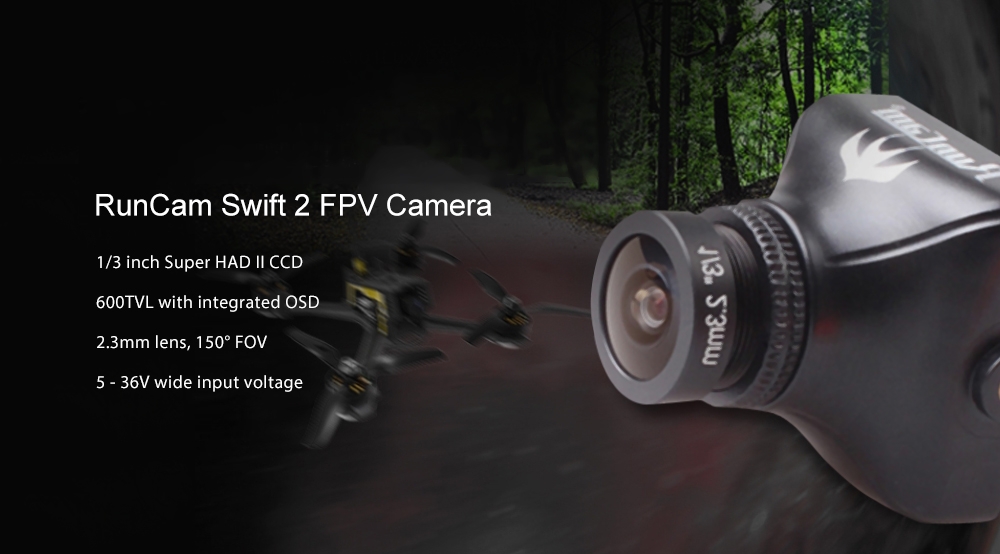

â Popular RunCam Swift 2 600TVL FPV camera, 150-degree wide angle lens dedicated for immersive FPV racing
Specifications:
Wheelbase: 200mm

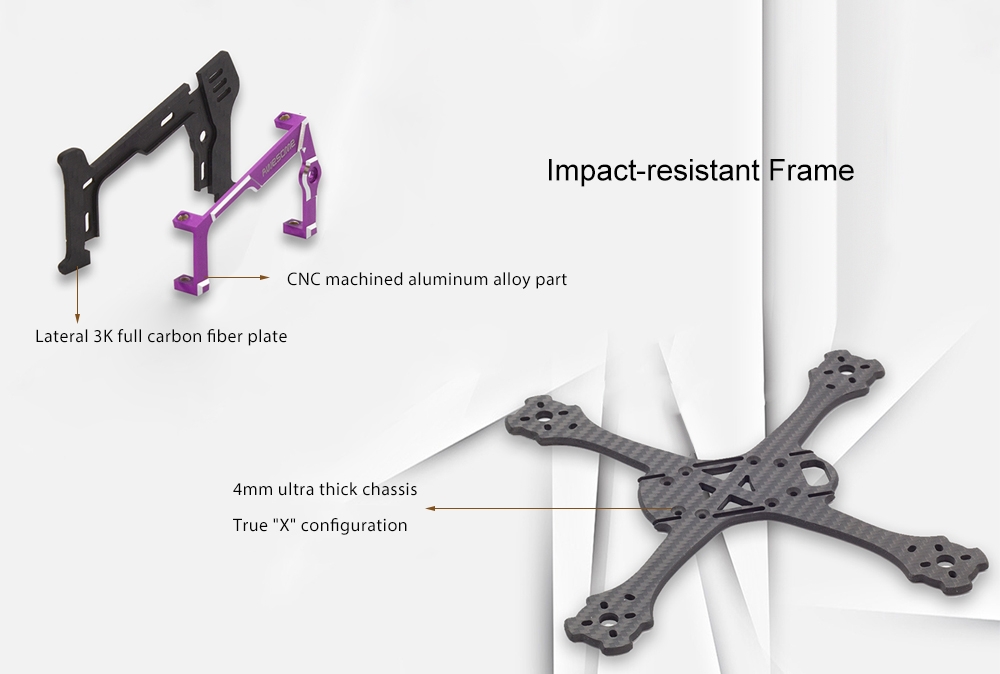

Carbon fiber chassis thickness: 4mm
Weight: 270g ( without battery )
Brushless motor: T - MOTOR F40II 2600KV
Brushless ESC: BLHeli - S 20A DShot
Flight control system: AWESOME F3
Propeller: 5042 three-blade
Camera: RunCam Swift 2 600TVL
Lens: 2.3mm 150-degree FOV
Video transmitter: 5.8GHz 40CH 600mW
Image transmission distance: 500m
Specification
General |
Brand: ASUAV
Type: Frame Kit Version: PNP |
|---|---|
Motor |
Model: F40II
Motor Type: Brushless Motor KV: 2600 Maximum Thrust: 1.35kg / piece |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Video Resolution: 600TVL ( horizontal )
Video Standards: PAL Sensor: CCD |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 Input Voltage: 4S |
Dimension and Weight |
Product weight: 0.2700 kg
Package weight: 0.7800 kg Product size (L x W x H): 17.80 x 17.80 x 5.00 cm / 7.01 x 7.01 x 1.97 inches Package size (L x W x H): 22.00 x 22.00 x 8.00 cm / 8.66 x 8.66 x 3.15 inches |
Package Contents |
Package Contents: 1 x Frame Kit, 1 x Flight Control System, 4 x Motor, 8 x Propeller, 1 x FPV Camera, 1 x Antenna |
