Main Features:
STM32F303CCT6 32-bit MCU
MPU6000 gyro / accelerometer
Power supply: 2 - 3S LiPo
BEC: 5V 500mA
Programmable LED board
Supports ESC configuration via BLHeli Suite
Built-in voltage tester and alarm
Specifications:

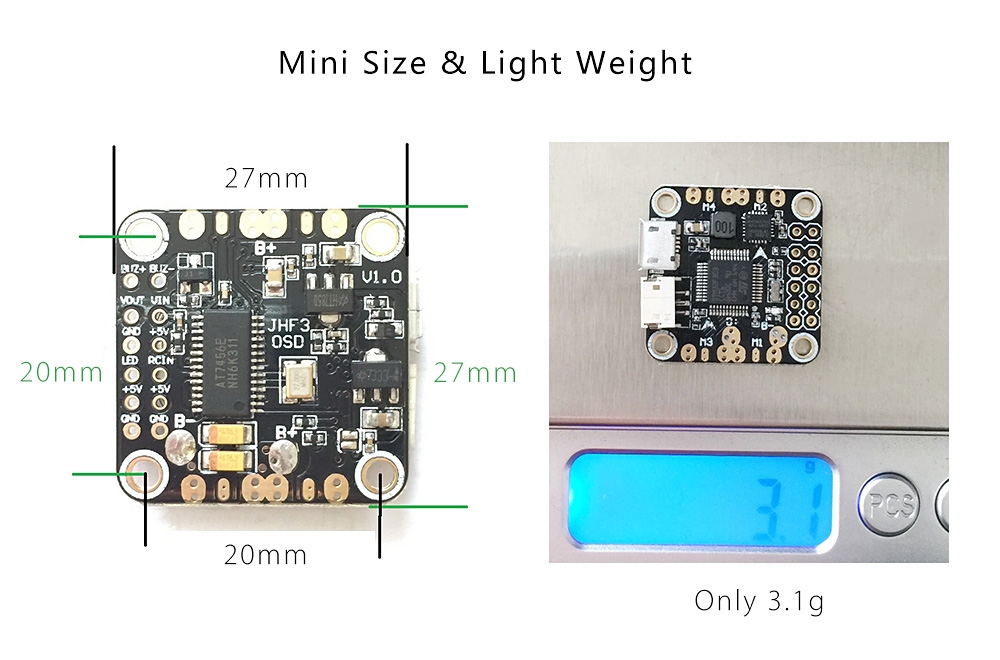

Dimension: 27 x 27mm
Mounting hole spacing: 20mm
Weight: 3.1g
Firmware: BetaFlight 3.0.1 OMNIBUS ( can be driven by DShot ESC )
Compatible Receivers:
Spektrum 1024 / 2048, SBUS, XBUS, SumD and SumH receivers
3.3V Spektrum satellite receivers
PPM receivers
Note:
If you want to connect it with the SBUS or DSM receiver, please use RX3 as the input port. Please ensure 3.3V voltage input for your DSM satellite receiver; or 5V voltage input for SBUS or PPM receiver.
Specification
General |
Brand: Aurora RC
Type: Flight Controller |
|---|---|
Dimension and Weight |
Package weight: 0.026 kg
Package size (L x W x H): 12.00 x 17.00 x 1.00 cm / 4.72 x 6.69 x 0.39 inches |
Package Contents |
Package Contents: 1 x Flight Controller |
