AWESOME TS - 195 195mm FPV Racing Drone DIY Kit - PNP

AWESOME TS - 195 195mm FPV Racing Drone DIY Kit - PNP
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Two sets of 3.5mm thick carbon fiber arms, including flat ones and 28-degree curved ones
- New lightweight carbon fiber, 30% lighter than the traditional material
- True "X" configuration with perfect center of mass, i.e., great maneuverability

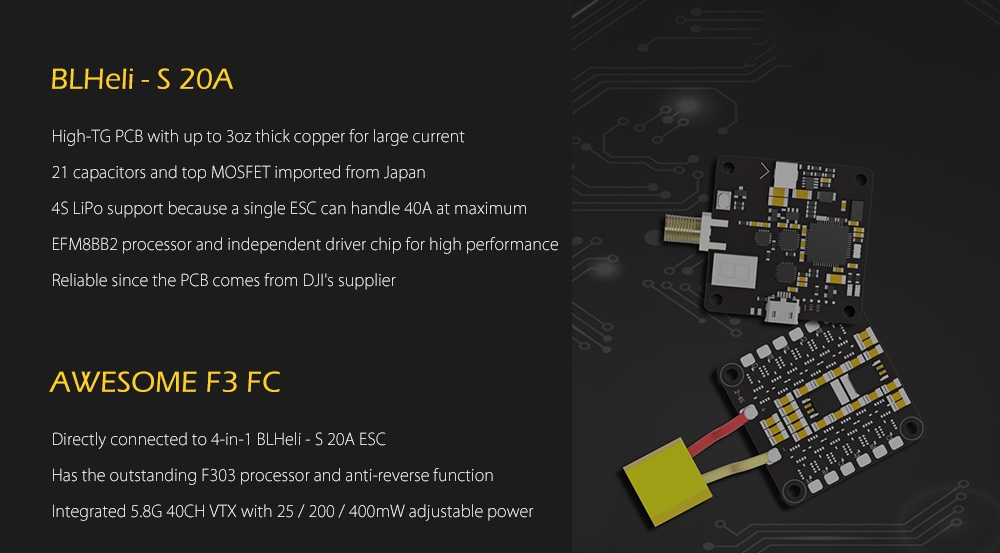

- F3 flight control system with integrated 5.8G VTX and 4-in-1 BLHeli - S ESC
- 5.8G real-time image transmission, 40-channel wide coverage, 25 / 200 / 400mW switchable
- Its 800TVL HD CCD camera has 40-degree adjustable angle and supports low illumination

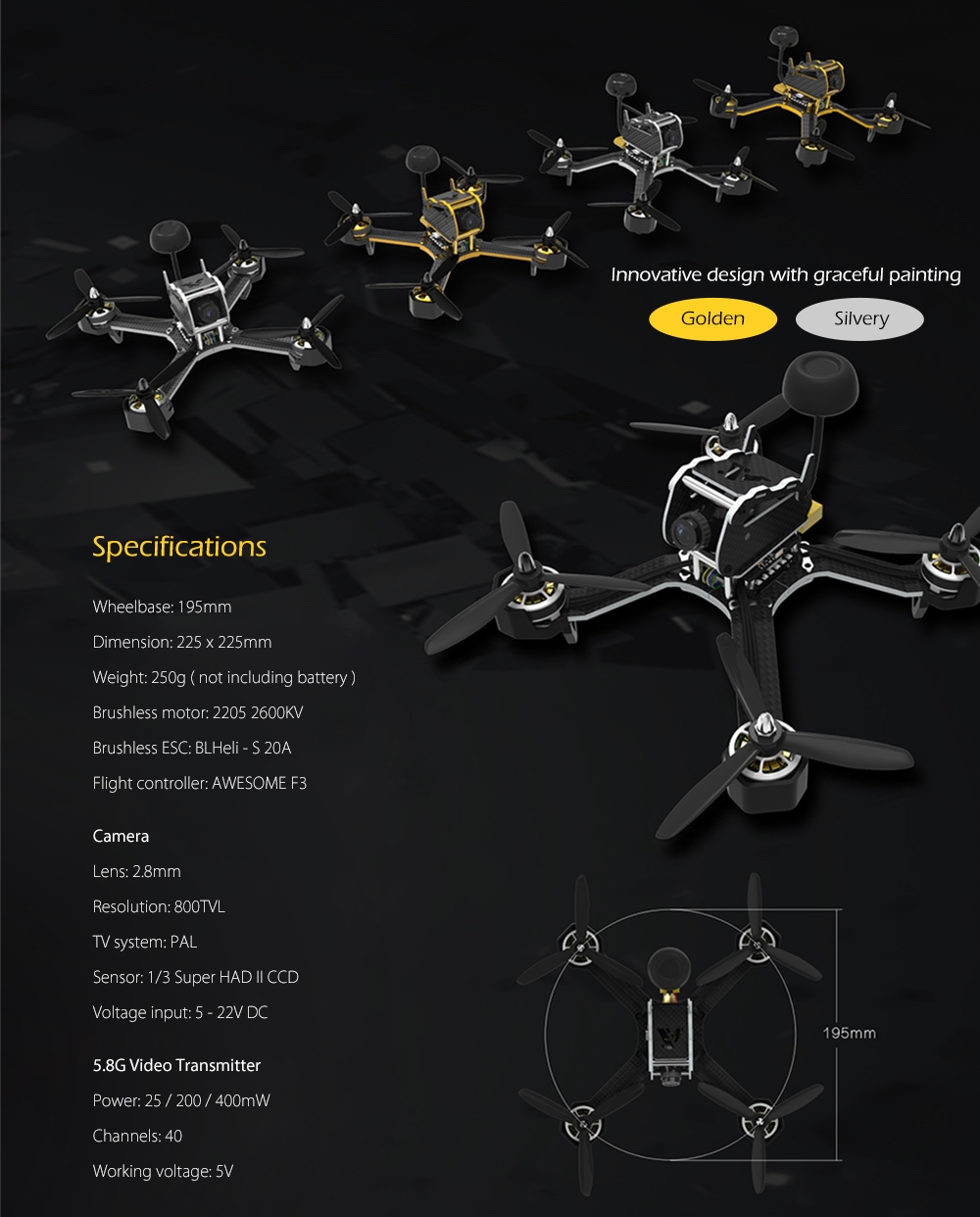

Specifications:
General
Wheelbase: 195mm
Arm thickness: 3.5mm
Weight: 250g ( not including battery )
Brushless motor: 2205 2600KV
Brushless ESC: 4-in-1 BLHeli - S 20A
Flight controller: AWESOME F3

Video Transmitter
Frequency: 5.8GHz
Channels: 40 ( including RaceBand )
Power: 25 / 200 / 400mW switchable

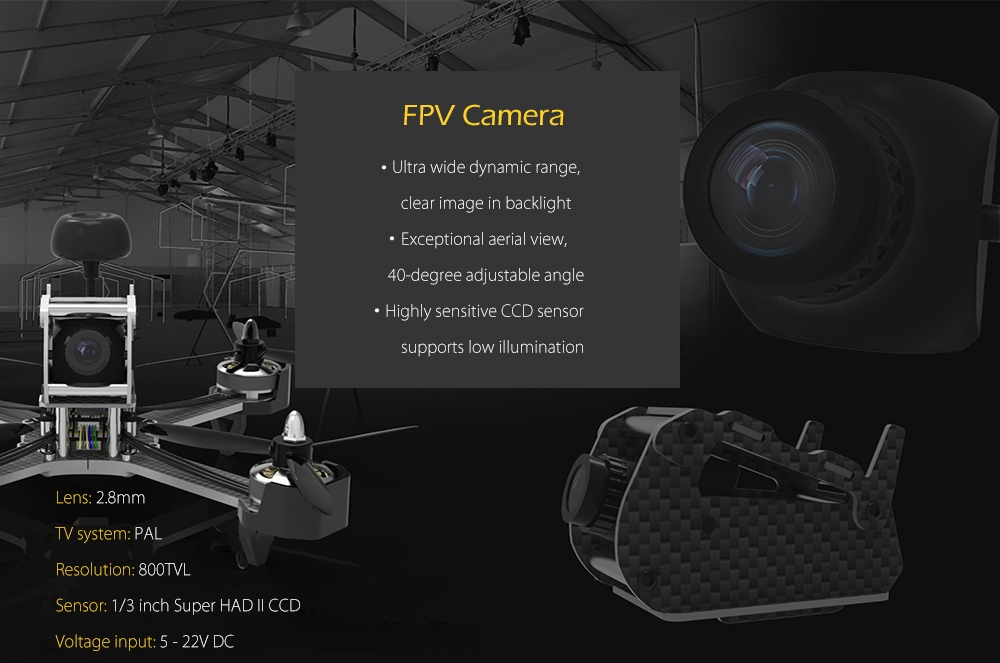

Camera
Lens: 2.8mm
Resolution: 800TVL
TV system: PAL
Sensor: 1/3 Super HAD II CCD
Power input: 5 - 22V DC

Specification

General

Brand: AWESOME
Type: Frame Kit
Version: PNP

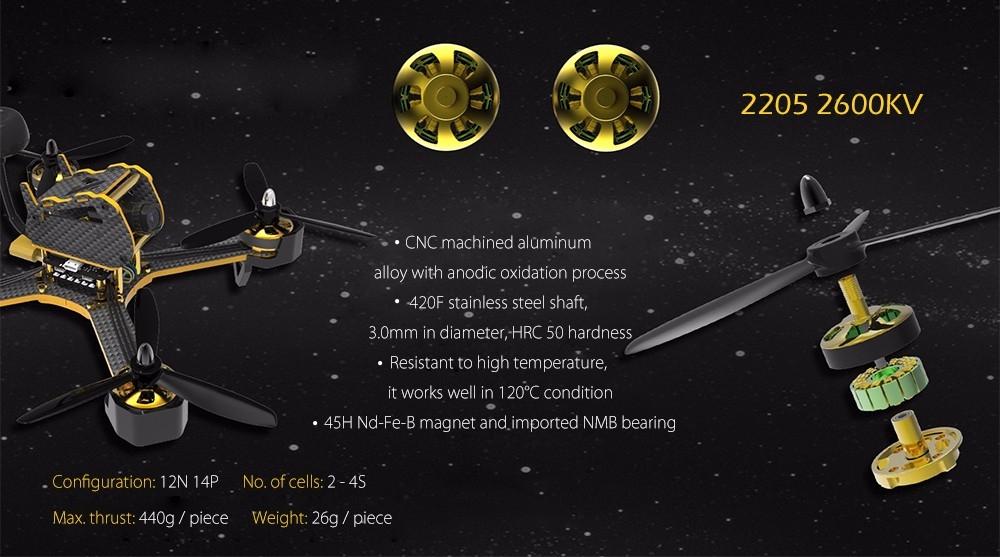

Motor

Model: 2205
Motor Type: Brushless Motor
KV: 2600
Configuration: 12N 14P
No. of Cells: 2 - 4S LiPo
CW / CCW: CCW,CW
Maximum Thrust: 440g / piece

Flight Controller

Flight Controller Type: F3

Camera

Video Resolution: 800TVL ( horizontal resolution )
Video Standards: PAL
Sensor: CCD

Electronic Speed Controller

Firmware: BLHeli-S
Continuous Current: 20A

Dimension and Weight

Product weight: 0.2500 kg
Package weight: 0.3500 kg
Product size (L x W x H): 22.50 x 22.50 x 10.00 cm / 8.86 x 8.86 x 3.94 inches
Package size (L x W x H): 22.50 x 19.00 x 5.50 cm / 8.86 x 7.48 x 2.17 inches

Package Contents

Package Contents: 4 x Flat Arm, 4 x Curved Arm, 1 x Body Frame, 4 x Motor, 4 x Motor Protective Frame, 1 x Flight Controller, 1 x 4-in-1 BLHeli - S 20A ESC, 1 x FPV Camera, 1 x Antenna, 8 x 5045 Tri-blade Propeller, 1 x Pack of Accessories
