Main Features:
- 5.8G real-time image transmission for more than 1,500m with 500mW output

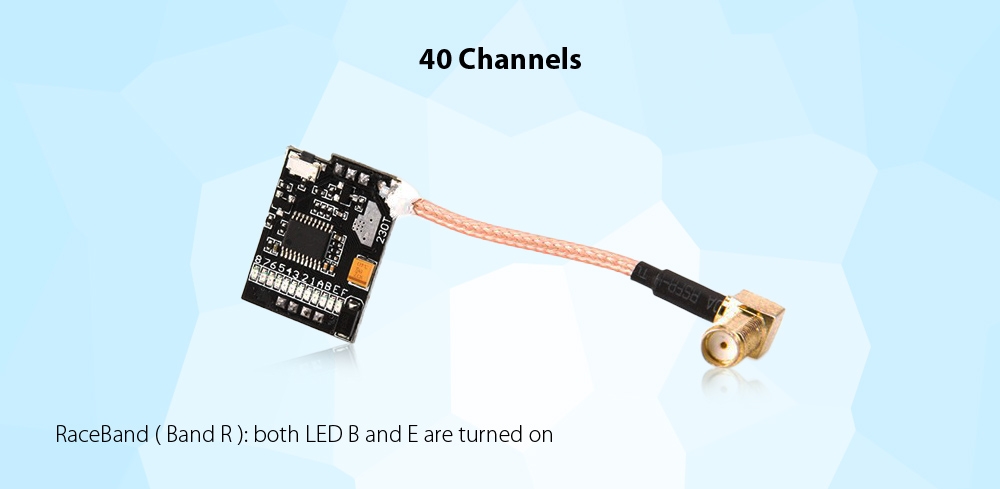

- 40-channel coverage, including RaceBand; LED indicators for channels / bands
- Comes with an omnidirectional 2dBi mushroom antenna
- Small and light, it is an ideal choice for RC FPV racing drones DIY
Specifications:
Frequency range: 5645 - 5945MHz
Output power: 200mW / 500mW
Transmission range: more than 1,500m ( in open air )
LED indication: channel / band
Modulation: FM
Video format: NTSC / PAL
Output impedance: 50 ohm
Channels: 40
Operating voltage: 3.7 - 5.2V
Input voltage: 300mA
Operating temperature: -10 to 85 Deg.C
VF bandwidth: 0 - 8.0MHz
Audio carrier frequency: 6.5MHz
Video input: 0.8 - 1.2Vp-p
Video input impedance: 75 ohm
Audio input: 0.5 - 2.0Vp-p
Audio input impedance: 10,000 ohm
Transmitter connector: SMA female
Antenna connector: SMA male
Size: 25 x 18.5 x 6mm
Weight: 6.84g ( not including antenna )
Specification
General |
Brand: BEEROTOR
FPV Equipments: AV Transmitter,Transmitter |
|---|---|
FPV System |
Image Transmission Power: 200mW / 500mW
Antenna Type: with SMA male connector |
Dimension and Weight |
Package weight: 0.053 kg
Product size (L x W x H): 2.50 x 1.85 x 0.60 cm / 0.98 x 0.73 x 0.24 inches Package size (L x W x H): 15.00 x 10.00 x 4.00 cm / 5.91 x 3.94 x 1.57 inches |
Package Contents |
Package Contents: 1 x Transmitter, 1 x 2dBi Mushroom Antenna |
