Highlights
- FPV 5.8G 400mW AV transmitting module, a wonderful choice for avoiding interference for who using 2.4G radio system
- Dimension and weight is similar to 200mw TX, yet the range is extended.
- Compare to the 500mw version which with cooling fan installed, the 400mw version is lighter, and consuming less power (longer in-air time).
- Also eliminated vibration to video transmitting system caused by cooling fan.
- The 400mw version is a well balanced solution among weight, dimension, range, power consumption etc.
Specification
| General | |
|---|---|
| Type | Transmitter |
| Model | Boscam TS353 |
| Video Format | NTSC/PAL |
| Working Frequency | 5645-5945Mhz |
| Receiver Antenna Connection | SMA-pin |
| Power Input | 7-15V (3S Lipo suggested, does NOT support 4S Lipo) |
| Transmitting Current | 220mA |
| Dimension | 55 x 26 x 17mm (excluding antenna) |

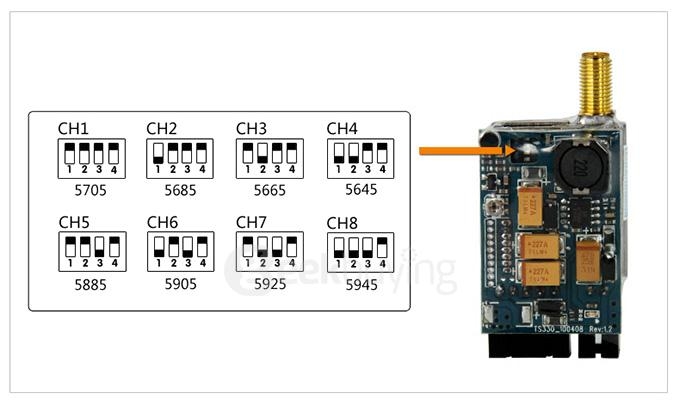

| Working Frequency | CH1: 5705 CH2: 5685 CH3: 5665 CH4: 5645 CH5: 5885 CH6: 5905 CH7: 5925 CH8: 5945 |

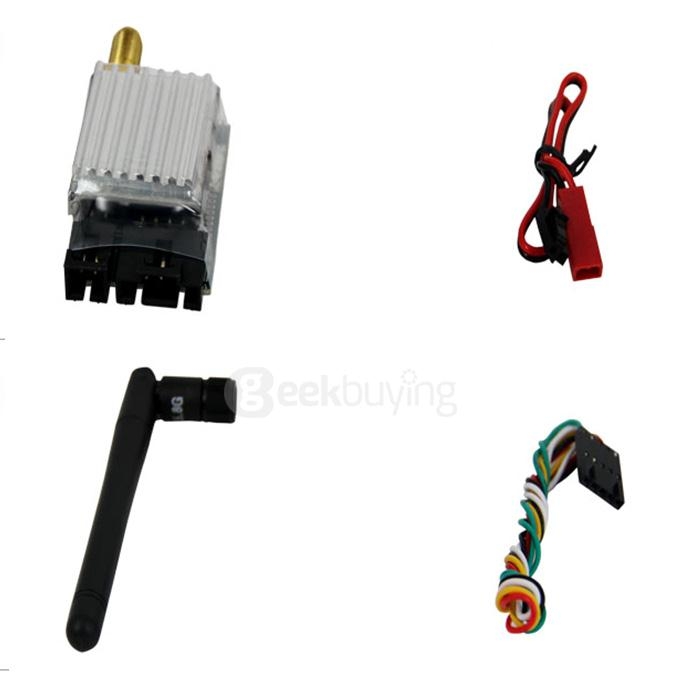

| Package Contents | |
| 1 x transmitter | |
| 1 x TX antenna | |
| 1 x wire | |
