Specification
| General | |
|---|---|
| Type | Wireless Receiver |
| Model | RC305 |
|
Channels |
8 |
| Receiver Operating Voltage | 5V - 12V DC |
| Operating Temperature | -10~85 Degrees |
| Video | Video bandwidth: 0~8.0MHz Video input level: 0.8~1.2Vp-p Video input impedance: 75Ohm |
| Audio | Audio input level: 0.5~2.0Vp-p Audio input impedance: 10K/Ohm Audio frequency: 6.5MHz |
| Receiver Antenna Connector | RP-SMA |
| Dimensions/Weight | Dimensions: 61x52x13mm Weight: about 43g |
| Working Frequency | CH1: 5705 CH2: 5685 CH3: 5665 CH4: 5645 CH5: 5885 CH6: 5905 CH7: 5925 CH8: 5945 |

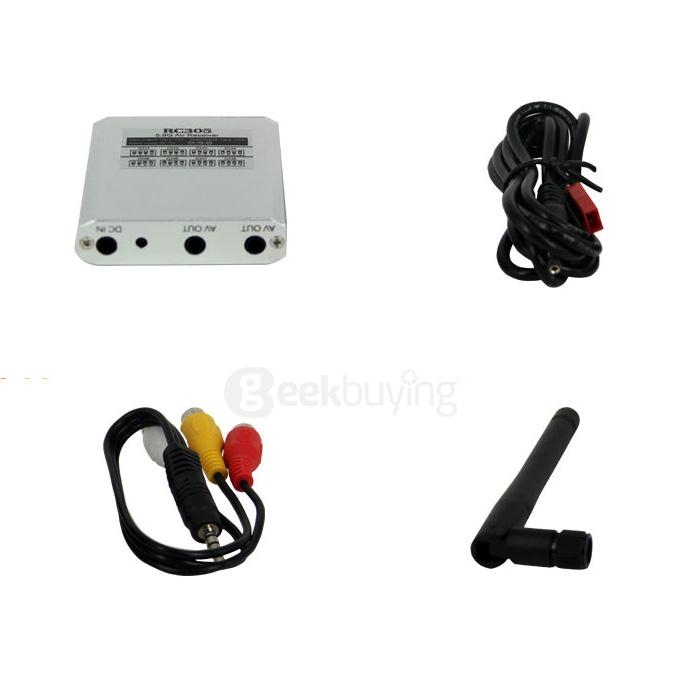

| Package Contents | |
| 1 x RC305 Receiver | |
| 1 x Antenna | |
