Main Features:

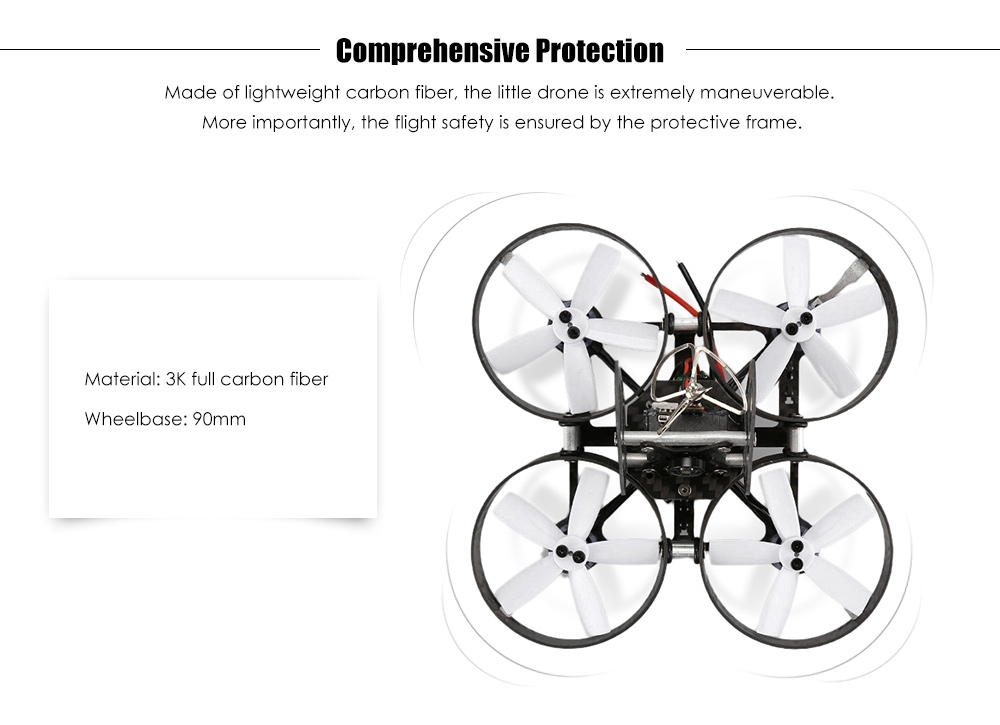

- Impact-resistant 3K full carbon fiber body, protective frame for all the components

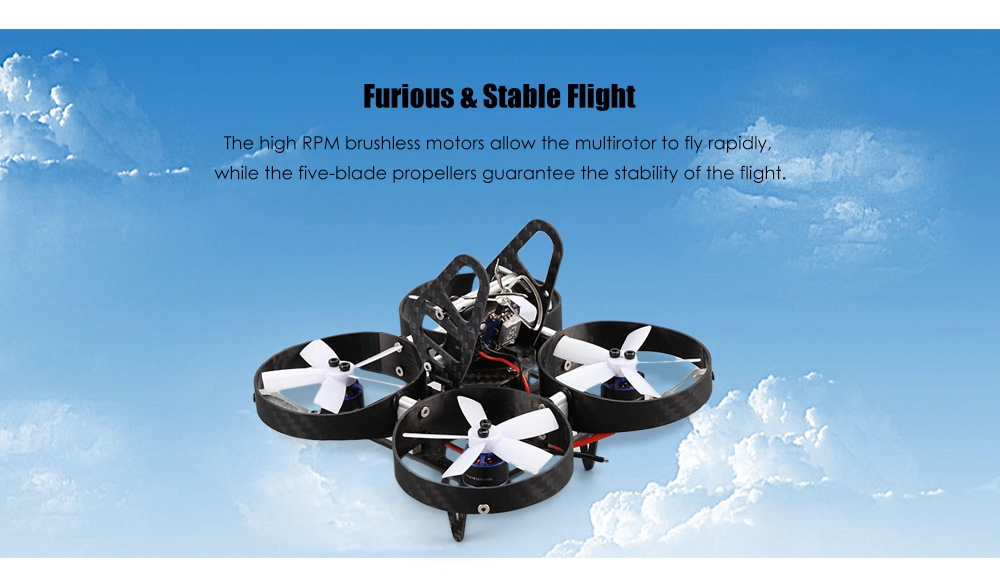

- Stable flight at 80km/h with 1106 7500KV brushless motors and 55mm five-blade propellers
- Dedicated PIKO F3 flight controller with super mini size supports PPM, DSM, SBUS receivers

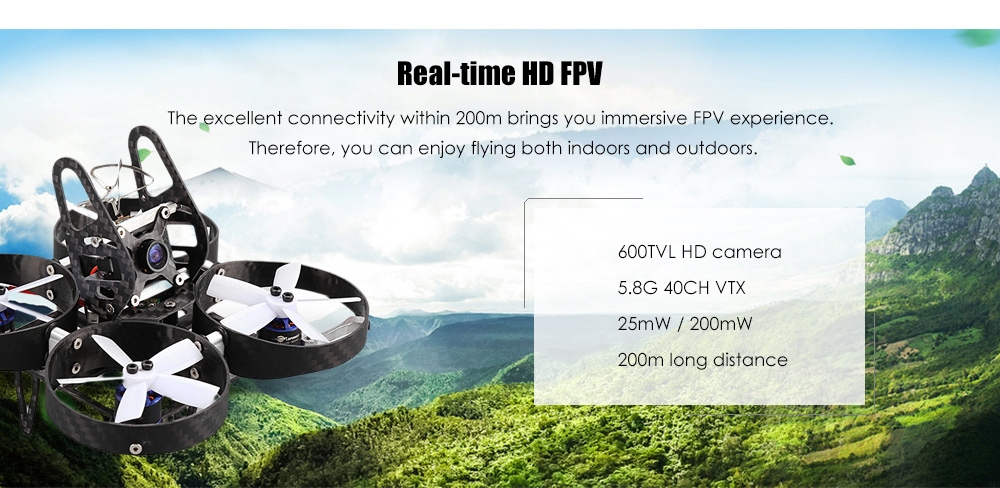

- AIO FPV camera integrates 600TVL mini camera, 5.8G 40CH 25mW / 200mW video transmitter
Specifications:
Wheelbase: 90mm
Max. speed: 80km/h
Flight controller: PIKO F3 ( supports PPM, DSM, SBUS )

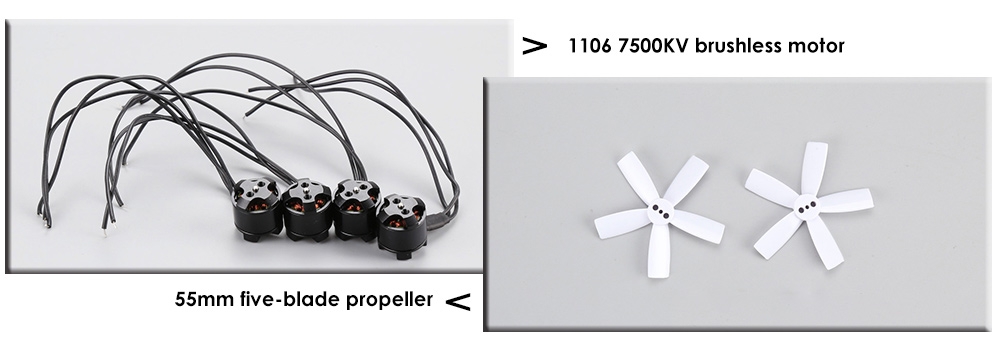

Brushless motor: 1106 7500KV
Camera: 600TVL HD
Video transmitter: 5.8G 40CH 25mW / 200mW
Image transmission distance: 200m
Propeller: 55m five-blade
Battery: 550mAh 7.4V 2S LiPo ( included )
Flight time: 4 minutes
Charge time: 20 minutes
Assembly: DIY
Material: carbon fiber, ABS, electronic components
Flying environment: indoor / outdoor
Specification
General |
Brand: CORETEXRC
Type: Frame Kit Version: KIT |
|---|---|
Motor |
Model: 1106
KV: 7500 CW / CCW: CCW,CW |
Remote Controller Specifications |
Mode: No Transmitter
FPV Distance: 200m |
Camera |
Video Resolution: 600TVL |
Battery |
Battery (mAh): 550mAh 7.4V 2S LiPo ( included )
Flying Time: 4mins Charging Time (h): 20mins |
Dimension and Weight |
Product weight: 0.122 kg
Package weight: 0.225 kg Product size (L x W x H): 15.00 x 5.00 x 10.00 cm / 5.91 x 1.97 x 3.94 inches Package size (L x W x H): 18.00 x 6.40 x 12.00 cm / 7.09 x 2.52 x 4.72 inches |
Package Contents |
Package Contents: 1 x Frame Kit, 1 x PIKO F3 Flight Controller, 4 x Motor, 1 x FPV Camera, 1 x 550mAh 7.4V 2S LiPo Battery, 4 x Propeller, 1 x Non-slip Pad, 1 x USB Charging Cable, 4 x Motor Ring, 1 x Set of Battery Fittings, 1 x Pack of Screws |
