Highlights
FLY WITH TAP
- Flying is easy for everyone. Double tap the screen to fly. An Obstacle Sensing System keeps the Phantom safe as it goes, and Smart Return Home returns it to you more safely.
VISUAL TRACKING
- ActiveTrack lets you track a subject automatically, no band or beacon required, or you may re-select a subject to frame a different shot. Moving POI lets everyone shoot previously impossible shots.
SPORT MODE
- A brand new Sport mode brings responsive controls and the thrill of speed everywhere. An integrated gimbal and new battery positioned to move the center of gravity close to the aircraft’s core combines with raised motors that increase torque reaction, and a reliable flight control system which precisely controls the aircraft’s movement to make flight at high speeds safer.
EXTENDED FLIGHT TIME
- Advanced propulsion systems, highly integrated and more streamlined design combined with a larger capacity battery gives the new Phantom 25% more effective flying time.

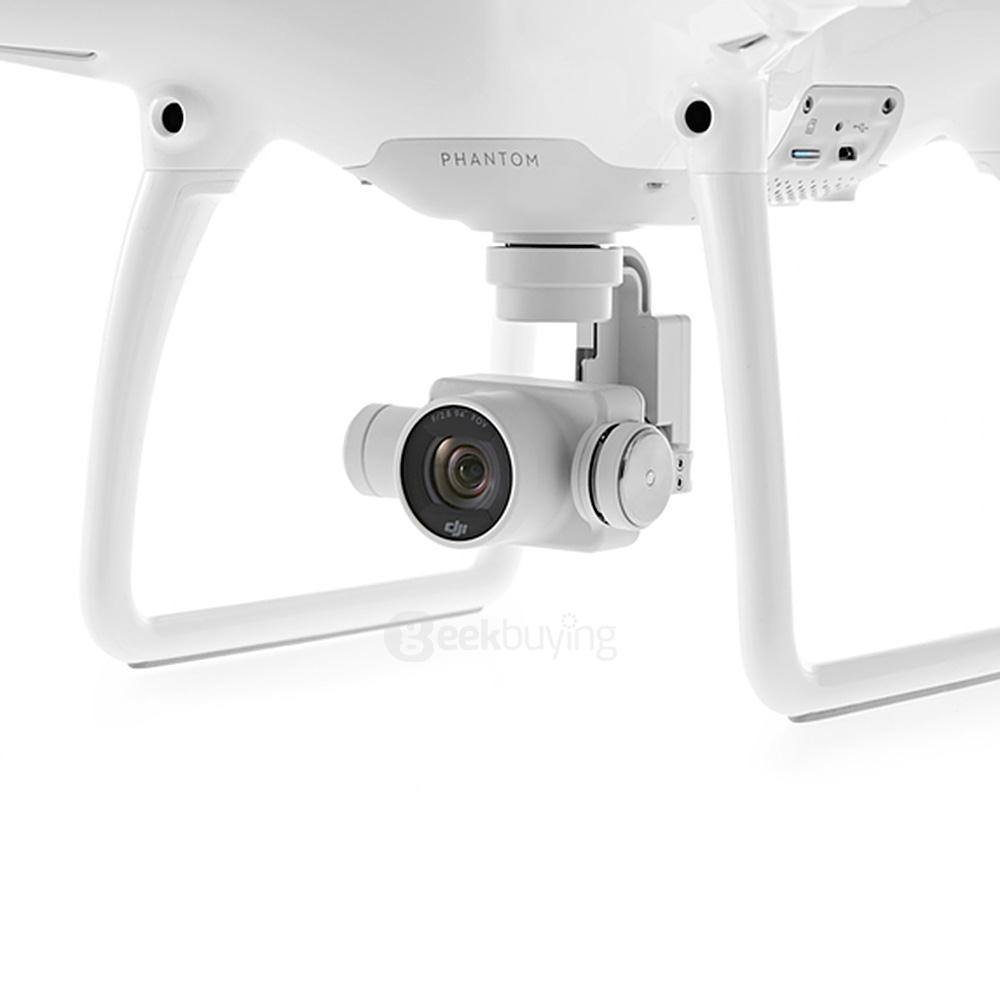

HIGH PERFORMANCE CAMERA
- Shoot sharp, clean video in up to 4K at 30fps and Full HD 1080p at 120fps for slow motion, through a newly designed lens that dramatically increases sharpness.
REVOLUTIONARY MATERIALS AND REFINED AERODYNAMICS
- A new, specially designed, magnesium core increases the stiffness and rigidity of the Phantom 4 without compromising weight. Working in tandem with the battery, it lifts the center of gravity closer to the level of the props which increases agility and responsiveness. This is all placed within a sleek and aerodynamically efficient shell.
SENSE AND AVOID
- Front obstacle sensors combine with advanced computer vision and processing to give the Phantom active obstacle avoidance that allows it to react to and avoid obstacles in its path. Additionally, DJI’s Vision Positioning System has been refined, increasing its effective altitude by over 300% from the Phantom 3’s altitude to 10 meters and sharpening up its positioning capabilities, allowing for greater security and confidence when flying indoors.
DJI GO
- DJI GO is all you need to fly, create, share, and connect. Compatible with the Phantom series, Inspire series, Osmo and more.
Specification
| General | |
|---|---|
| Brand | DJI |
| Model | Phantom 4 |
| Quantity | 1 Piece |
| Specification | |
|
Weight |
(Including Battery) 1380 g |
| Max Ascent Speed | 6 m/s (Sport mode) |
| Max Descent Speed | 4 m/s (Sport mode) |
| Max Speed | 20 m/s (Sport mode) |
| Max Service Ceiling | Above Sea Level 19685 feet (6000 m) (Software altitude limit: 400 feet above takeoff point) |
| Max Flight Time | Approx. 28 minutes |
| Operating Temperature Range | 32° to 104° F (0° to 40° C) |
| Hovering Accuracy |
Horizontal: Vertical: |
| OBSTACLE SENSING SYSTEM | |
| Obstacle Sensory Range | 2 - 49 feet (0.7 - 15 m) |
| Operating Environment |
Surface with clear pattern and adequate lighting (lux > 15) |
| CAMERA | |
| Sensor |
1/2.3" Effective pixels:12 M |
| Lens FOV ( Field Of View ) | 94°20 mm ( 35 mm format equivalent ) f/2.8 focus at ∞ |
| ISO Range | 100 - 3200 ( video ) 100 - 1600 ( photo ) |
| Electronic Shutter Speed | 8 s to 1/8000 s |
| Max Image Size | 4000×3000 |
| Still Photography Modes | Single shot |
| Burst shooting | 3 / 5 / 7 frames |
| Auto Exposure Bracketing ( AEB ) | 3 / 5 bracketed frames at 0.7 EV Bias Time-lapse |
| HDR | |
| Video Recording Modes |
UHD: 4096×2160 (4K) 24 / 25p 3840×2160 (4K) 24 / 25 / 30p 2704×1520 (2.7K) 24 / 25 / 30p FHD: 1920×1080 24 / 25 / 30 / 48 / 50 / 60 / 120p HD: 1280×720 24 / 25 / 30 / 48 / 50 / 60p |
| Max Video Bitrate | 60 Mbps |
| Supported File Systems | FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB ) |
| Video /Photo | JPEG, DNG ( RAW ) MP4 / MOV ( MPEG – 4 AVC / H.264 ) |
| Supported SD Cards | Micro SD, Max capacity: 64GB. Class 10 or UHS-1 rating required |
| Operating Temperature | 32° to 104° F ( 0° to 40° C ) |
| CHARGER | |
| Voltage |
17.4 V |
| Rated Power | 100 W |
| Gimbal | |
|
Controllable Range Pitch |
-90° to +30° |
| Range |
Velocity Range ≤10 m/s ( 2 m above ground ) Altitude Range 0 - 33 feet (0 - 10 m) |
| Operating Environment | Surfaces with a clear pattern and adequate lighting (lux > 15) |
| REMOTE CONTROLLER | |
|
Operating Frequency |
2.400 GHz to 2.483 GHz |
| Max Transmission Distance | FCC Compliant: 3.1 mi ( 5 km ); CE Compliant: 2.2 mi ( 3.5 km )( Unobstructed, free of interference ) |
| Operating Temperature | 32° to 104° F ( 0° to 40° C ) |
| Battery | 6000 mAh LiPo 2S |
| Transmitter Power ( EIRP ) | FCC: 23 dBm; CE: 17 dBm |
| Charger | |

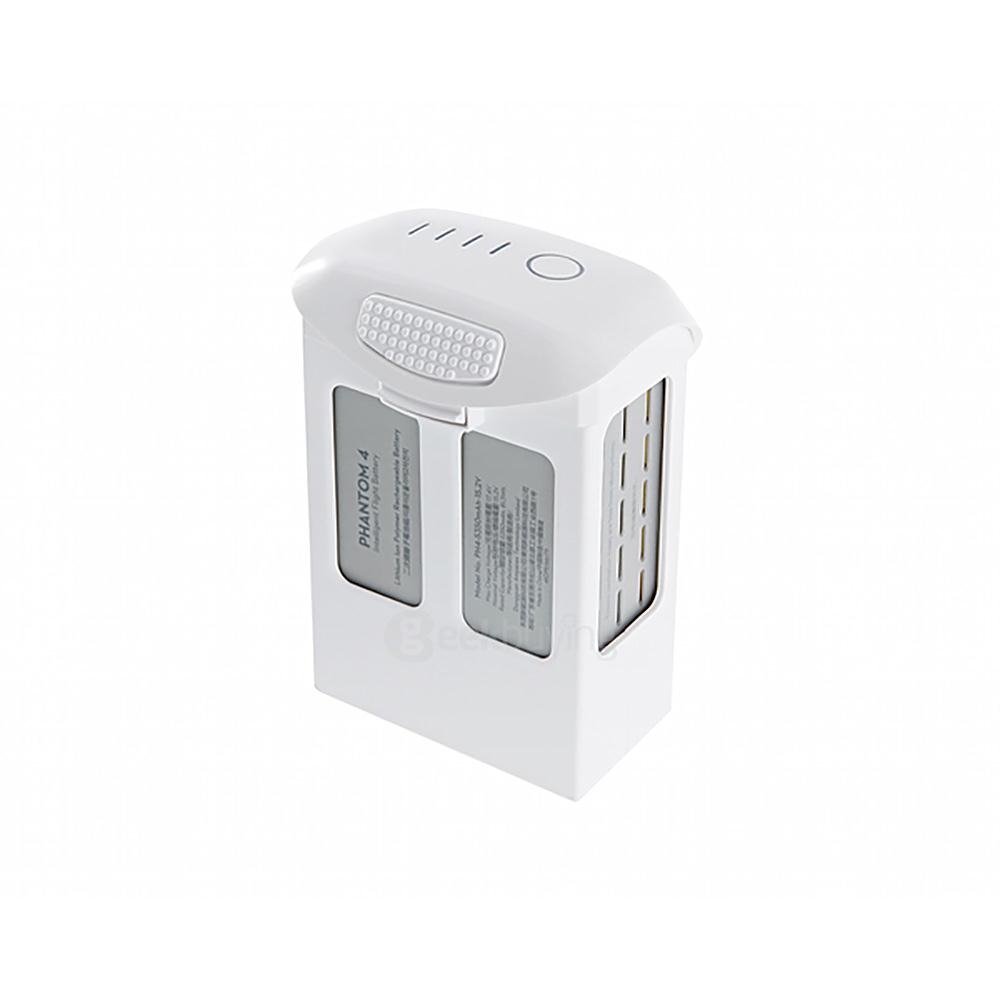

| Voltage | Operating Voltage 7.4V @ 1.2A INTELLIGENT FLIGHT BATTERY ( PH4 - 5350 MAH -15.2 V ) |
| Capacity | 5350 mAh |
| Voltage | 15.2 V |
| Battery Type | LiPo 4S |
| Energy | 81.3 Wh |
| Net Weight | 462 g |
| Operating Temperature | 14° to 104° F ( -10° to 40° C ) |
| Max Charging Power | 100 W |

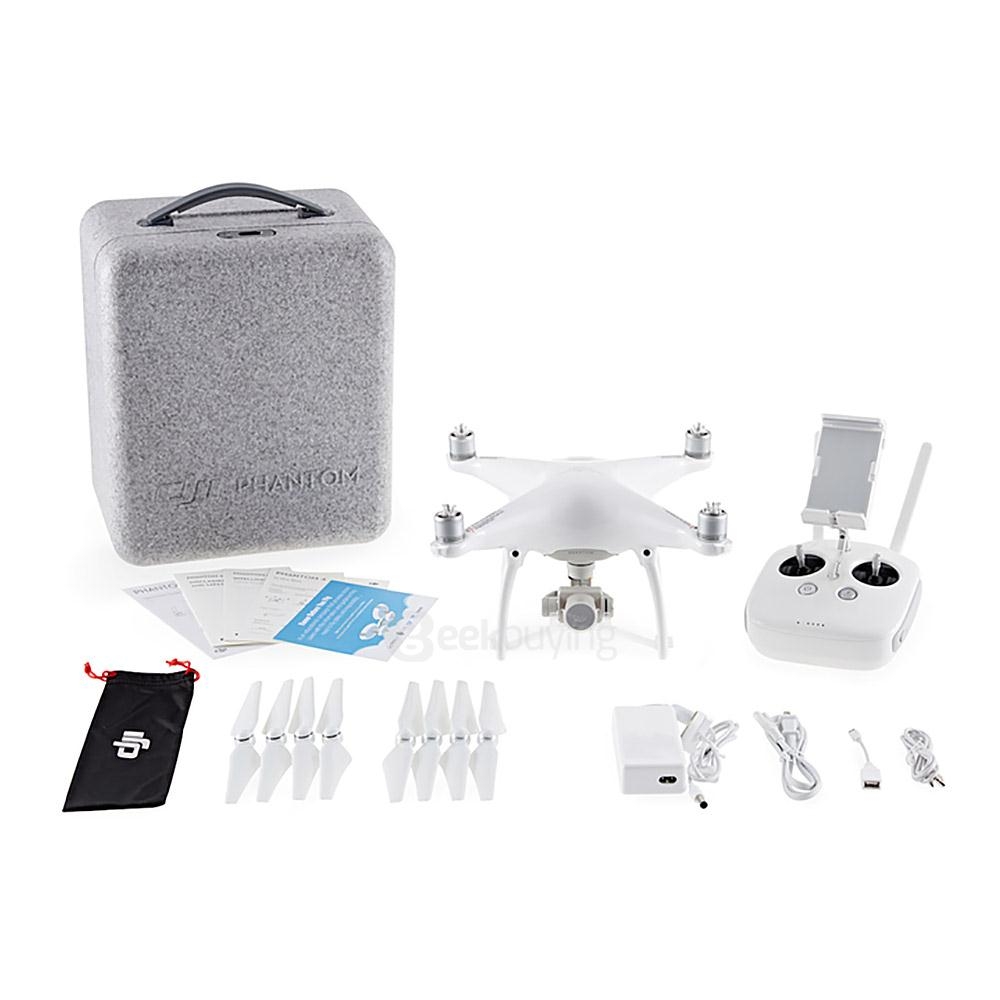

| Package Contents | |
| 1* Quadcopter | |
| 1 * Transmitter with cellphone holder | |
| 1 * Battery | |
| 1 * Balance charger | |
| 1 * Battery adapter | |
| 4 * Spare blades | |
| 2 * Connecting cables | |
| 1 * User Manual | |
