Dys ELF - 83mm Micro Brushless FPV Racing Drone - RTF

Dys ELF - 83mm Micro Brushless FPV Racing Drone - RTF
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:

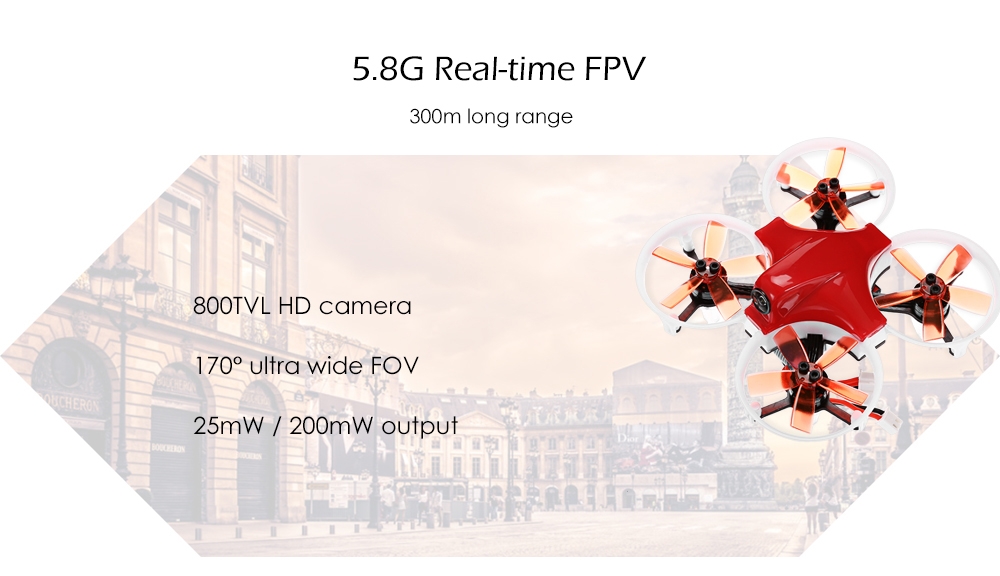

- 800TVL HD 170-degree FOV camera features excellent performance in backlight, ideal for FPV racing
- 5.8G 40CH 25mW / 200mW VTX, 3dBi whip antenna, 300m long image transmission distance

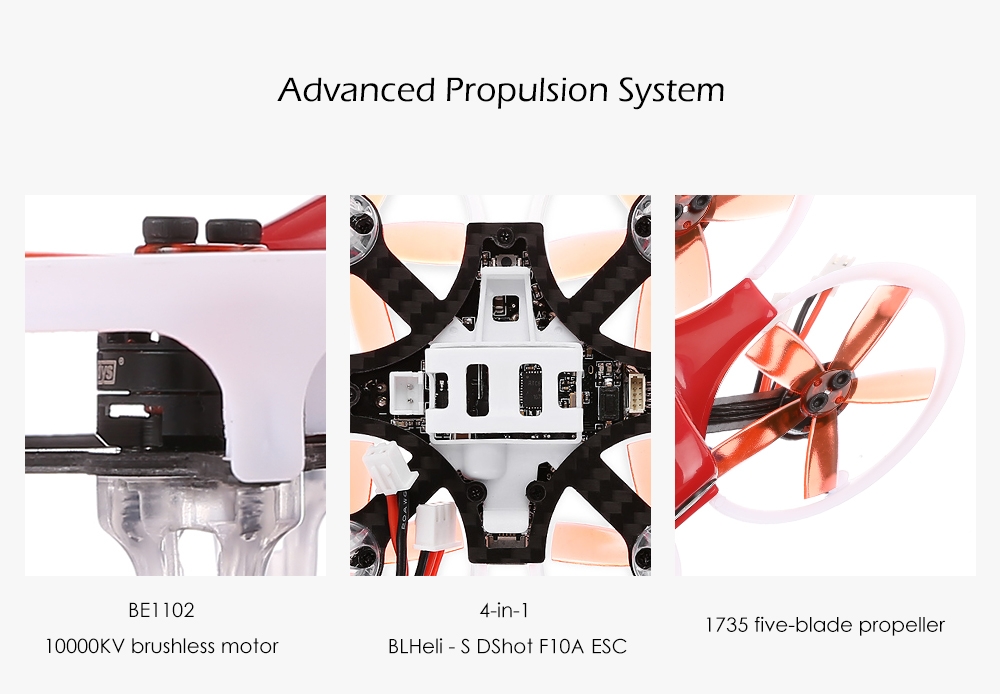

- Swift and stable flight, i.e. BE1102 10000KV brushless motor + 1735 five-blade propeller
- Highly integrated PCB consists of F3 flight controller, 4-in-1 BLHeli - S F10A DShot ESC, and buzzer

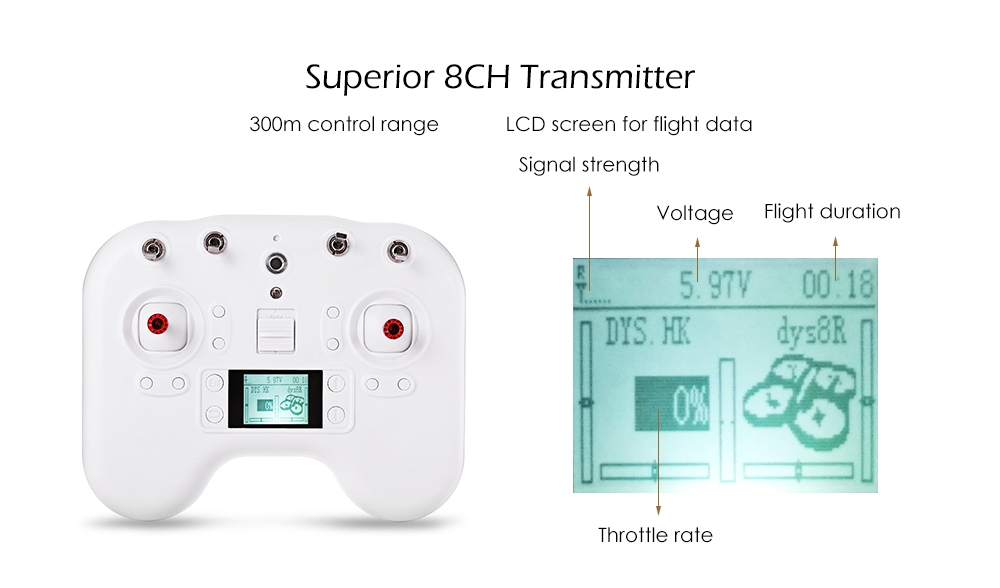

- 2.4GHz 8-channel transmitter with integrated LCD screen to display flight data, 300m control range
- D8R receiver protocol, compatible with FrSky transmitters ( including X9D etc. )

Specifications:

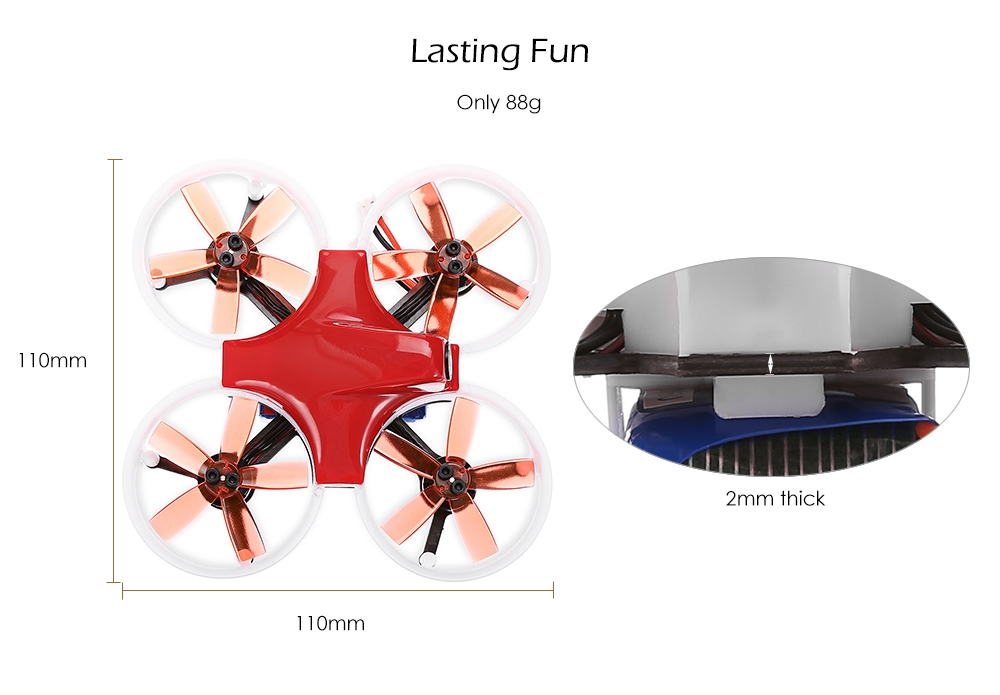

Weight: 88g
Wheelbase: 83mm
Brushless motor: BE1102 10000KV
Brushless ESC: 4-in-1 BLHeli - S F10A
Flight controller: F3

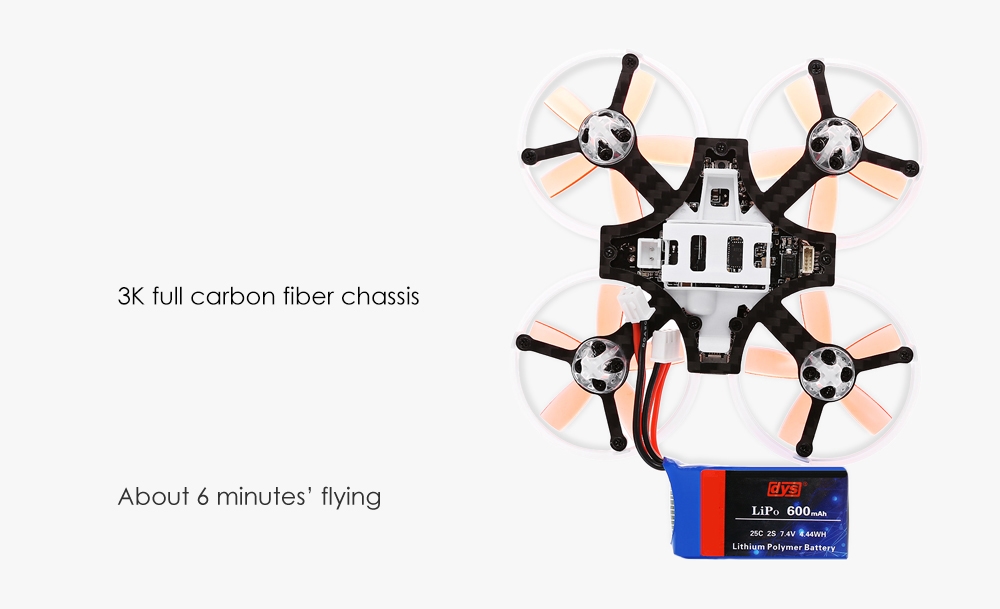

Battery: 7.4V 600mAh 2S LiPo
Flight time: about 6 minutes
Camera: 800TVL HD
Field of view: 170 degree
TV system: NTSC / PAL ( auto )
Video transmitter: 5.8G 40CH 25mW / 200mW
Antenna: 3dBi
Propeller: 1735 5-blade

Click here to download the user manual.

Specification

General

Brand: DYS
Type: Frame Kit
Version: RTF
Size: Micro

Motor

Model: BE1102
Motor Type: Brushless Motor
KV: 10000

Flight Controller

Flight Controller Type: F3

Remote Controller Specifications

Channel: 8-Channels
Remote Control: 2.4GHz Wireless Radio Control
Mode: Mode 2 (Left Hand Throttle)
Detailed Control Distance: About 300m
FPV Distance: 300m
Transmitter Power: 4 x 1.5V AA (not included)
Model Power: Built-in rechargeable battery

Camera

Video Resolution: 800TVL ( horizontal resolution )

Electronic Speed Controller

Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42
Continuous Current: 10A

Battery

Battery (mAh): 600mAh
Battery Coulomb: 25C
Flying Time: 5~6mins
Charging Time (h): about 1 hour
Battery Size: 4.4 x 2.3 x 1.4cm ( not including connectors )
Plug Type: Other Plug

Charger Informations

Charger Power Supply: AC
Output Voltage (V) : 13.5V ( 1.8A )
Input Voltage (V) : 100 - 240V AC ( 0.5A ) 50 / 60Hz

Dimension and Weight

Product weight: 0.0880 kg
Package weight: 0.7430 kg
Product size (L x W x H): 11.00 x 11.00 x 5.00 cm / 4.33 x 4.33 x 1.97 inches
Package size (L x W x H): 33.00 x 8.80 x 21.70 cm / 12.99 x 3.46 x 8.54 inches

Package Contents

Package Contents: 1 x Drone ( Battery Included ), 1 x Transmitter, 4 x Spare Propeller, 1 x Balance Charger, 1 x Power Adapter, 1 x Chinese-English Manual

Product Safety Disclaimer:
We do not accept any responsibility or liability for misuse of this or any other product. All our products are extensively tested to comply with rigorous and strict QC standards. For certain products (e.g. toys, knives, etc.), we recommend proper supervision as we cannot be held liable for misuse or accidents.

Note:
Product photography is for illustration only. The product sold may have minor physical differences depending on manufacturer specifications, production batch, etc. Customers should carefully consider this before purchase.

Small Parts Disclaimer:
These toys contain small parts, not for children under 3 years in case of swallowing or choking . We do not accept any responsibility or liability for misuse of this or any other product.
