Description:
EMAX Babyhawk Race RC drone is equipped with durable and anti-crash carbon fiber frame. With Magnum tower system of F3 FC + 4-in-1 12A BLHeli - S ESC, it has more simple structure and easier to install. The 6000KV motor will provide strong power. Pre-tuned BetaFlight firmware 3.2 optimizes its flight performance. The 600TVL 2.1mm wide-angle camera will sure to bring you good FPV experience. 5.8G 40CH 25mW / 200mW switchable video transmitter allows you control it within 1000m.
Main Features:
Frame:
- Carbon fiber frame, lightweight, and anti-crash
- Strong 3mm arms with lower profile arms to reduce drag
Power System:
- Powered by the Magnum tower system with F3 FC + 4-in-1 12A BLHeli - S ESC 3 - 4S

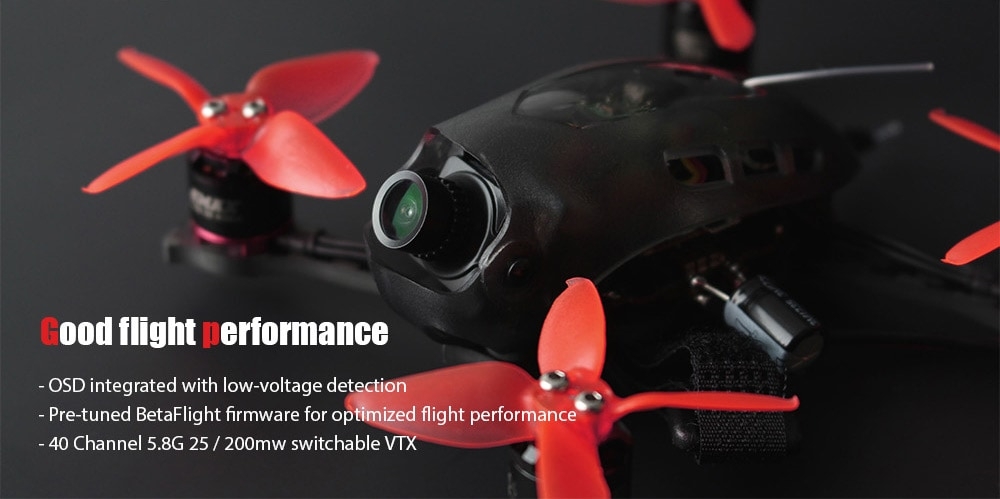

- With pre-tuned BetaFlight firmware 3.2.2 for optimized flight performance

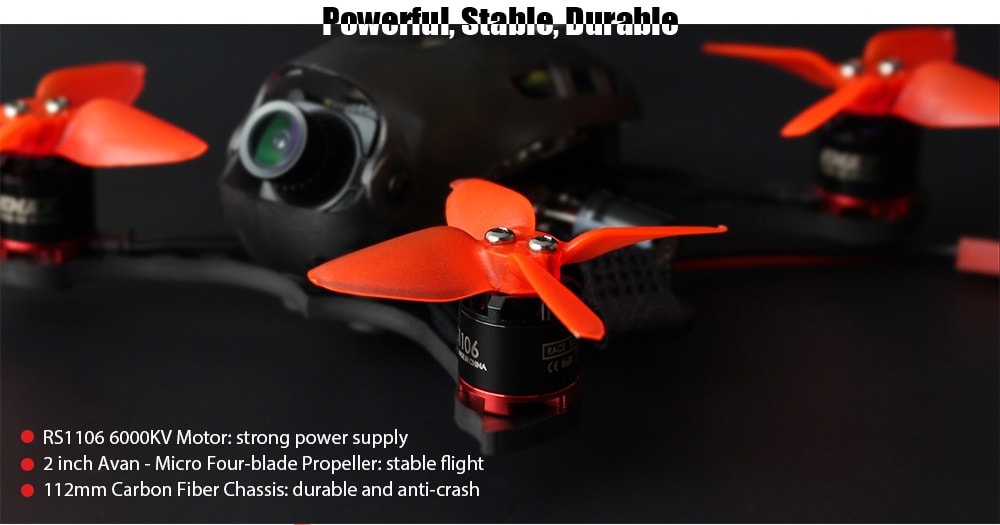

- Class-leading RS1106 6000KV brushless motor paired with the four-blade propeller for maximum speed and control
Â
FPV System:

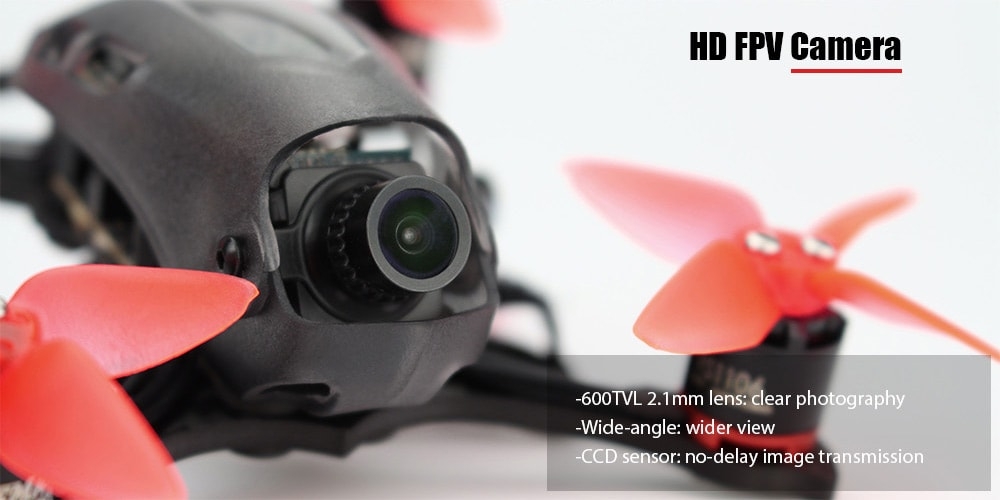

- 600TVL micro 2.1mm wide-angle camera for more clear photos and wider view
- CCD sensor for its better handling of high contrast lighting and resistance to " jello " in your flight video
- Canopy has adjustable camera positions so pilot can tune for track speed and size
- 40CH 5.8G VTX with LED info display, switchable power ( 25mW / 200mW ) and up to 1000m control distance
Recommended Parts:
Battery: 4S 800 - 850mAh 50 - 70C LiPo
Transmitter: above 6CH
Specifications:
Frame: 112mm carbon fiber material
Motor: RS1106 6000KV 0.2kg thrust
Flight controller: 2 - 4S BetaFlight 3.2.2 OMNIBUSF4SD F3 STM32F303, MPU6000 ( IMU ) with OSD
ESC: 2 - 4S 12A ( peak: 15A ) BLHeli - S DShot150 / DShot300 / DShot600
Camera: wide-angle 600TVL micro 2.1mm Foxeer lens, CCD sensor
VTX: 5.8GHz 40CH 25mW / 200mW ( switchable )
Compatible with 2.4GHz transmitter, 5.8GHz receiver
EMAX Babyhawk Race RC drone is equipped with durable and anti-crash carbon fiber frame. With Magnum tower system of F3 FC + 4-in-1 12A BLHeli - S ESC, it has more simple structure and easier to install. The 6000KV motor will provide strong power. Pre-tuned BetaFlight firmware 3.2 optimizes its flight performance. The 600TVL 2.1mm wide-angle camera will sure to bring you good FPV experience. 5.8G 40CH 25mW / 200mW switchable video transmitter allows you control it within 1000m.
Main Features:
Frame:
- Carbon fiber frame, lightweight, and anti-crash
- Strong 3mm arms with lower profile arms to reduce drag
Power System:
- Powered by the Magnum tower system with F3 FC + 4-in-1 12A BLHeli - S ESC 3 - 4S
- With pre-tuned BetaFlight firmware 3.2.2 for optimized flight performance
- Class-leading RS1106 6000KV brushless motor paired with the four-blade propeller for maximum speed and control
Â
FPV System:
- 600TVL micro 2.1mm wide-angle camera for more clear photos and wider view
- CCD sensor for its better handling of high contrast lighting and resistance to " jello " in your flight video
- Canopy has adjustable camera positions so pilot can tune for track speed and size
- 40CH 5.8G VTX with LED info display, switchable power ( 25mW / 200mW ) and up to 1000m control distance
Recommended Parts:
Battery: 4S 800 - 850mAh 50 - 70C LiPo
Transmitter: above 6CH
Specifications:
Frame: 112mm carbon fiber material
Motor: RS1106 6000KV 0.2kg thrust
Flight controller: 2 - 4S BetaFlight 3.2.2 OMNIBUSF4SD F3 STM32F303, MPU6000 ( IMU ) with OSD
ESC: 2 - 4S 12A ( peak: 15A ) BLHeli - S DShot150 / DShot300 / DShot600
Camera: wide-angle 600TVL micro 2.1mm Foxeer lens, CCD sensor
VTX: 5.8GHz 40CH 25mW / 200mW ( switchable )
Compatible with 2.4GHz transmitter, 5.8GHz receiver
Specification
General |
Brand: EMAX
Type: Frame Kit Version: PNP |
|---|---|
Motor |
Motor Type: Brushless Motor
KV: 6000KV |
Flight Controller |
Flight Controller Type: F3 |
Camera |
Video Resolution: 600TVL
Sensor: CCD |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600 Continuous Current: 12A Burst Current: 15A Input Voltage: 2 - 4S |
Propeller |
Material: Carbon Fiber |
Dimension and Weight |

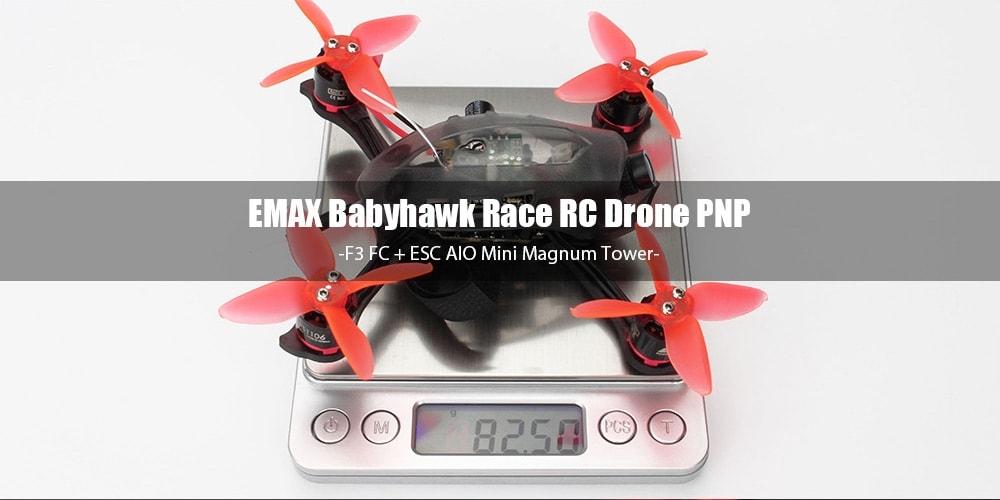

Product weight: 0.0825 kg
Package weight: 0.1650 kg Product size (L x W x H): 13.50 x 13.50 x 4.00 cm / 5.31 x 5.31 x 1.57 inches Package size (L x W x H): 21.00 x 12.80 x 4.00 cm / 8.27 x 5.04 x 1.57 inches |
Package Contents |
Package Contents: 1 x RC Drone, 1 x English Manual, 1 x Chinese Manual, 8 x Propeller, 1 x Set of Screws |
