Main Features:
â NSK high-efficiency bearings, 0.15mm silicon steel lamination, 1.8mm N48SH arc magnets, greater power and efficiency

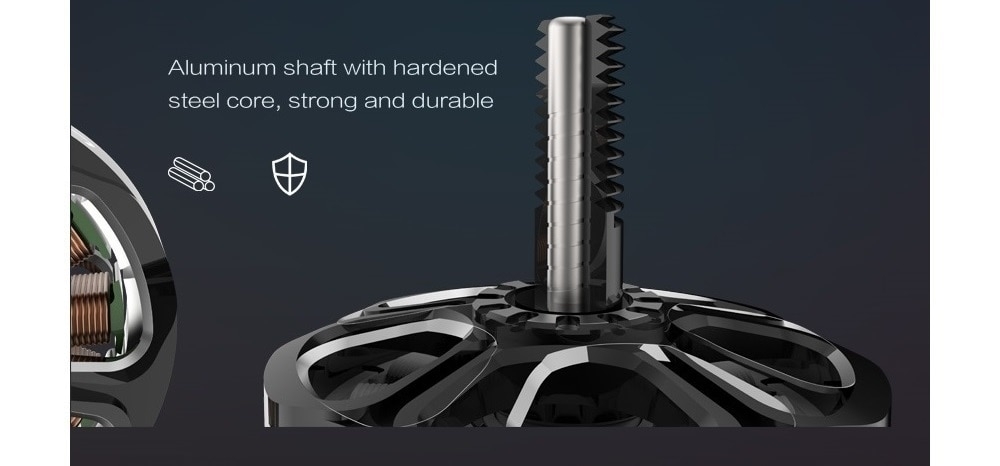

â Aluminum shaft with hardened steel core, strong and durable
â New bell design with upper and lower beam support to reduce damage from collapse of impacts

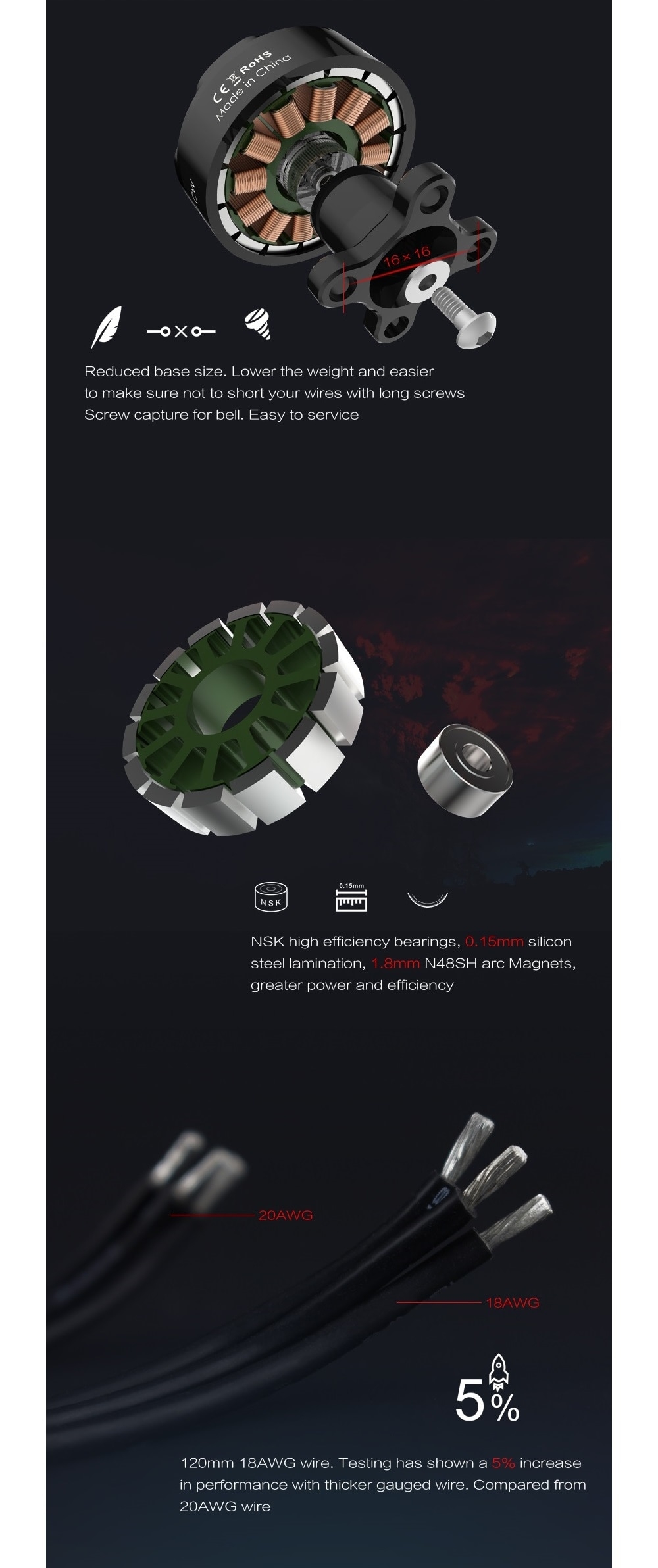

â Reduced base size: lower the weight and easier to make sure not to short your wires with long screws
â 16mm x 16mm mounting holes ( 19 x 16 is the past) future frames don't need to have slotted mounting holes
â 120mm 18AWG wire for better performance compared to 20AWG wire
Specifications:
Model: LS2206
KV: 2700
Length: 30.2mm
No. of cells: 3 - 5S
Max. Thrust: 1426g ( on 4S )
Diameter: 27.5mm
Prop adaptor shaft thread: M5
Compatible propeller: 5 inch
â NSK high-efficiency bearings, 0.15mm silicon steel lamination, 1.8mm N48SH arc magnets, greater power and efficiency
â Aluminum shaft with hardened steel core, strong and durable
â New bell design with upper and lower beam support to reduce damage from collapse of impacts
â Reduced base size: lower the weight and easier to make sure not to short your wires with long screws
â 16mm x 16mm mounting holes ( 19 x 16 is the past) future frames don't need to have slotted mounting holes
â 120mm 18AWG wire for better performance compared to 20AWG wire
Specifications:
Model: LS2206
KV: 2700
Length: 30.2mm
No. of cells: 3 - 5S
Max. Thrust: 1426g ( on 4S )
Diameter: 27.5mm
Prop adaptor shaft thread: M5
Compatible propeller: 5 inch
Specification
General |
Brand: EMAX
Type: Motor |
|---|---|
Motor |
CW / CCW: CW |
Dimension and Weight |
Product weight: 0.0300 kg
Package weight: 0.0800 kg Package size (L x W x H): 11.00 x 7.00 x 3.30 cm / 4.33 x 2.76 x 1.3 inches |
Package Contents |
Package Contents: 1 x Motor, 5 x 3mm Arm Mounting Screw, 5 x 4mm Arm Mounting Screw, 1 x Replacement Bell Housing Screw, 1 x Replacement Bell Housing Washer, 1 x EMAX Sticker |
