EMAX RS2205 2600KV Red Bottom Motor for FPV Racing - CCW

EMAX RS2205 2600KV Red Bottom Motor for FPV Racing - CCW
Seller: Geekbuying,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)

Highlights

High precision and tight tolerance

  • Redesigned and engineered to perform better than most in its class, every motor is precision crafted within tight tolerance. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Cooling

  • The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This cool feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.
  • N52 Magnets
  • Adopts the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.
  • Bearings: Genuine Japanese NMB Bearings provide long lasting, smooth performance.

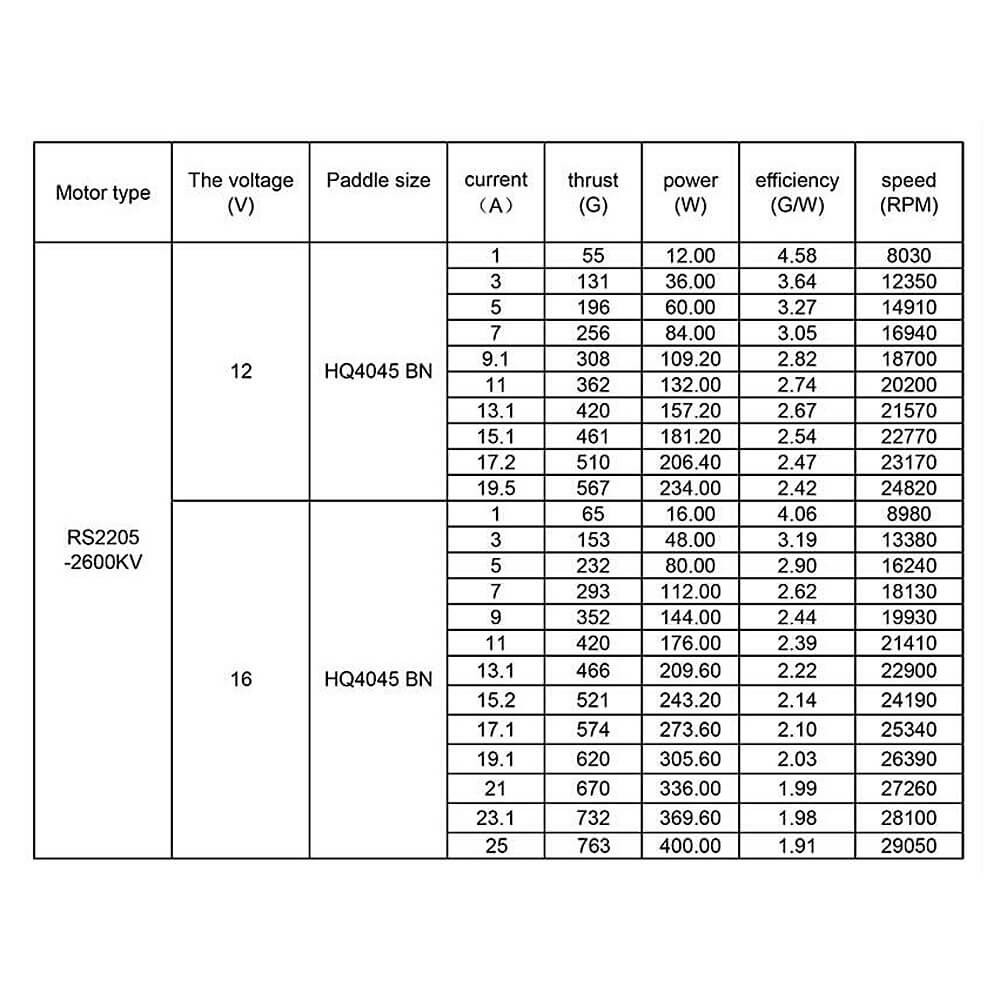

Thrust

  • Produces over +1,000g of thrust using 4S and 5045BN.

Key features

  • 1K+ Thrust with 4s battery and recommend propeller combo
  • Cooling Series Bell Design reduces motor temperature by at least 30%
  • Highest Grade N52 Neodymium magnets
  • Genuine Japanese NMB Bearings
  • Each Motor is Dynamically Balanced in the factory.
  • 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

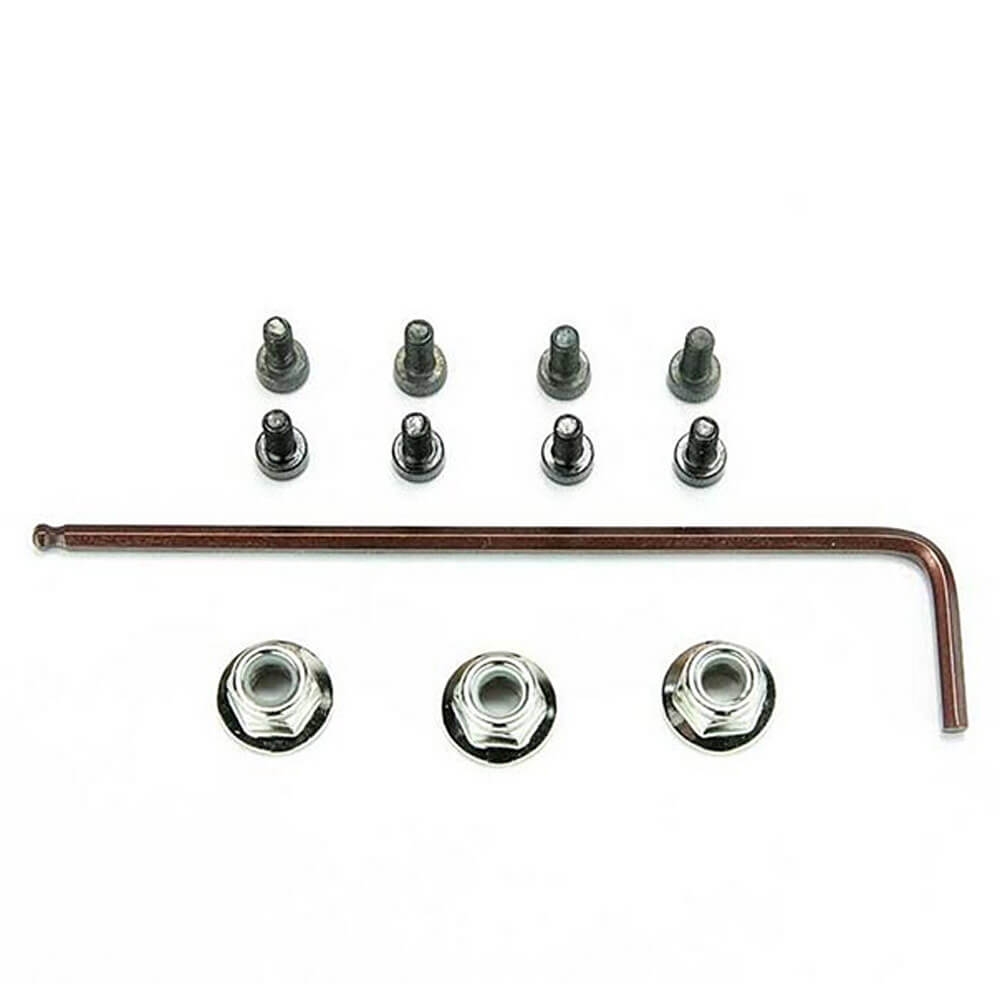

  • 3 Lock nuts and 2 sets of motor screws for 3mm and 4mm thick frames.
  • Windings made from copper of high purity

Specification

General
Brand EMAX
Model RS2205
Quantity 1 Piece
Specification
KV 2600KV
Wire AWG 20AWG

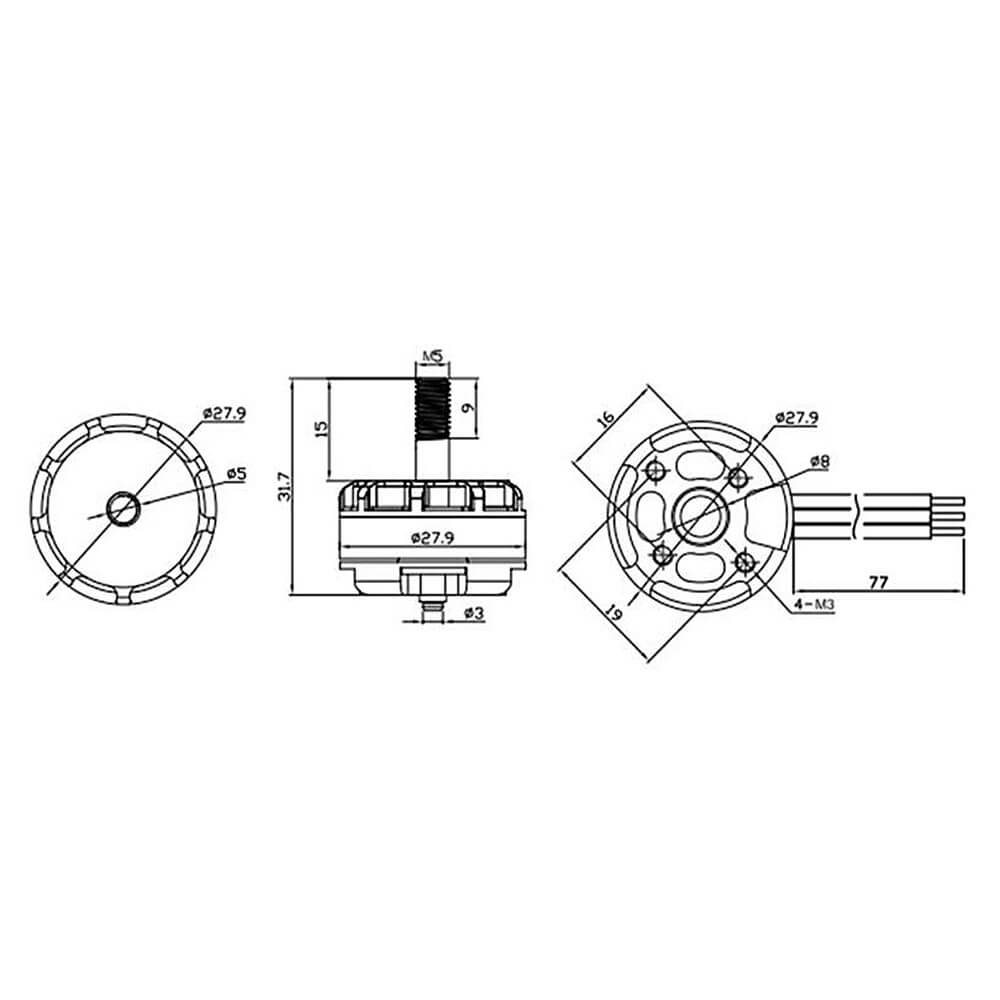

Stator  Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter 3mm
Configuration 12N14P
Motor  Motor Diameter: 27.9mm
Motor Height: 31.7mm
Prop Adapter Shaft Thread  M5
Input voltage 3S-4S (12.6 - 16.8v)
Max.thrust 1024g
Dimensions & Weight (Main Product)
Dimension
Weight Approx. 30g with wires
Package Contents
1*EMAX RS2205 2600KV Red Bottom Motor for FPV Racing - CCW
