Description:

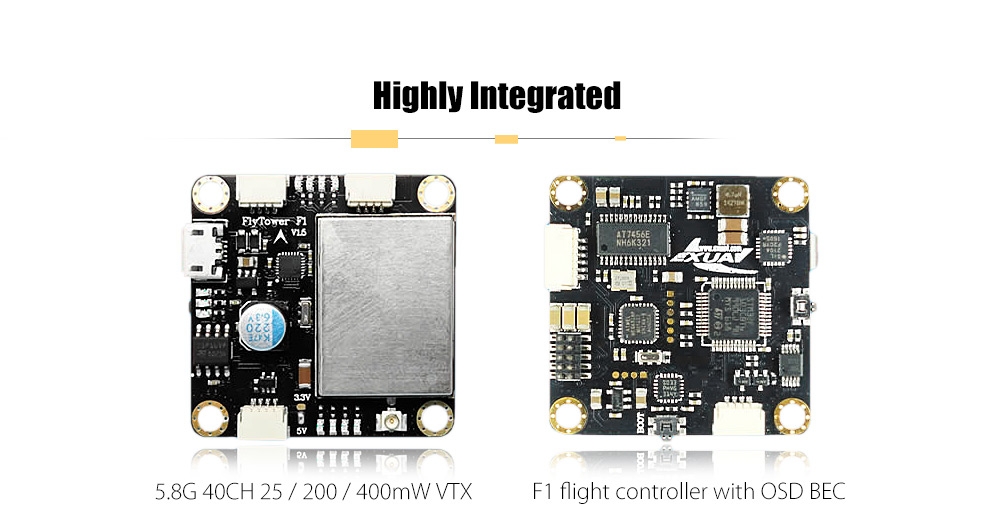

The Flytower F1 board, based NAZE32 flight controller, is highly integrated with OSD, BEC, 4-in-1 BLHeli 20A ESC and VTX ( video and audio ). It gives you all the features you need in FPV, which makes you enthusiastic about FPV racing. It supports a variety of aircraft, tri-copters, quadcopters, hexacopters, octocopters, and much more.
Main Features:
Practical - easy to access connectors

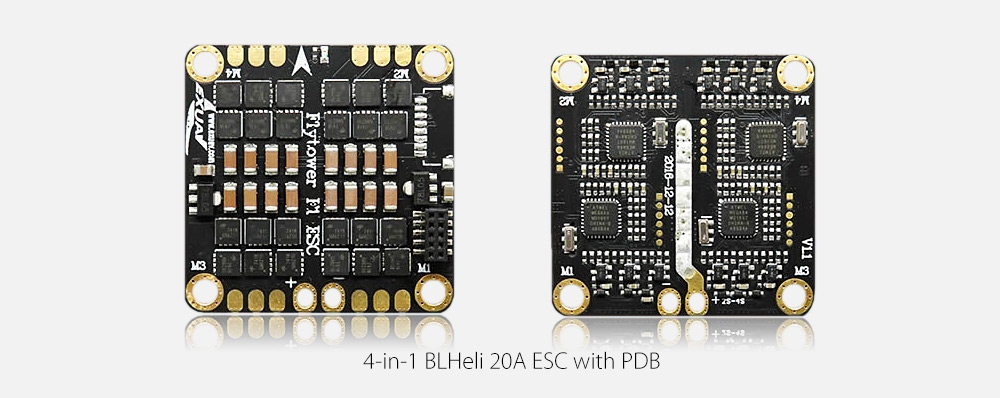

Stackable - with 4-in-1 BLHeli 20A ESC, 5.8GHz 40CH VTX

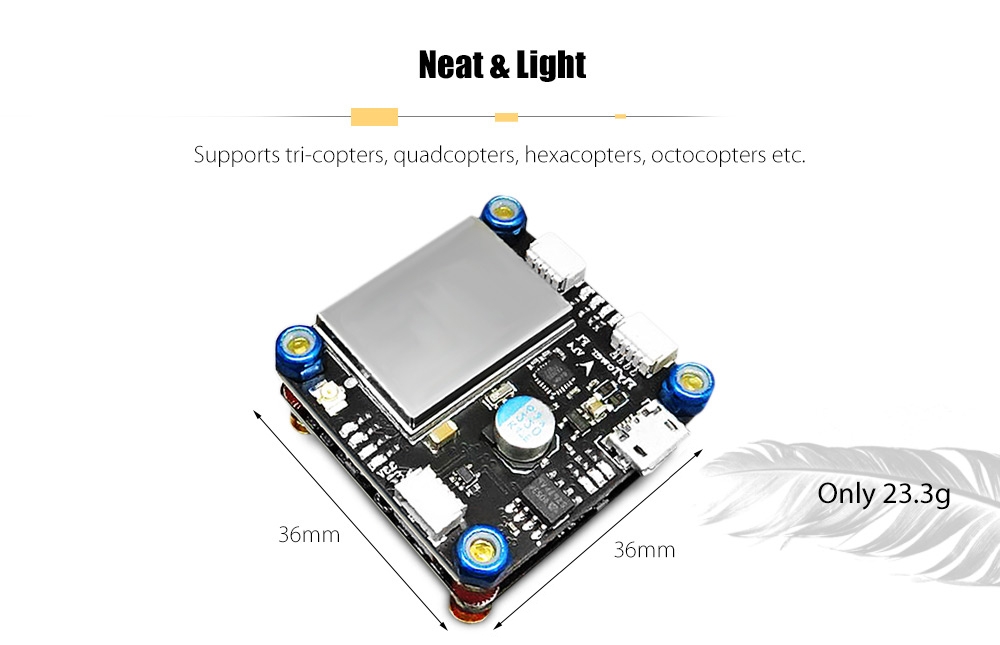

Compact - only 36 x 36 x 10mm
Weight - 23.3 grams ( 2 PCB boards in total )
Professional - symmetrical and neat
Easy to install onto any racing drone
36 x 36mm board with 30.5mm mounting hole spacing
Specifications:
STM32F103CB CPU, 72MHz inc FPU
High-capacity flash
MPU6500 accelerometer / gyro
Micro USB socket
CleanFlight ( NAZE ) / BetaFlight ( NAZE ) firmware
Dimension: 36 x 36mm
Mounting hole spacing: 30.5mm
Specification
General |
Brand: Flytower
Type: Flight Controller |
|---|---|
Flight Controller |
Flight Controller Type: F1 |
Electronic Speed Controller |
Firmware: BLHeli
Functions: Oneshot125 Continuous Current: 20A Burst Current: 25A Input Voltage: 2 - 4S |
Dimension and Weight |
Package weight: 0.1000 kg
Product size (L x W x H): 3.60 x 3.60 x 1.00 cm / 1.42 x 1.42 x 0.39 inches Package size (L x W x H): 5.00 x 4.60 x 2.00 cm / 1.97 x 1.81 x 0.79 inches |
Package Contents |
Package Contents: 1 x F1 Flight Controller |
