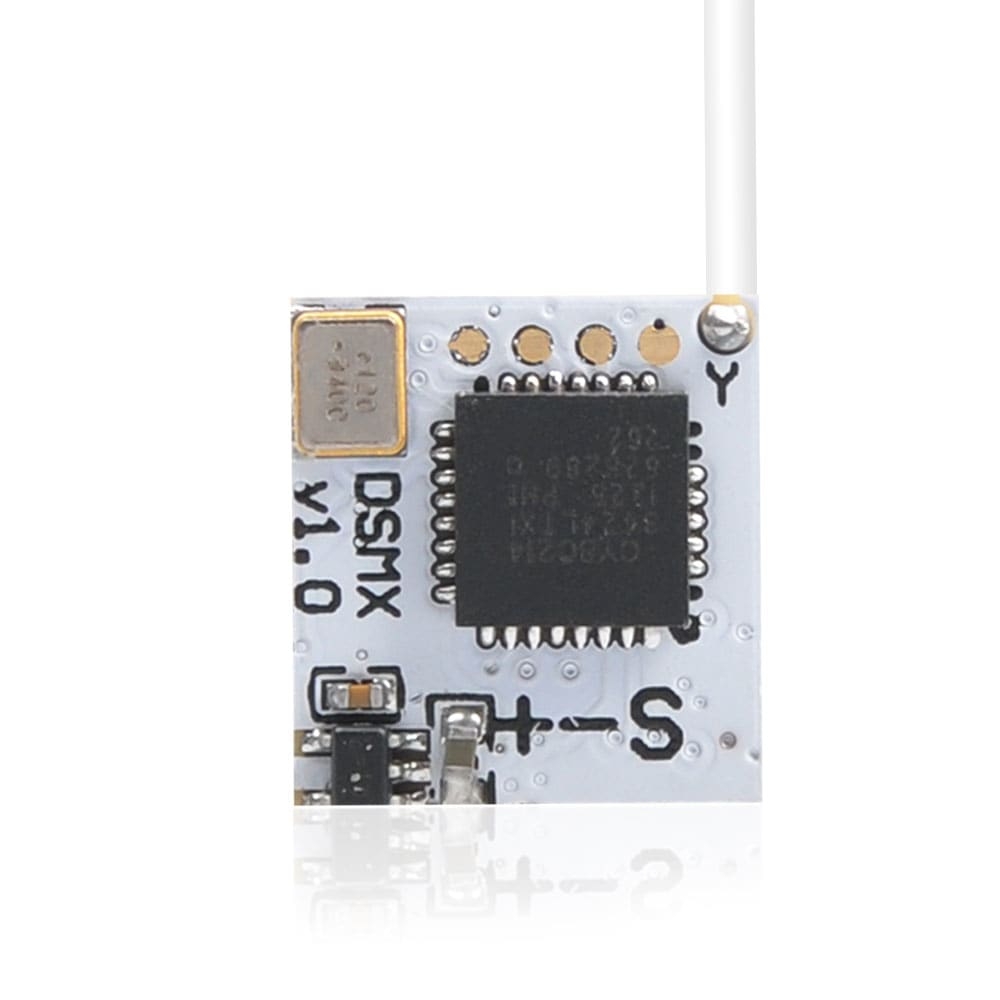

Item Name: DSMX Nano Receiver
Brand name: Full Speed
Voltage: 5V
Product weight: 0.6g
Signal system: DSMX( Support DSM2)automatic retrieval
Band: 2.4GHz
Distance: 500M+

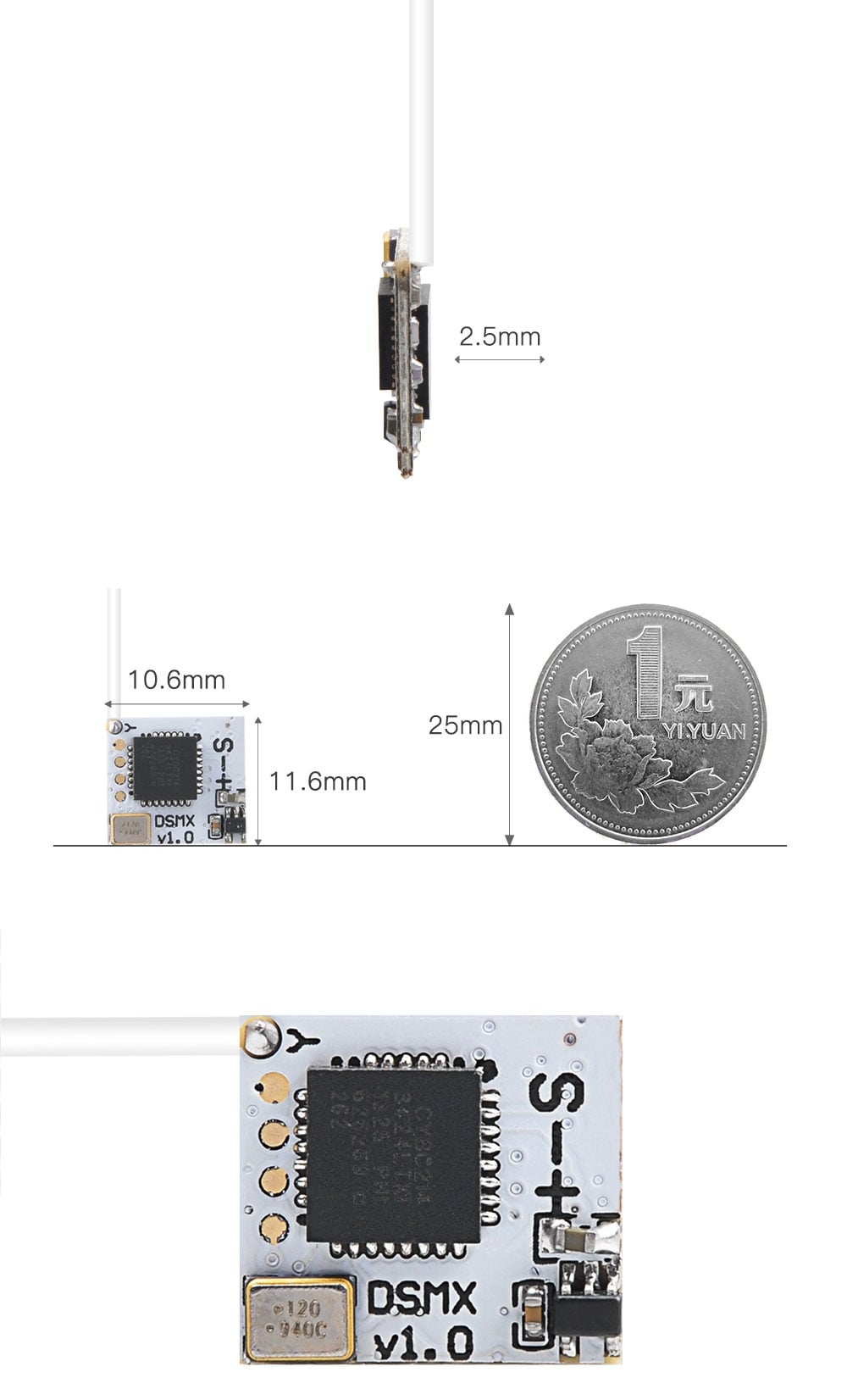

Product size: 10.6 x 11.6 x 2.5mm
Binding (DSMX Nano)
1. Connet the receiver to FC and run the BF.
2. Type: set spektrum_sat_bind=9 in CLI and save.
3. Disconnect the power. The light on the receiver will flash quickly which meansÂ
it's binding. Set spektrum_sat_bind=0 and save
4. Turn on the radio and select bind mode. Wait a moment. It means bind successfully if the light on receiver keeps brighting.
5.After binding. Type: set spektrum_sat_bind=0 and save.
Brand name: Full Speed
Voltage: 5V
Product weight: 0.6g
Signal system: DSMX( Support DSM2)automatic retrieval
Band: 2.4GHz
Distance: 500M+
Product size: 10.6 x 11.6 x 2.5mm
Binding (DSMX Nano)
1. Connet the receiver to FC and run the BF.
2. Type: set spektrum_sat_bind=9 in CLI and save.
3. Disconnect the power. The light on the receiver will flash quickly which meansÂ
it's binding. Set spektrum_sat_bind=0 and save
4. Turn on the radio and select bind mode. Wait a moment. It means bind successfully if the light on receiver keeps brighting.
5.After binding. Type: set spektrum_sat_bind=0 and save.
Specification
General |
Type: Receiver |
|---|---|
Remote Controller Specifications |
Remote Control: 2.4GHz Wireless Remote Control
Protocol: DSM2/DSMX |
Dimension and Weight |
Product weight: 0.0006 kg
Package weight: 0.0016 kg Product size (L x W x H): 1.06 x 1.16 x 0.25 cm / 0.42 x 0.46 x 0.1 inches Package size (L x W x H): 6.80 x 5.00 x 0.50 cm / 2.68 x 1.97 x 0.2 inches |
Package Contents |
Package Contents: 1 x DSMX Nano receiver |
