Specification:

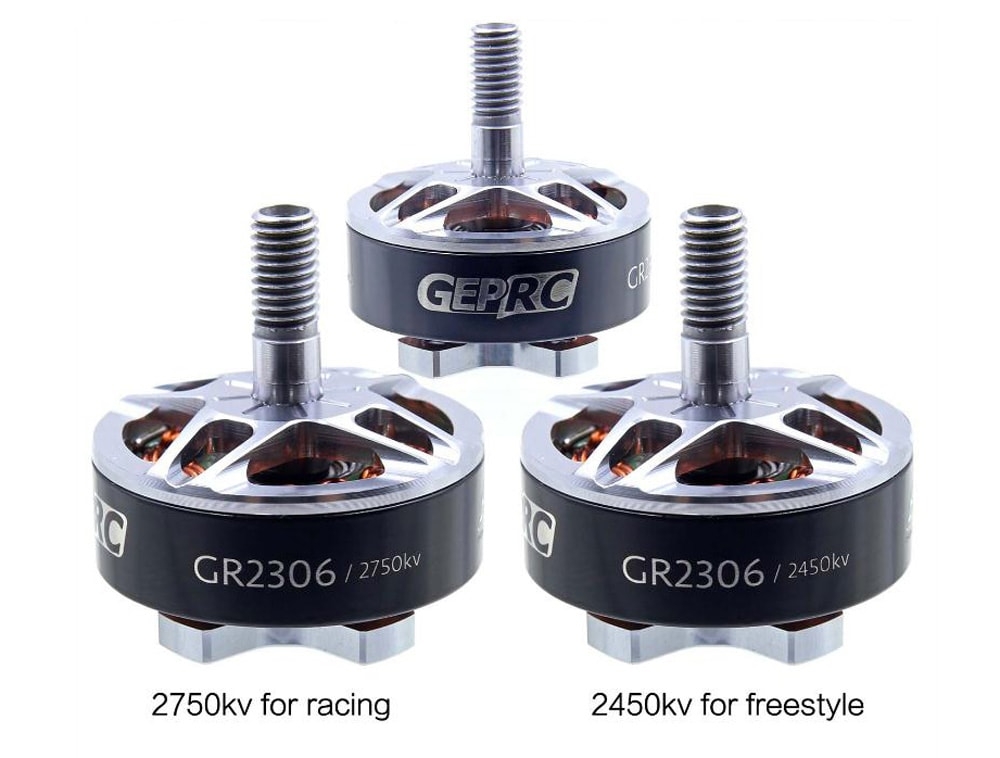

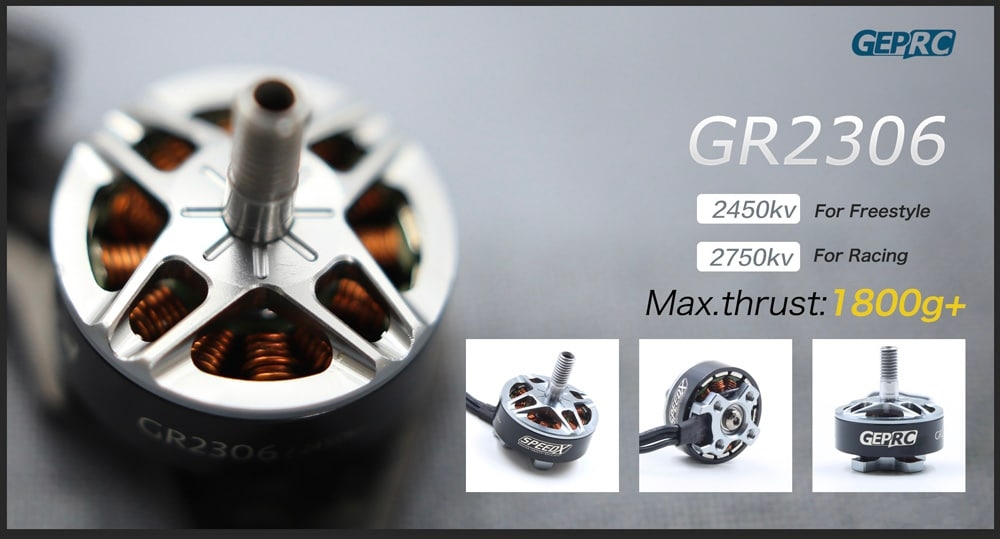

Item name: GEP - GR2306
KV: 2450, 2750

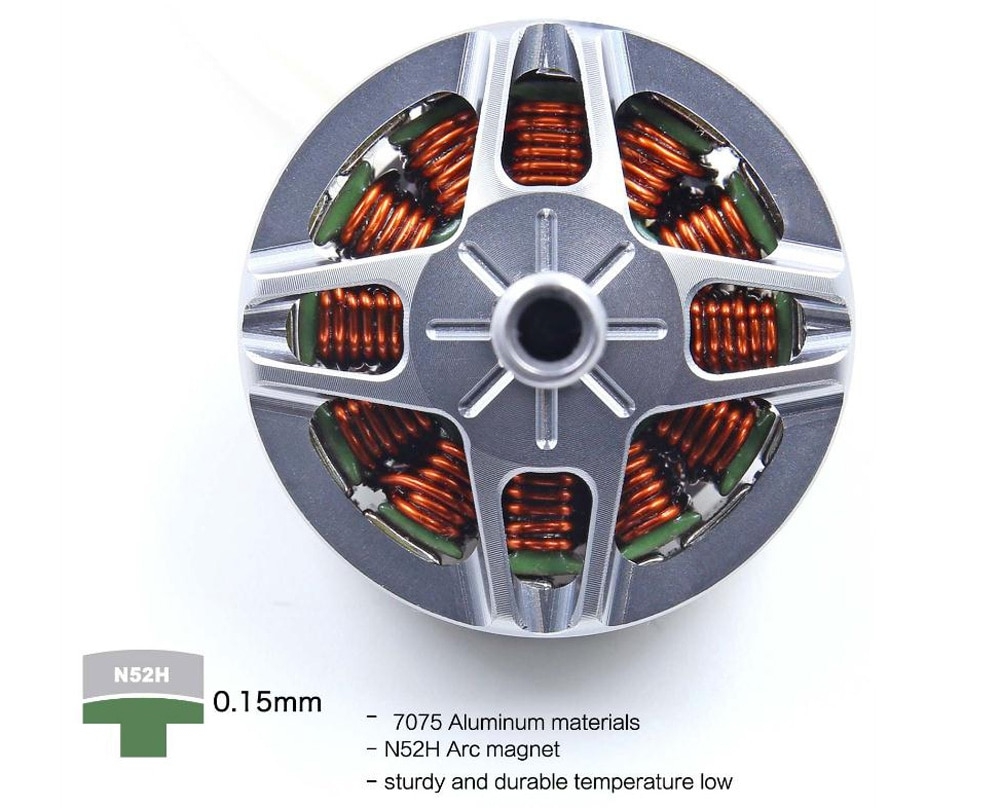

Configuration: 12N14P
Stator diameter: 23mm
Stator length: 6mm
Shaft diameter: 4mm ( hollow )
No. of cells ( LiPo ): 3 - 5S
Max continuous ( power ( W ) 15S ): 950
Internal resistance: 33ohm
Max current ( 15S ): 45A
Item name: GEP - GR2306
KV: 2450, 2750
Configuration: 12N14P
Stator diameter: 23mm
Stator length: 6mm
Shaft diameter: 4mm ( hollow )
No. of cells ( LiPo ): 3 - 5S
Max continuous ( power ( W ) 15S ): 950
Internal resistance: 33ohm
Max current ( 15S ): 45A
Specification
General |
Brand: GEPRC
Type: Motor |
|---|---|
Dimension and Weight |
Product weight: 0.0320 kg
Package weight: 0.0580 kg Product size (L x W x H): 2.00 x 2.00 x 2.50 cm / 0.79 x 0.79 x 0.98 inches Package size (L x W x H): 4.00 x 4.00 x 3.50 cm / 1.57 x 1.57 x 1.38 inches |
Package Contents |
Package Contents: 1 x Motor, 1 x Set of Screws |
