Main Features:
- F3 6DOF FC + integrated OSD + 5V 3A, 12V 3A BEC
- 6 ESC solder pads, 5V / 12V solder pads for VTX and camera
- 4 x 3oz gold-plated PCB allows you to fly at full throttle

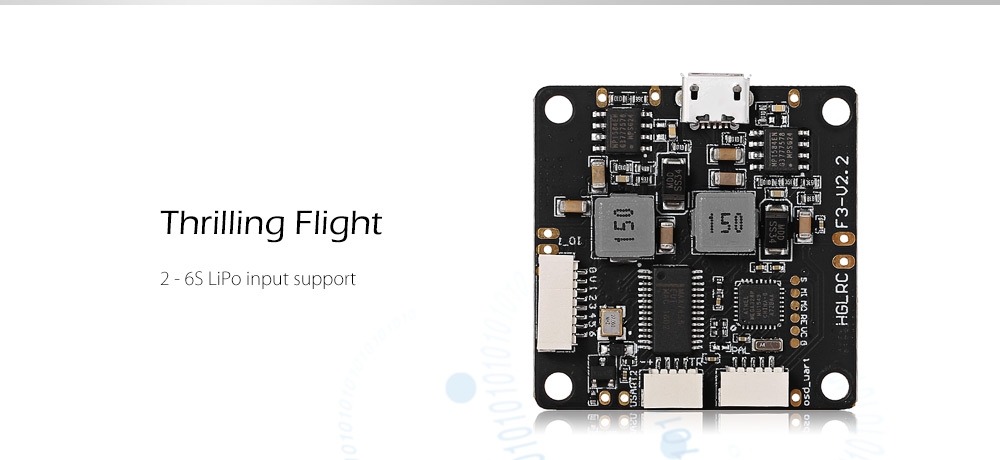

- 2 - 6S LiPo support, with 5 electrostatic protection circuits
- Automatically recognizes and switches OSD and USB function

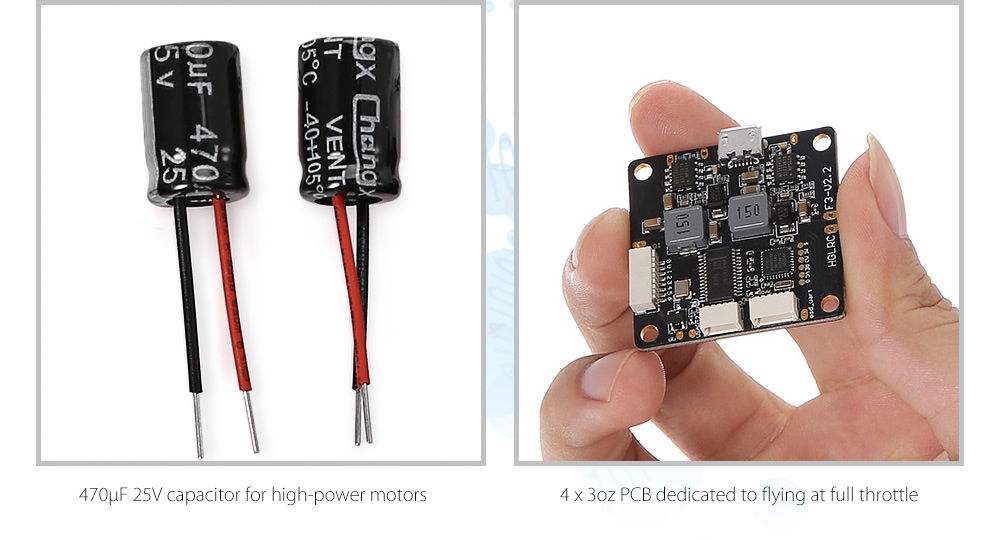

- With two 470uF 25V capacitors to work with high-power motors
Specifications:
Processor: STM32F303CCT6
Flash: 8MB
IMU: MPU6050
Power supply: 2 - 6S LiPo
Max. current capacity: 120A
BEC: 5V 3A, 12V 3A
OSD format: PAL ( default ) / NTSC ( configurable )
Specification
General |
Type: Flight Controller |
|---|---|
Flight Controller |
Flight Controller Type: F3 |
Dimension and Weight |
Product weight: 0.0090 kg
Package weight: 0.0440 kg Product size (L x W x H): 3.60 x 3.60 x 0.60 cm / 1.42 x 1.42 x 0.24 inches Package size (L x W x H): 11.30 x 1.60 x 16.00 cm / 4.45 x 0.63 x 6.3 inches |
Package Contents |
Package Contents: 1 x Flight Controller, 2 x 470uF 25V Capacitor, 3 x Cable, 1 x Pack of M3 Nylon Fittings |
