HGLRC F4 FLAME Flight Controller

HGLRC F4 FLAME Flight Controller
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Advanced STM32F405RGT6 processor, onboard 16MB flash for flight data logging
- MPU6000 connected via SPI, high-speed data sampling
- BetaFlight OSD designed for tuning PID via transmitter
- Integrated with current sensor and 5V 3A BEC
- 6 x 3oz copper PCB supports 2 - 6S LiPo and up to 300A current

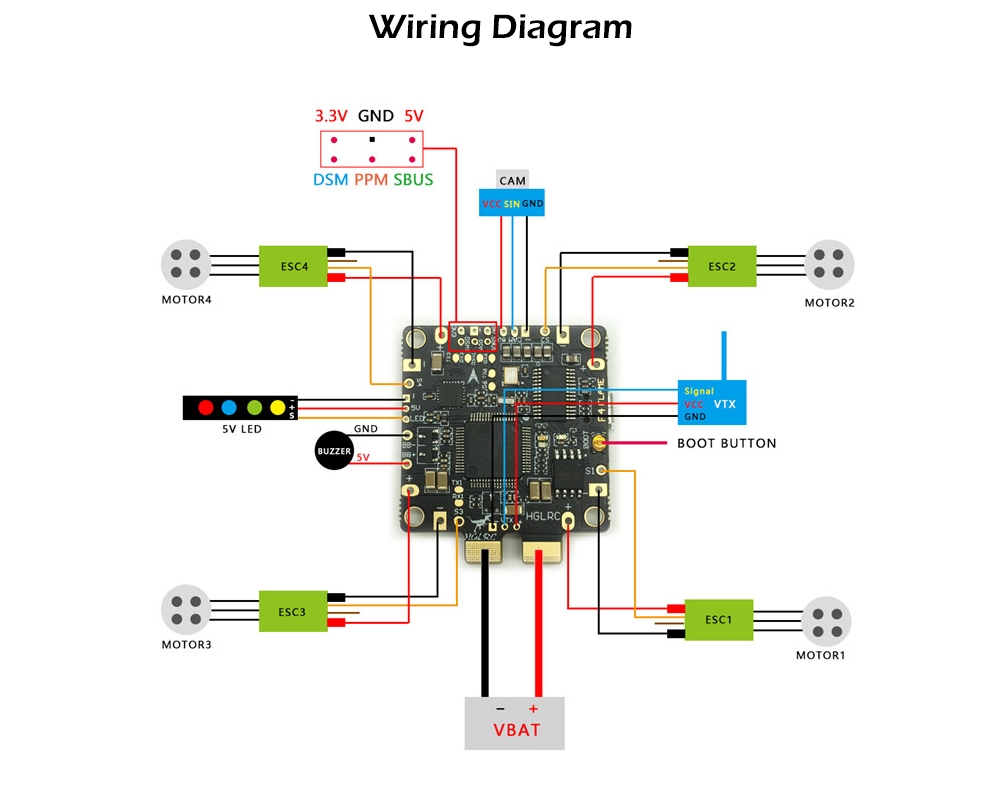

- Compatible with mainstream receivers, such as SBUS / PPM / DSMX receivers etc.
- Supports buzzer, LED strip, voltage monitoring, and BLHeli - S ESC programming

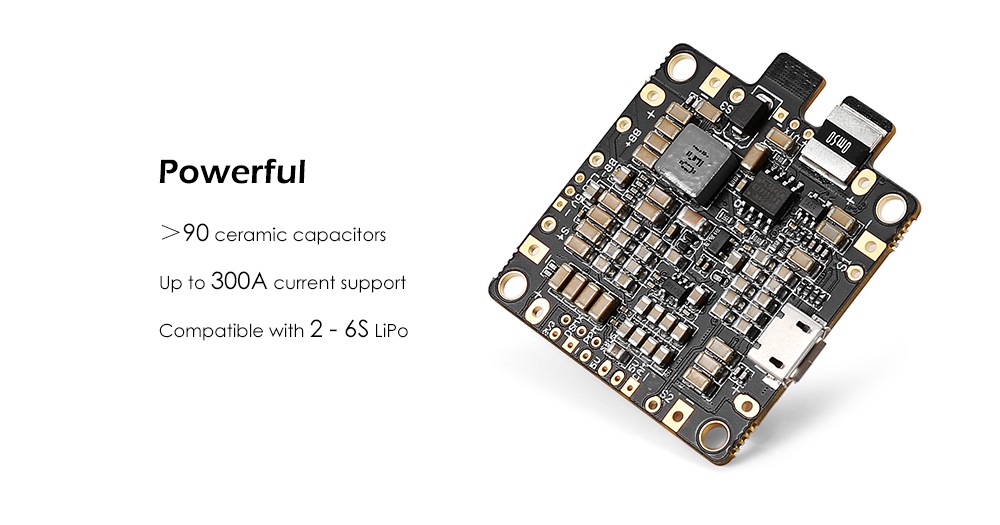

- Over 90 imported ceramic capacitors, resistant to high voltage, reduce counter electromotive force for clear FPV

Specifications:
Processor: STM32F405RGT6
IMU: MPU6000
Firmware: BetaFlight
Power supply: 2 - 6S LiPo
Max. current support: 300A
BEC: 5V 3A
Mounting hole spacing: 30.5 x 30.5mm

Specification

General

Type: Flight Controller

Dimension and Weight

Product weight: 0.0110 kg
Package weight: 0.0340 kg
Product size (L x W x H): 3.60 x 4.10 x 0.60 cm / 1.42 x 1.61 x 0.24 inches
Package size (L x W x H): 5.40 x 5.70 x 2.00 cm / 2.13 x 2.24 x 0.79 inches

Package Contents

Package Contents: 1 x Flight Controller, 1 x Pack of Nylon Fittings
