Holybro Shuriken X1 F3 DSMX/XSR/Futaba Assemble FPV Racer with 40CH VTX 600TVL Camera BNF
With GoPro Camera Protector , GoPro Camera is not included
Descriptions:

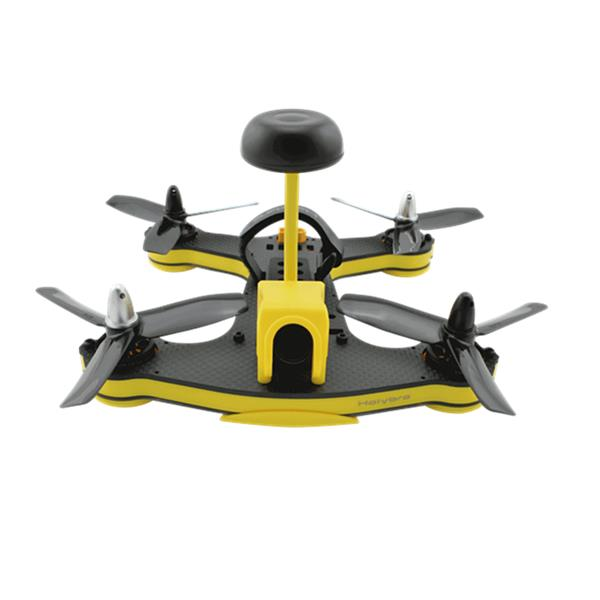

Shuriken X1 is a high performance FPV racing drone of the latest design from Holybro. Shuriken X1 has FC; OSD; PDB and VTX all highly integrated, which enables us to get all those modules assembled
expediently without additional welding works. The height of this racing drone is very much lower than those conventional X frames, even when it has the Gopro Session mounted on it. Shuriken X1 consists of those components with the best performance and reputation.Just take it out of the box and enjoy the very fierce but yet stable flying!
Specification:
Flight Controller : 32-bit F3 Flight Controller , MPU6050 Gyro/Accelerometer
ATmega328P with Arduino Bootloader(minim OSD)
MAX7456 Monochrome On-Screen Display(minim OSD)
FTDI Cable Compatible Pinout(minim OSD)

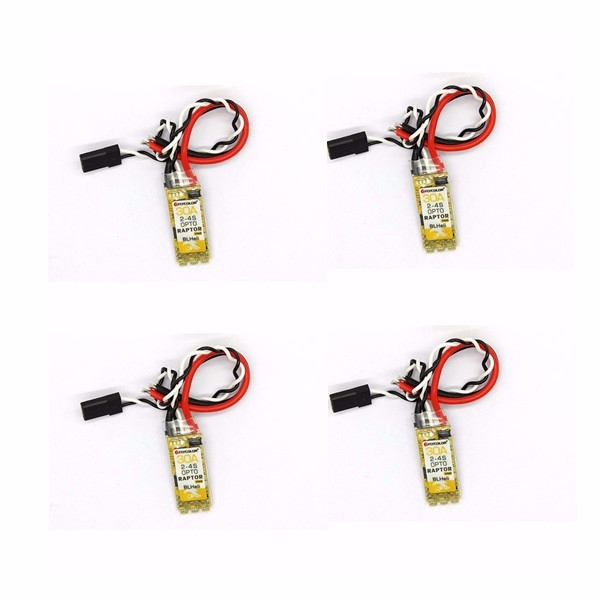

OneShot125 BLheli S 30A / 40A burst BLHeli ESC's
2305-2600kv Motors (T-MOTOR)
Compact size for 5" propellers, 200mm motor to motor.
Input voltage 7v to 42v.
PCB Maximum Continuous Current 120A
Filtered voltage output - output 5.2v 2A
Weight: About 370g without battery
Features:
Full 3K Carbon Fiber
Nickel-plated 12.9 screws
Easy grip black anodized spacers
FC;OSD;PDB;VTX and voltage/current sensor are all integrated in one PCB which makes an integral structure with a much lower barycentre
5.8GHz, 200/600mw switchable, 40 Channel Vtx with built in push button switching and channel display
High quality spiroNet antenna
Intergrated MWOSD (firmware V1.5 preloaded)
1/3 SONY Super HAD II CCD, PAL, 600TVL Camera, 2.5mm Lens
S.bus, DSMX, or PPM Receivers Compatible
3-colour LED board included controlled by LED Trip signal
Two mounting positions for the FPV Camera: one for a 0°~40° view angle, a second mounting position for 35°~70° view angle
Included TPU GoPro Session mount. HD Camera angle 35°
BetaFlight Pre-loaded
Necessary Part(not included):
Battery
Remote Control Transmitter
Remote Control Transmitter
Package Included: (Battery,Remote Control Transmitter are not included)
1 x Shuriken X1
1 x Flight Contoller
1 x PDB
1 x Receiver
4 x ESC
4 x 2305 Motor
8 x 5 Inch Propeller
1 x 40CH VTX
1 x 600TVL Cam
1 x 5.8G 4 leaf antenna
1 x Gopro session protector (TPU 3D Print)
2 x Battery strap
