Main Features:

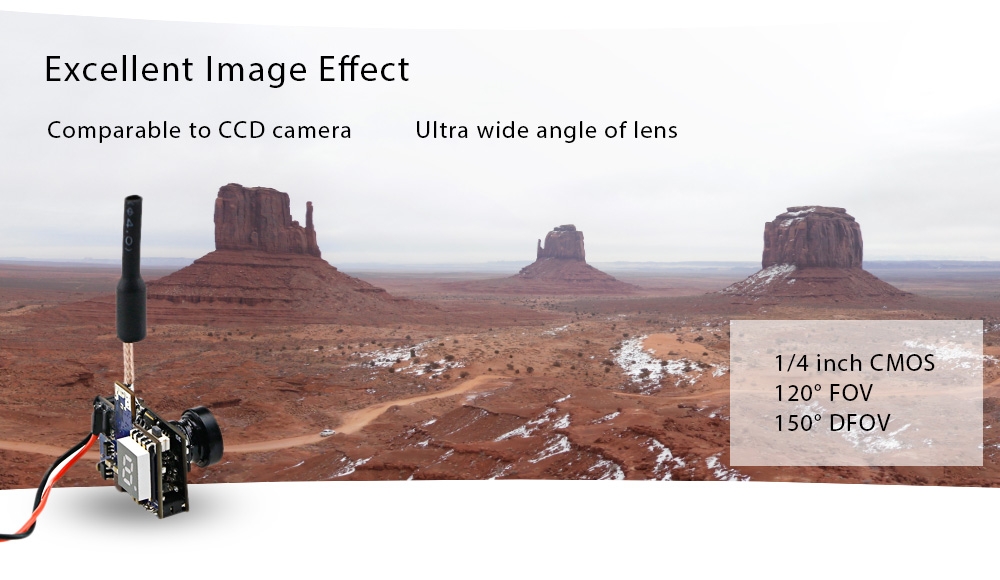

- Its CMOS sensor produces the image effect as excellent as that of a CCD sensor
- 800TVL HD wide-angle lens offers you 120-degree FOV, 150-degree DFOV
- Its parameters and the angle of the lens are specially designed for FPV and well tested

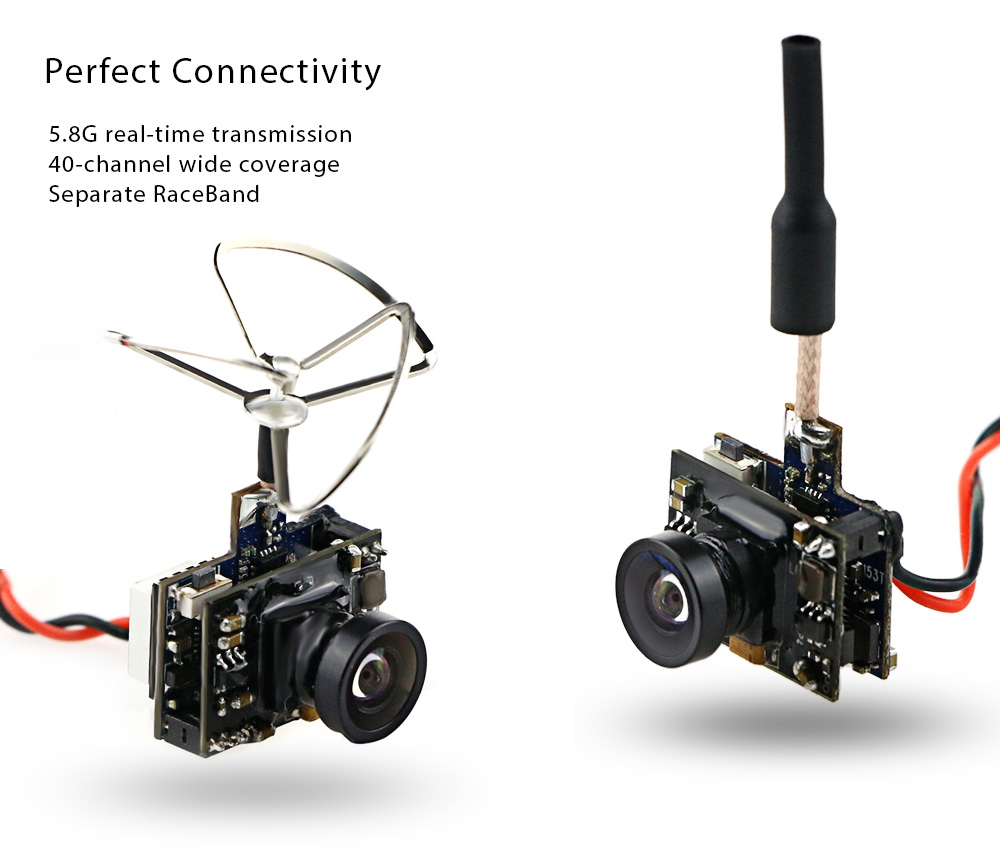

- 5.8GHz real-time image transmission, 40-channel coverage ( including RaceBand )

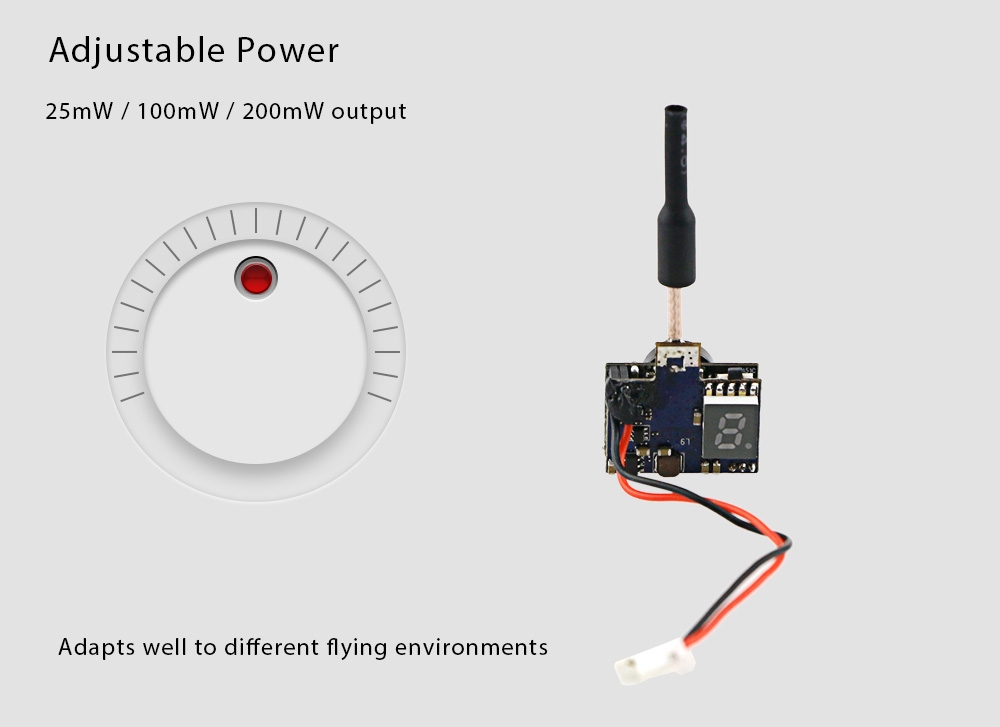

- 25mW / 100mW / 200mW adjustable output for different flying environment
Specifications:
Sensor: 1/4 inch CMOS
Lens: M7 800TVL
Angle of view: 120-degree FOV; 150-degree DFOV
TV system: PAL / NTSC
Operating voltage: 3.7 - 5.5V
Operating current: 250 - 510mA 25mW ( 14dBm ); 270 - 640mA 100mW ( 17dBm ); 330 - 740mA 200mW ( 23dBm )
Output power: 25mW / 100mW / 200mW switchable
Output impedance: 50 ohm
Frequency: 5.8GHz

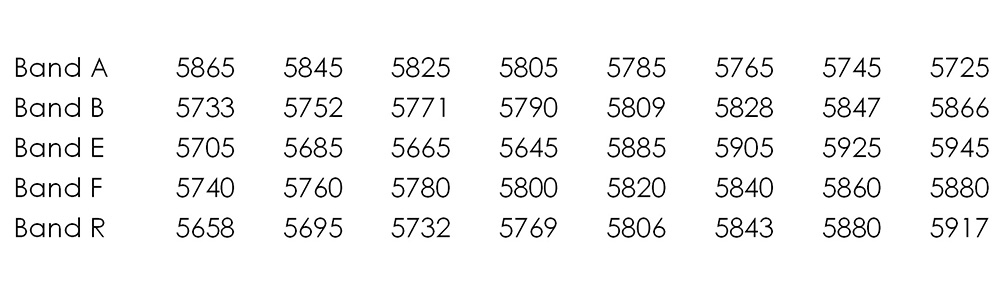

Channels: 40 ( including RaceBand )
Note:
There are two cable styles, either intertwined or straight, which is subject to stock availability.
Click here to know more and choose the right antenna for yourself.
Specification
General |
FPV Equipments: FPV Mini Camera |
|---|---|
Camera |
Sensor: CMOS |
FPV System |
Image Transmission Power: 25mW / 100mW / 200mW |
Dimension and Weight |
Package weight: 0.0490 kg
Product size (L x W x H): 1.95 x 1.40 x 3.00 cm / 0.77 x 0.55 x 1.18 inches Package size (L x W x H): 9.50 x 6.00 x 4.00 cm / 3.74 x 2.36 x 1.57 inches |
Package Contents |
Package Contents: 1 x FPV Camera, 1 x English Manual |
