Specifications:

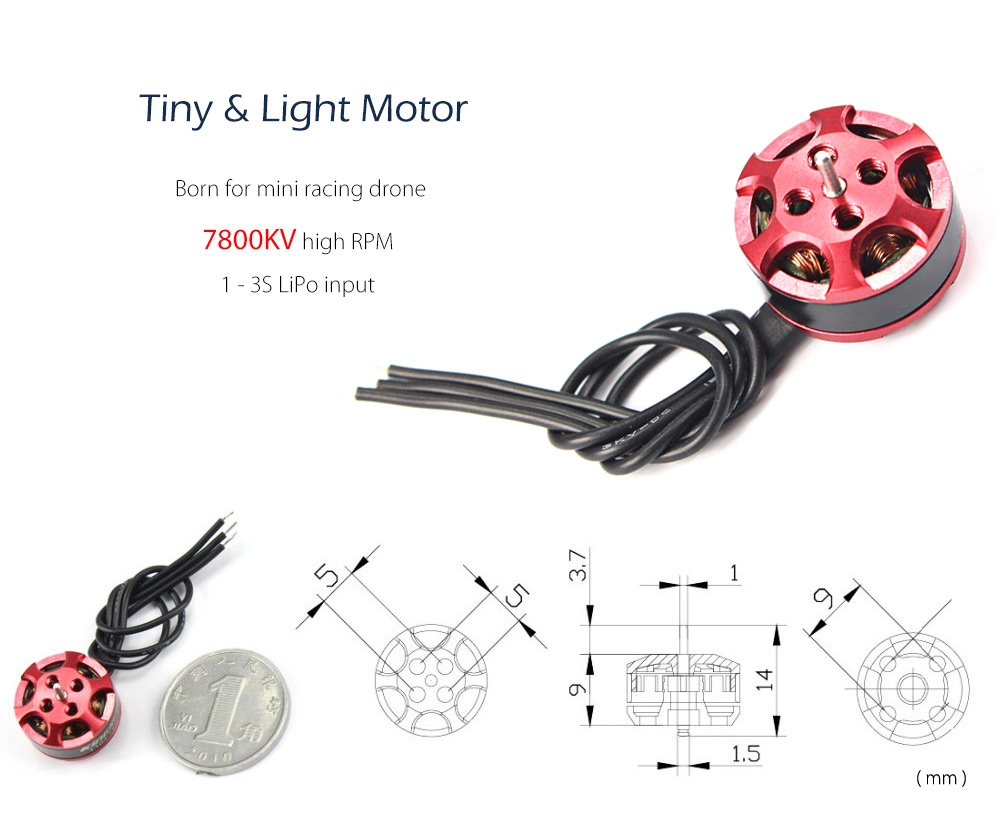

Motor
Model: 1103
KV: 7800
Shaft diameter: 1mm
Height: 14mm
Weight: about 3.9g / piece
Voltage input: 3.7 - 11.1V
Compatible propeller size: 45 - 65mm / 2 - 3 inches

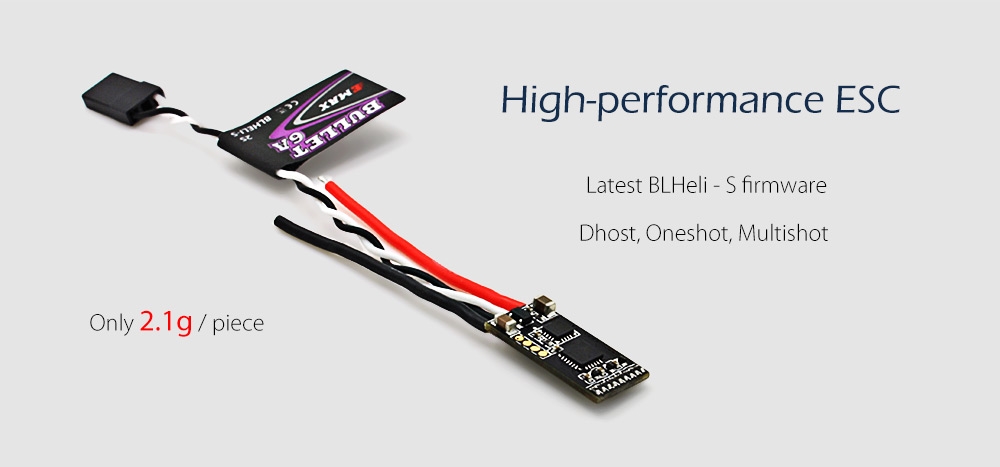

ESC
Continuous current: 6A
Burst current: 10A
Voltage input: 2S LiPo
Dimensions: 9.4 x 21.5mm
Weight: 2.1g / piece
MCU: EFM8BB2
BEC: no
Note:
The coin in the picture is not included.
Specification
General |
Brand: KingKong
Type: ESC,Motor Set |
|---|---|
Motor |
Model: 1103
Motor Type: Brushless Motor KV: 7800 Shaft Diameter: 1mm No. of Cells: 1 - 3S CW / CCW: CCW,CW Operating Voltage / Current: 3.7 - 11.1V Compatible Propeller Sizes: 45 - 65mm / 2 - 3 inches |
Electronic Speed Controller |
Firmware: BLHeli-S
Functions: DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42 Continuous Current: 6A Burst Current: 10A |
Dimension and Weight |
Package weight: 0.0600 kg
Package size (L x W x H): 5.50 x 3.00 x 2.50 cm / 2.17 x 1.18 x 0.98 inches |
Package Contents |
Package Contents: 4 x Motor, 4 x ESC, 1 x Pack of Screws |
