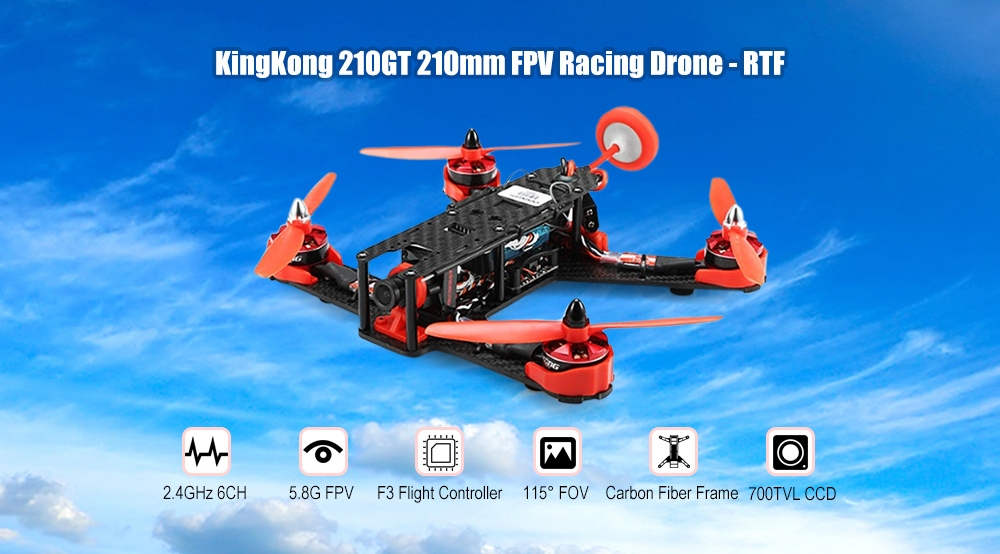

KingKong 210GT 210mm FPV Racing Drone - RTF

KingKong 210GT 210mm FPV Racing Drone - RTF
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)

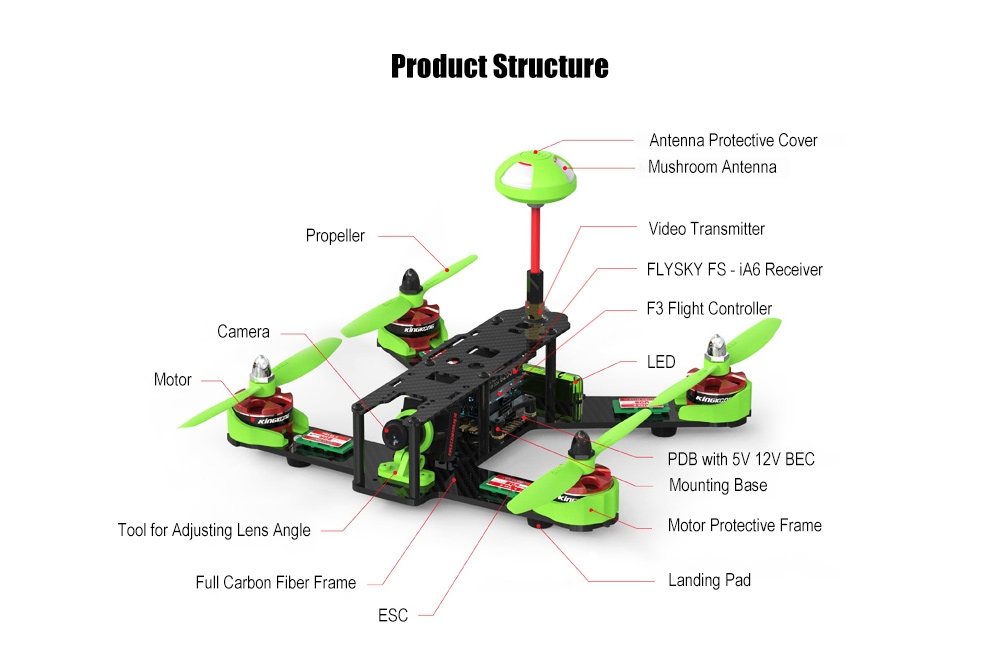

Main Features:
- Premium carbon frame, strong and lightweight

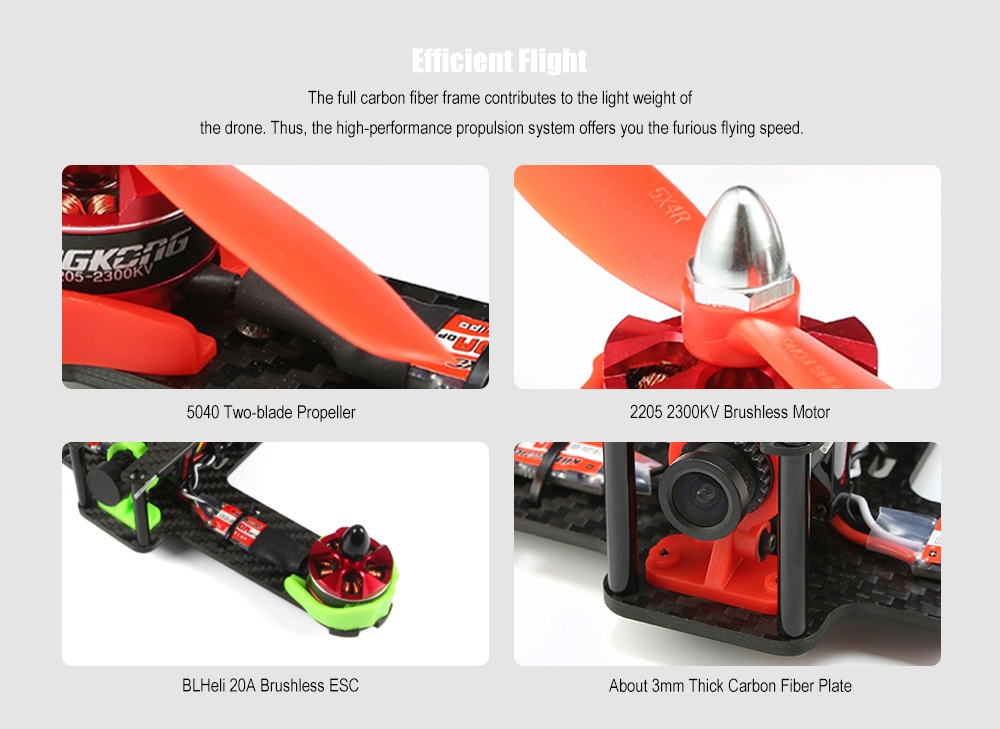

- Powerful 2205 2300KV brushless motors, 20A OPTO BLHeli ESC
- F3 flight control system dedicated for high-performance flight
- 5.8G real-time FPV, 32-channel coverage, 600mW high power for flying farther

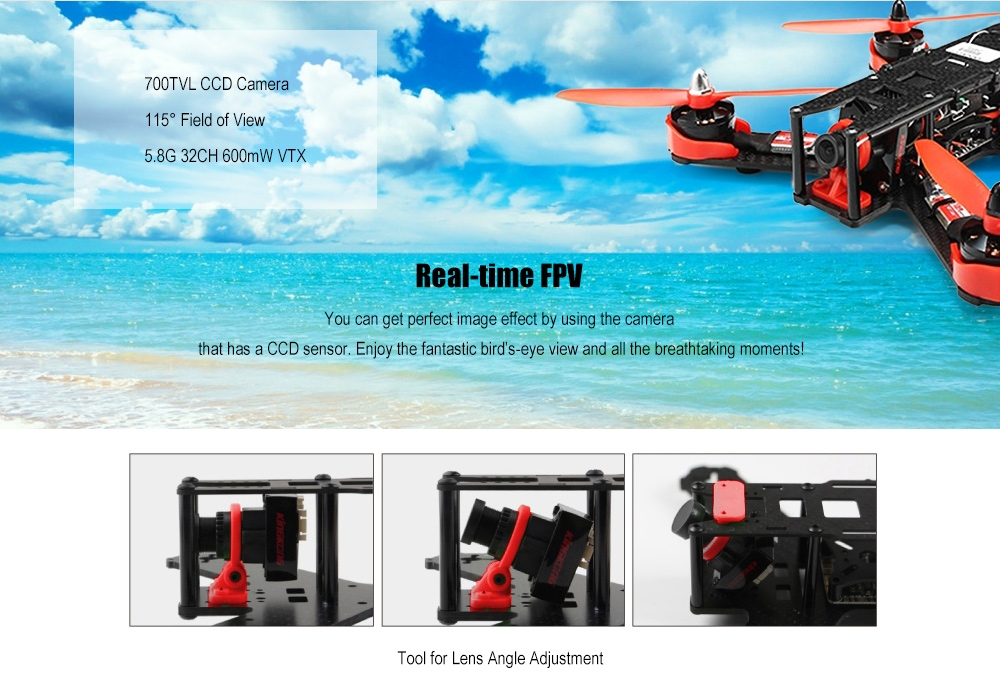

- 700TVL CCD camera with 115-degree FOV features good imaging effect at night
- Standard camera holder with vertically adjustable angle
- Bright multi-color LEDs with lampshade at the rear

Specifications:
General
Model: 210GT
Upper plate: 1.5 + / - 0.2mm
Bottom plate: 3.0+ / - 0.2mm
Flight controller: micro F3
Propeller: 5040
Motor: 2205 2300KV ( 2 - 4S )
ESC: BLHeli 20A 2 - 4S
Video transmitter: 5.8G 32CH 600mW
Antenna polarization: RHCP
Transmitter: FLYSKY FS - i6 transmitter
Receiver: FS - iA6 receiver
Battery: 1300mAh 3S 11.1V 25C
Weight: 306g

BLHeli 20A ESC
Processor: MEGA88A ( 16MHz )
Rated voltage: 2 - 4S LiPo
Continuous current: 20A
Burst current: 25A ( max. 5 seconds )
BEC: no
Size: 25 x 12 x 3mm
Net weight: 4g

700TVL CCD Camera
Video format: PAL / NTSC
FOV: 115 degree
Lens: F2.0 / 2.8mm
Voltage: DC 8 - 18V
Weight: 16.4g

5.8G 600mW 32CH Video Transmitter
Video format: NTSC / PAL
Voltage: 5V
Transmission power: 600mW

FS - i6 Transmitter
Channels: 6
RF range: 2.4055 - 2.475GHz
RF power: less than 20dBm
RF channels: 160
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFHDS
Modulation type: GFSK
Resolution: 1024
Low voltage warning: yes, when lower than 4.2V
Data output: PS2, PPM
Antenna length: 26mm ( built-in dual antennas )
Weight: 392g
Power supply: 4 x 1.5AA ( 6V DC, not included ), nonchargeable
Display: 128 x 64px transflective STN positive screen with backlight, VA 73 x 39mm
Online update: yes
Size: 174 x 89 x 190mm
Color: black
Certificate: CE0678, FCC

FS - iA6 Receiver
Channels: 6
RF range: 2.4 - 2.48GHz
RF channel: 140
RF receiver sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A
Modulation type: GFSK
Power: 4.0 - 6.5V DC
Antenna length: 26mm ( built-in dual antennas )
Weight: 7g
Size: 40.4 x 21.1 x 7.35mm
Certificate: CE0678, FCC

Specification

General

Brand: KingKong
Type: Frame Kit

Racing Quadcopter Parameters

Wheelbase: 210mm

Motor

Model: 2205
KV: 2300
No. of Cells: 2 - 4S LiPo
CW / CCW: CCW,CW

Connectivity

Channel: 6-Channels
Remote Control: 2.4GHz Wireless Radio Control
Mode: Mode 2 (Left Hand Throttle)
Transmitter Power: 4 x 1.5V AA (not included)

Camera

Video Resolution: 700TVL
Video Standards: NTSC,PAL
Sensor: CCD

Electronic Speed Controller

Firmware: BLHeli
Continuous Current: 20A
Burst Current: 25A
Input Voltage: 2 - 4S

Battery

Battery (mAh): 1300mAh 3S 11.1V 25C LiPo ( included )

Dimension and Weight

Product weight: 0.306 kg
Package weight: 1.425 kg
Package size (L x W x H): 36.00 x 29.00 x 16.00 cm / 14.17 x 11.42 x 6.3 inches

Package Contents

Package Contents: 1 x Frame Kit, 1 x FLYSKY FS - i6 Transmitter, 1 x 1300mAh 3S 11.1V 25C LiPo Battery, 1 x Charger, 1 x Antenna, 10 x Pair of 5040 Propellers, 1 x Battery Strap
