Main Features:

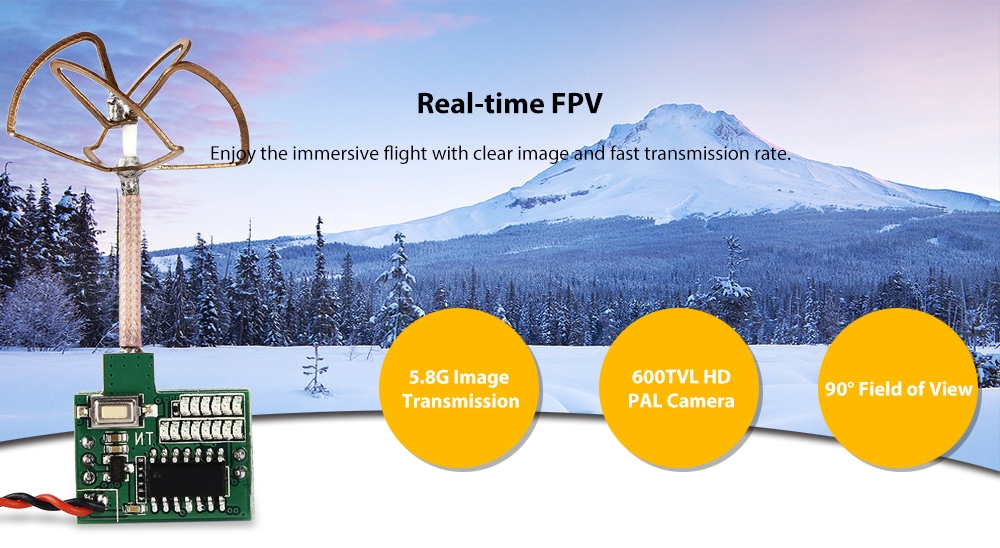

- Micro size and light weight, 25mW output power, ideal for building indoor racing drones
- Easy to install with all-in-one integration, reducing soldering and wiring

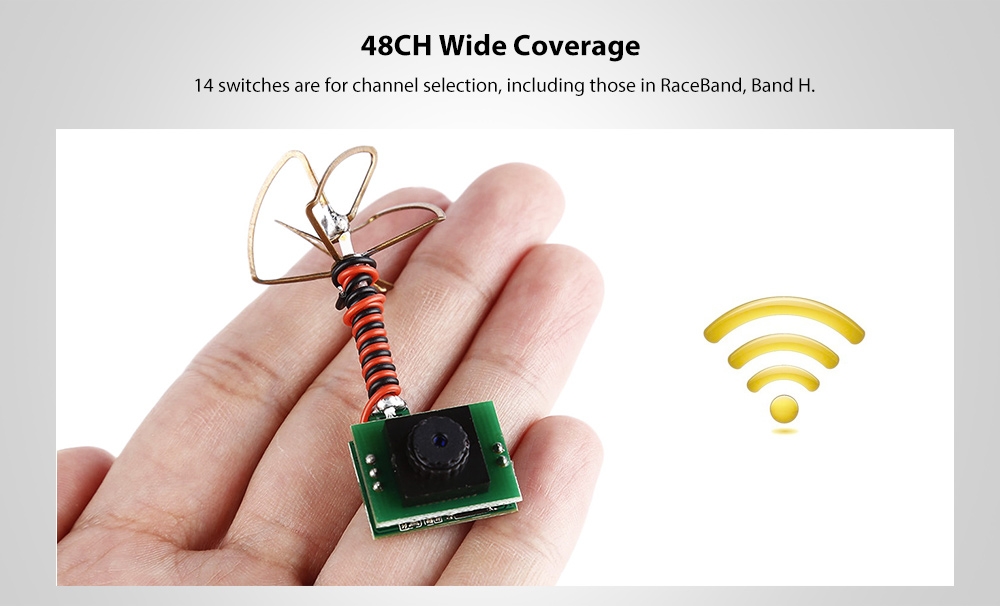

- 48-channel signal coverage, omnidirectional cloverleaf antenna
- Supports 3.7 - 10V wide input voltage range, i.e., direct connection with 1 - 2S LiPo battery
Specifications:
Camera
Sensor: 1/3 inch CMOS
Resolution: 600TVL
Field of view: 90 degree
TV system: PAL
Power consumption: 200mA at 5V
Power supply: 3.7 - 10V
Lens mirror diameter: 2.9mm
Weight: 7g

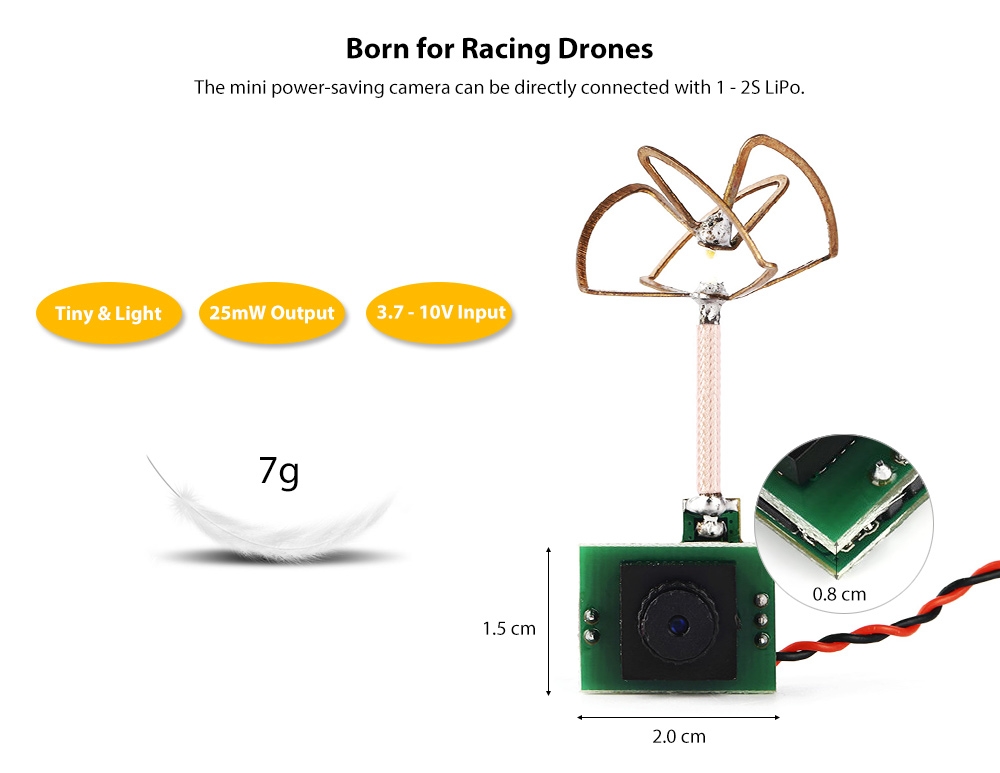

Size: 2.0 x 1.5 x 0.8cm ( not including protrusion parts )
Video Transmitter
Frequency: 5645 - 5945MHz

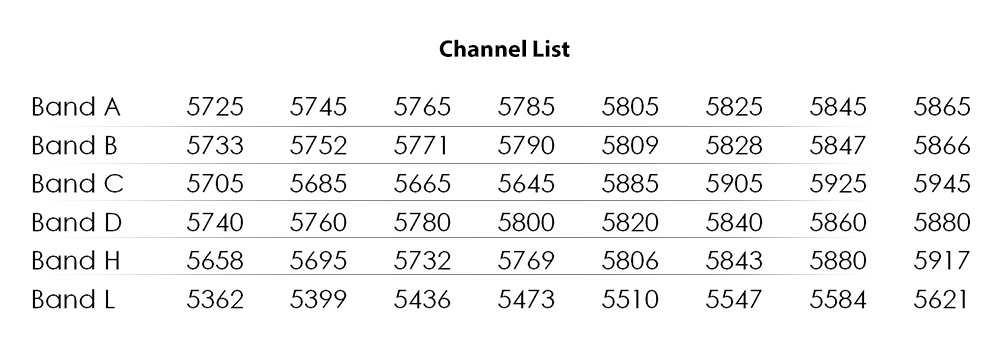

Channels: 48
TV system: PAL
Output impedance: 50 ohm
Output signal strength: 13 + / - 1dBm
Output power: 25mW
Operating voltage: 3.7 - 10V
Operating current: 100mA
Audio carrier: 6.5MHz
Specification
General |
FPV Equipments: FPV Mini Camera |
|---|---|
Dimension and Weight |
Product weight: 0.007 kg
Package weight: 0.030 kg Product size (L x W x H): 2.00 x 1.50 x 0.80 cm / 0.79 x 0.59 x 0.31 inches Package size (L x W x H): 3.00 x 2.50 x 1.80 cm / 1.18 x 0.98 x 0.71 inches |
Package Contents |
Package Contents: 1 x FPV Camera |
