Description:

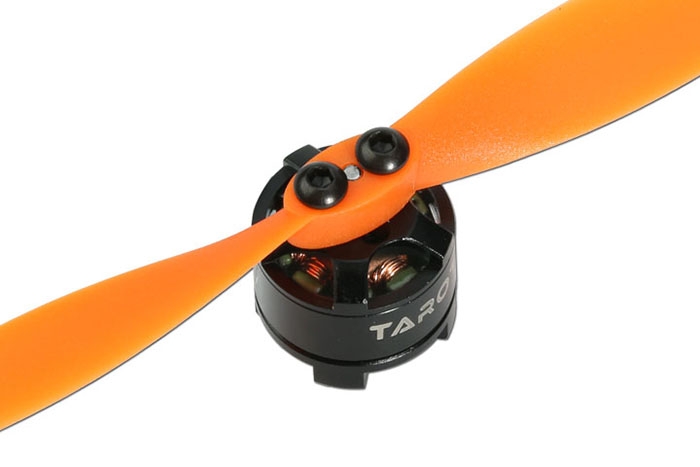

Tarot MT1104-4000KV brushless motor suitable for 120 / 130 and other multiaxis machine through the high-end configuration, the proposed four-axis flight control weight of 180g ( single pull up to 120g ). MT1104 brushless motor has extremely low center of gravity, using 0.20mm ultra-thin high-efficiency silicon steel ( primary propeller shaft folder structure ) so that it can get the best concentricity guaranteed. A highly efficient bulk active pad designed to achieve lower operating temperature means higher productivity.
MT2204 brushless motor owns excellent balancing performance, the motor base mounting holes has 9mm, compatible with most rack-mount among the market, retain the appearance and consistency of conventional motor, high floating coil protection.
Specifications:
The number of battery support: 3S
Installation paddle diameter: 5mm
Propeller: 3 inch 2 blade propeller TL150S1 / TL150S2
Stator diameter: 11mm
Stator end thickness: 4.0
Stator end: 9
Motor poles: 12
Speed: 4000KV plus or minus 5 percent
Outside motor diameter: 14mm
Axial diameter: 1.5mm
Motor height: 17.5mm
Tarot MT1104-4000KV brushless motor suitable for 120 / 130 and other multiaxis machine through the high-end configuration, the proposed four-axis flight control weight of 180g ( single pull up to 120g ). MT1104 brushless motor has extremely low center of gravity, using 0.20mm ultra-thin high-efficiency silicon steel ( primary propeller shaft folder structure ) so that it can get the best concentricity guaranteed. A highly efficient bulk active pad designed to achieve lower operating temperature means higher productivity.
MT2204 brushless motor owns excellent balancing performance, the motor base mounting holes has 9mm, compatible with most rack-mount among the market, retain the appearance and consistency of conventional motor, high floating coil protection.
Specifications:
The number of battery support: 3S
Installation paddle diameter: 5mm
Propeller: 3 inch 2 blade propeller TL150S1 / TL150S2
Stator diameter: 11mm
Stator end thickness: 4.0
Stator end: 9
Motor poles: 12
Speed: 4000KV plus or minus 5 percent
Outside motor diameter: 14mm
Axial diameter: 1.5mm
Motor height: 17.5mm
Specification
General |
Type: Motor |
|---|---|
Motor |
Motor Type: Brushless Motor |
Dimension and Weight |
Package weight: 0.050 kg
Package size (L x W x H): 3.00 x 5.00 x 10.00 cm / 1.18 x 1.97 x 3.94 inches |
Package Contents |

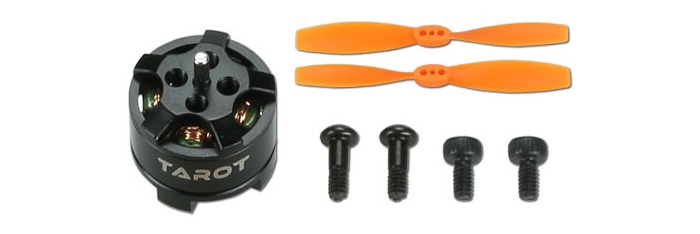

Package Contents: 1 x Motor, 2 x Propeller, 4 x Screw |
