Specification
| General | |
|---|---|
| Type | FPV Transmitter |
| Model | Skyzone Upgrade TS5828S |
| Quantity | 1 Piece |
| Channel | 40CH |
| Operating Voltage | 7V-24V |
| Supply Current | 300mA |
| Operating Temperature | -10~85 degrees |
| Video | Video Band Width : 0~8.0 MHz Video Input Level: 0.5~1.2 Vp-p Video Input Impedance : 75 Ohm |
| Audio | Audio Carrier Frequency : 6.5 MHz Audio Input Level : 0.5~2.0 Vp-p Audio Input Impedance : 10K Ohm |
| Connector | Connector: RP-SMA Female (Inner needle) Antenna Connector: RP-SMA Male (Inner hole) |
| Dimension/Weight | Dimension: 40 x 23 x 8mm Weight: 10g |
| Package Contents | |

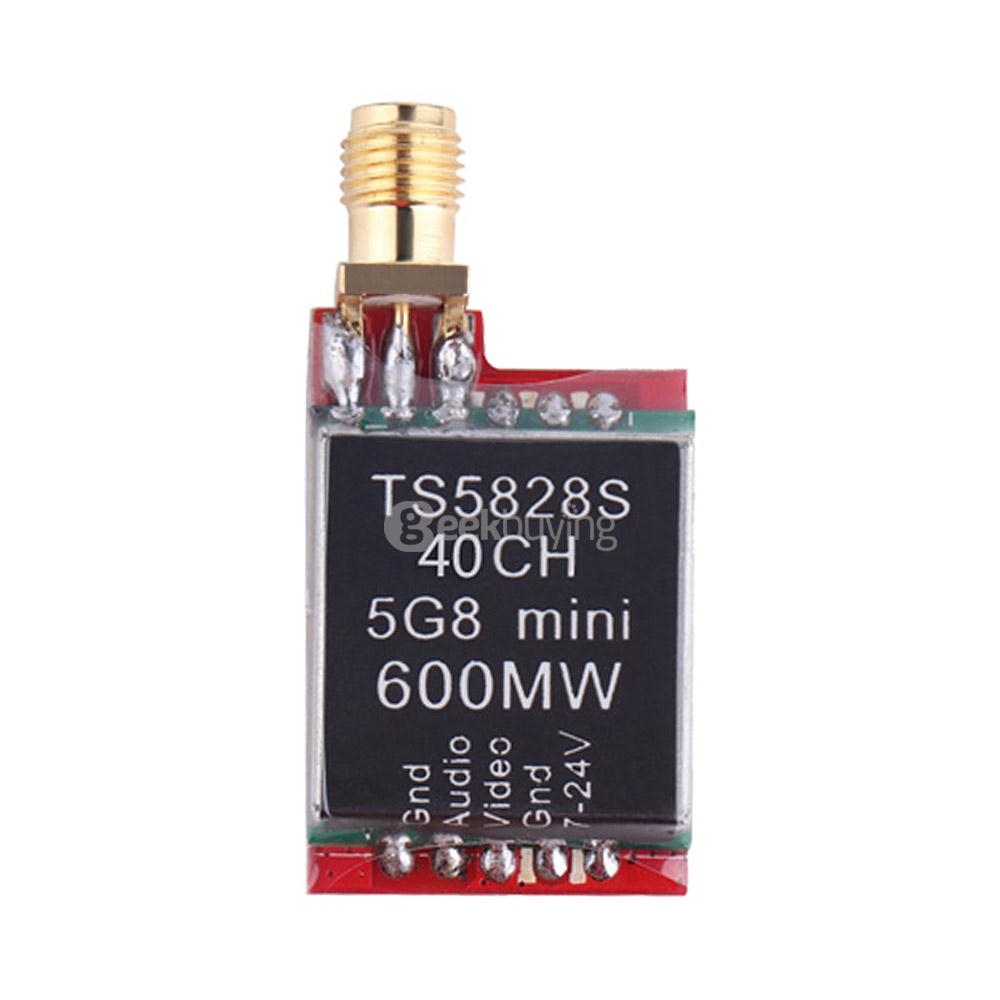

| 1 x TS5828S 40CH 5.8G 600MW FPV Transmitter | |
| 1 x Antenna | |
| 1 x Gopro3 video output cable | |
| 2 x connector cable | |
| 1 x Product Specification Table | |
