Specification:
Item Name: Specfly t-rs2000b monitor
Built-in 5.8Ghz Highly sensitive receiver
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Channel: 32 ch
Built-in high performance li-polymer Battery: 1500mAH/7.4V
Support 8 language menu
Format: NTSC/PAL

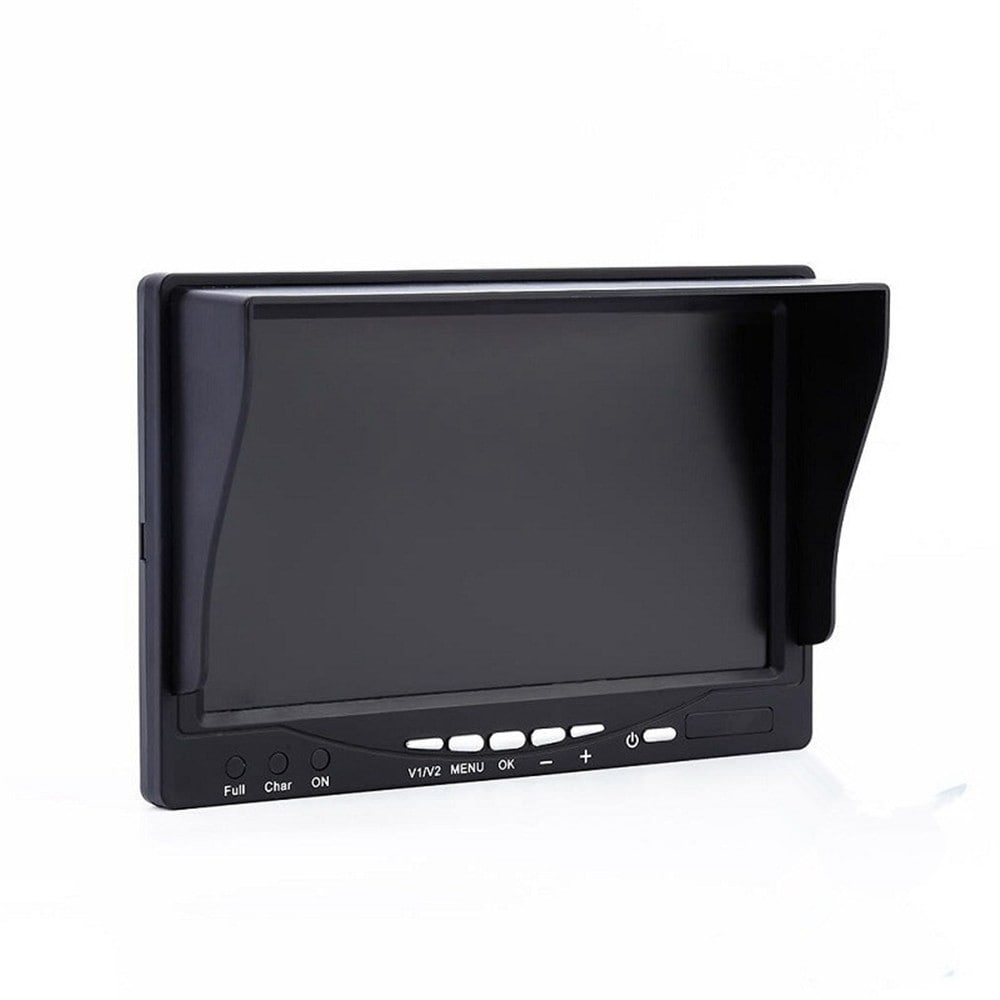

7 Inch Screen size:
Screen type:LCD Screen/long life, LED backlight

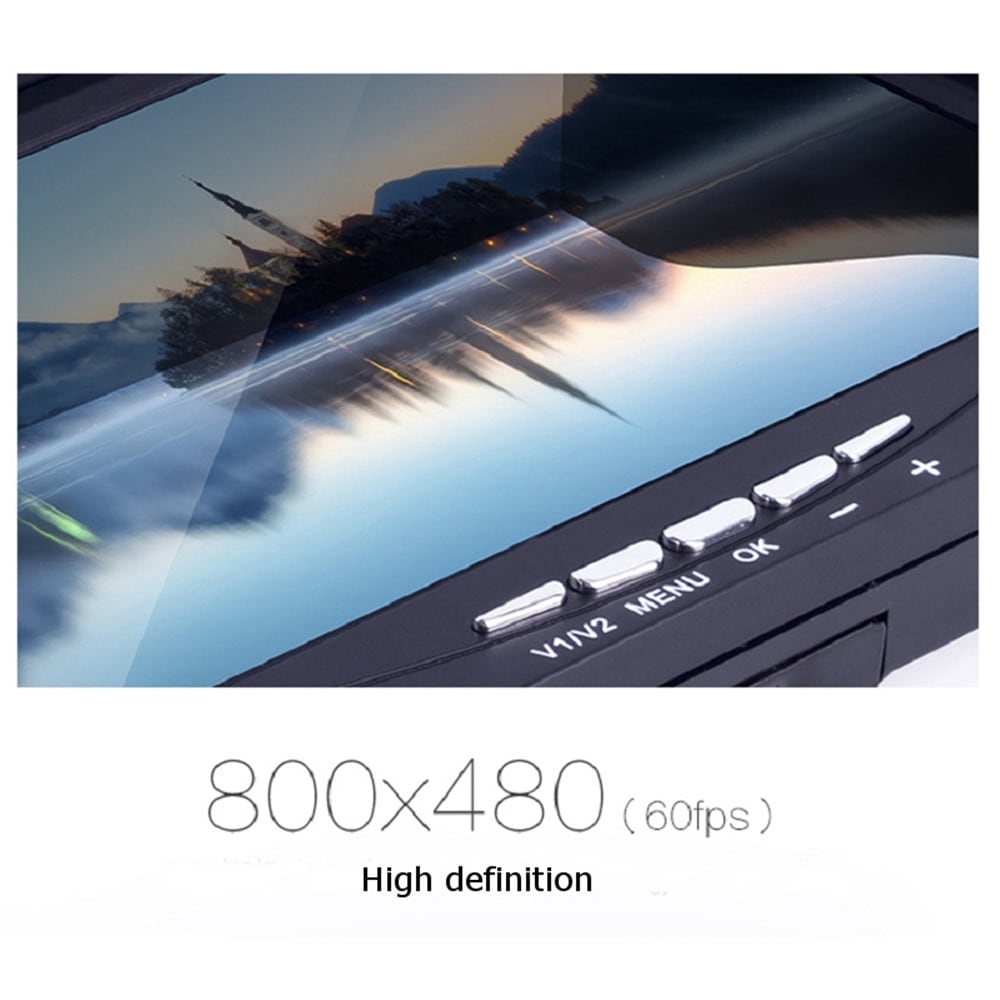

Resolution: 800 x 480
Zoom: 16:9
Brightness: 400 CD/m2
The View Angle: 150
Size:178mm x 118mm x 58mm(Note:Sunshield height:about 110mm)
Build - in : 2 s 1500 mah rechargeable
The Working Voltage: DC10 -24 v
The Power Consumption: 3.6 W
Working temperature: - 20 - 80

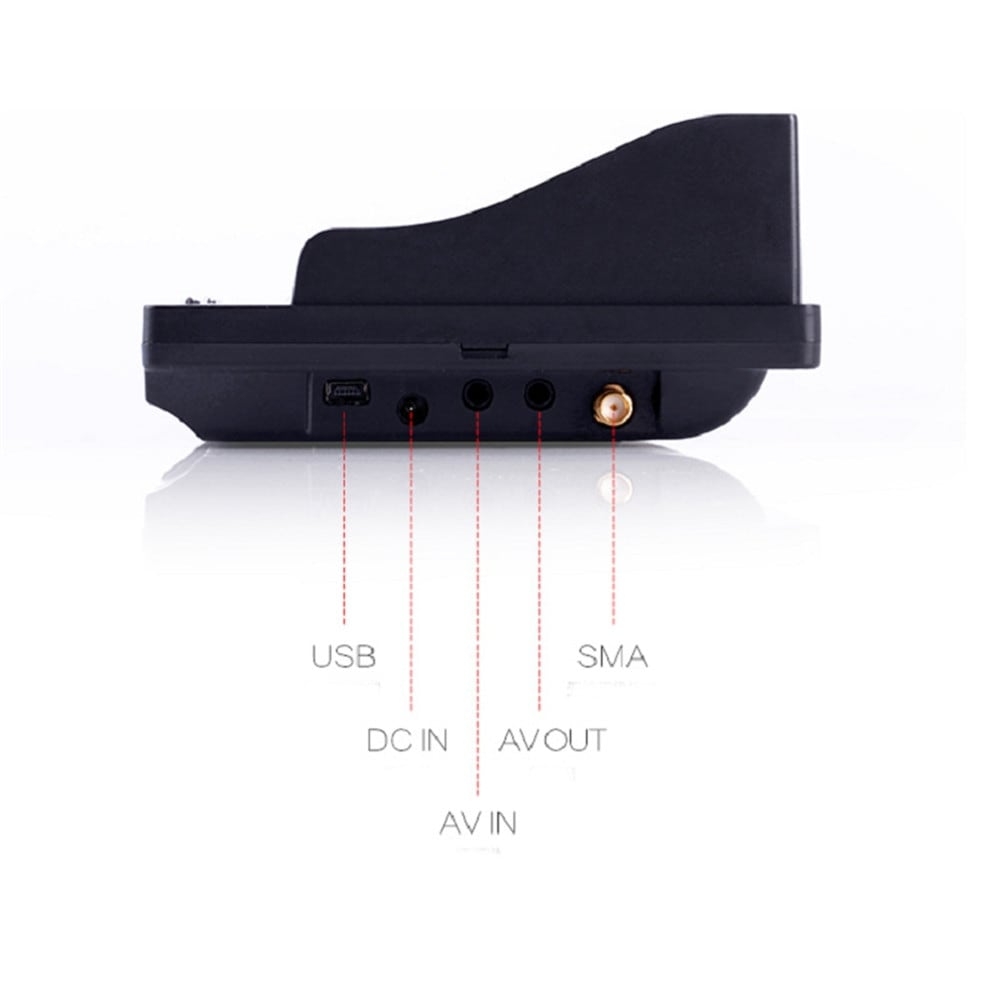

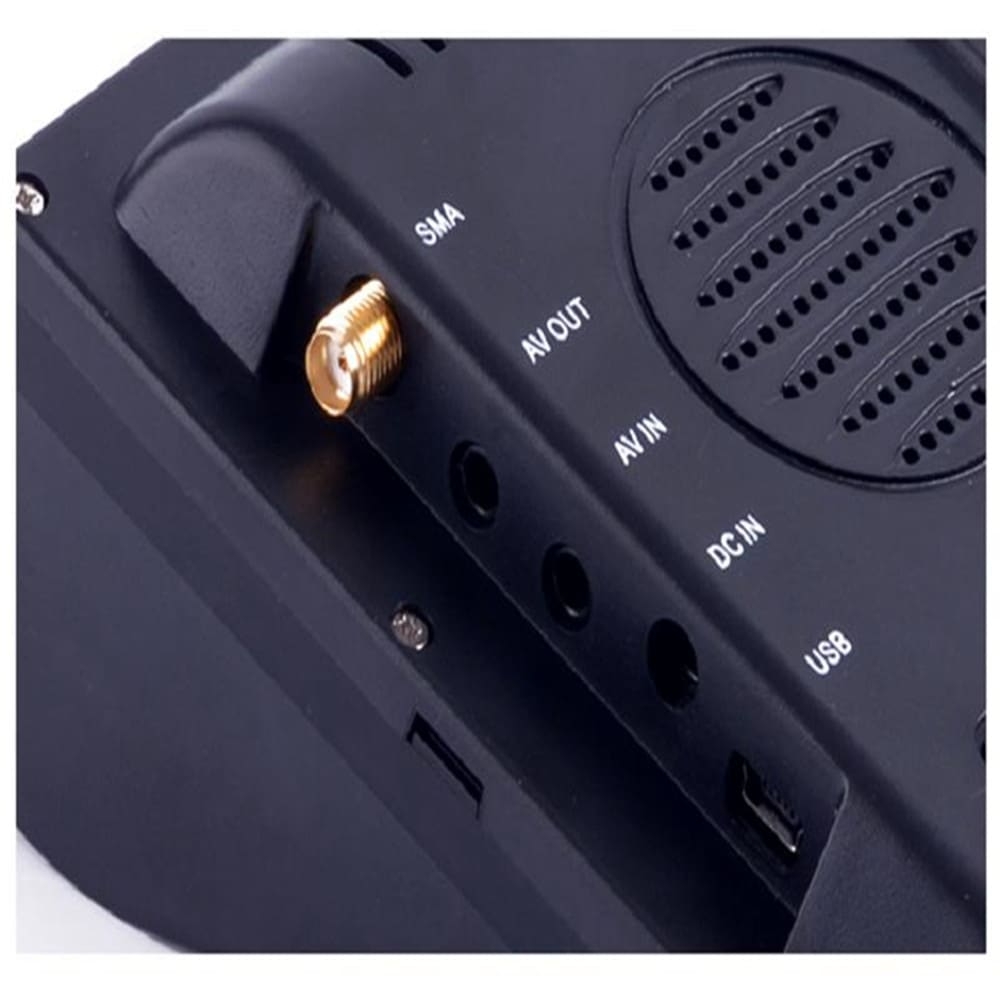

Connectors: RP - SMA Male
Antennas Connectors: RP - SMA Female
Item Name: Specfly t-rs2000b monitor
Built-in 5.8Ghz Highly sensitive receiver
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Channel: 32 ch
Built-in high performance li-polymer Battery: 1500mAH/7.4V
Support 8 language menu
Format: NTSC/PAL
7 Inch Screen size:
Screen type:LCD Screen/long life, LED backlight
Resolution: 800 x 480
Zoom: 16:9
Brightness: 400 CD/m2
The View Angle: 150
Size:178mm x 118mm x 58mm(Note:Sunshield height:about 110mm)
Build - in : 2 s 1500 mah rechargeable
The Working Voltage: DC10 -24 v
The Power Consumption: 3.6 W
Working temperature: - 20 - 80
Connectors: RP - SMA Male
Antennas Connectors: RP - SMA Female
Specification
Custom |
|
|---|---|
General |
FPV Equipments: AV Receiver
Functions: HDMI |
Dimension and Weight |
Product weight: 0.3800 kg
Package weight: 0.4830 kg Product size (L x W x H): 17.80 x 11.80 x 5.80 cm / 7.01 x 4.65 x 2.28 inches Package size (L x W x H): 23.20 x 13.30 x 6.60 cm / 9.13 x 5.24 x 2.6 inches |
Package Contents |

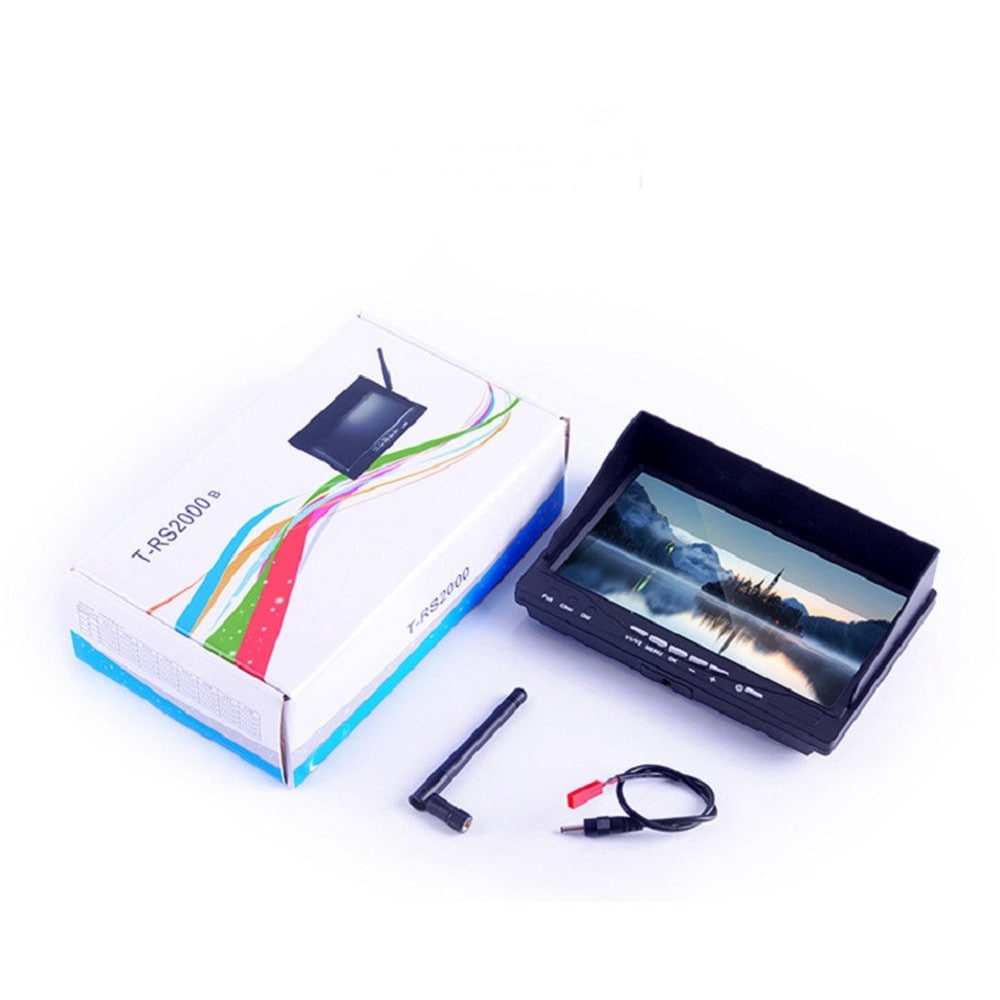

Package Contents: 1 x 7 LCD Screen Receiver Monitor with built in Rechargable Battery 1 x 5.8G Antenna 1 x Charger |
