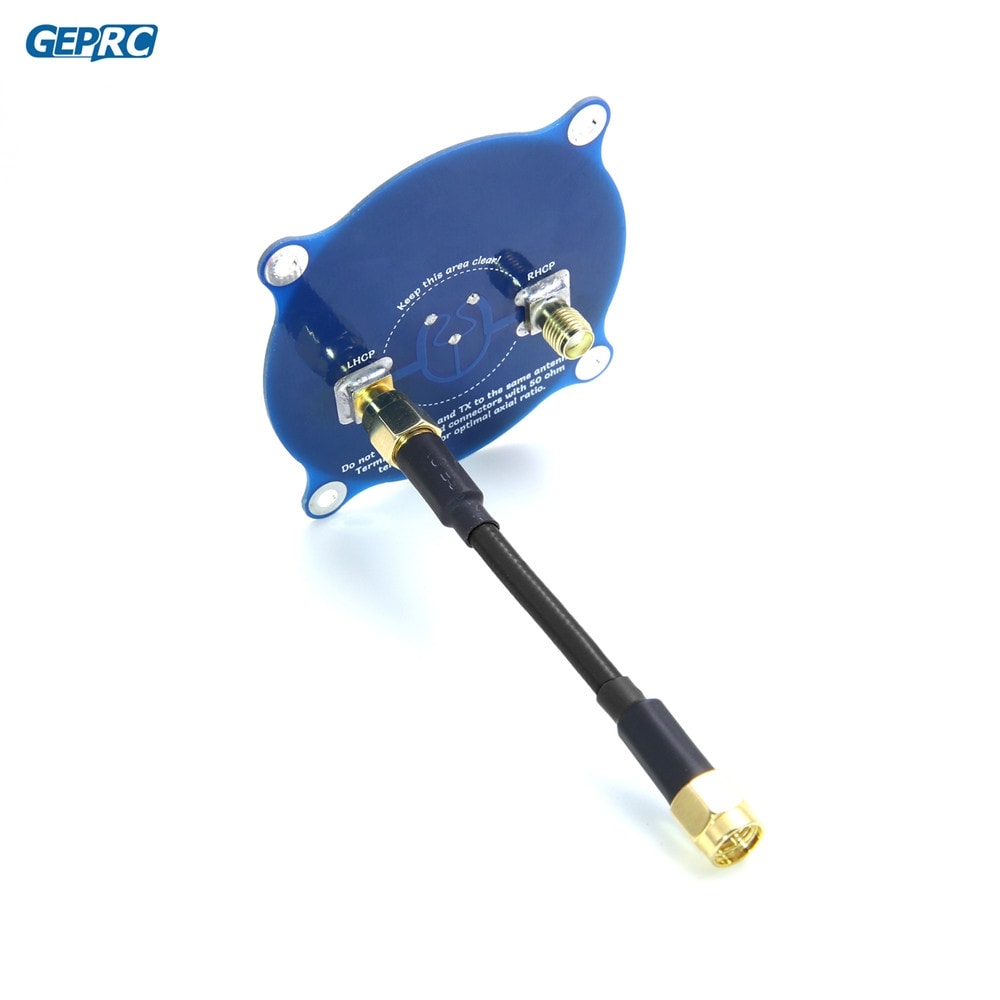

Specifications:
Center Frequency: 5.8GHz
Bandwidth: 660MHz(5.47-6.13GHz)
Match: S11 less than -20dB, VSWR less than 1.22(at center frequency)
Axial Ratio: less than 1.3
DBi Antenna Gain: 9.4
Half Power Beamwidth: 55degree(horizontal and vertical)
Radiation Efficiency: 83.5 percent

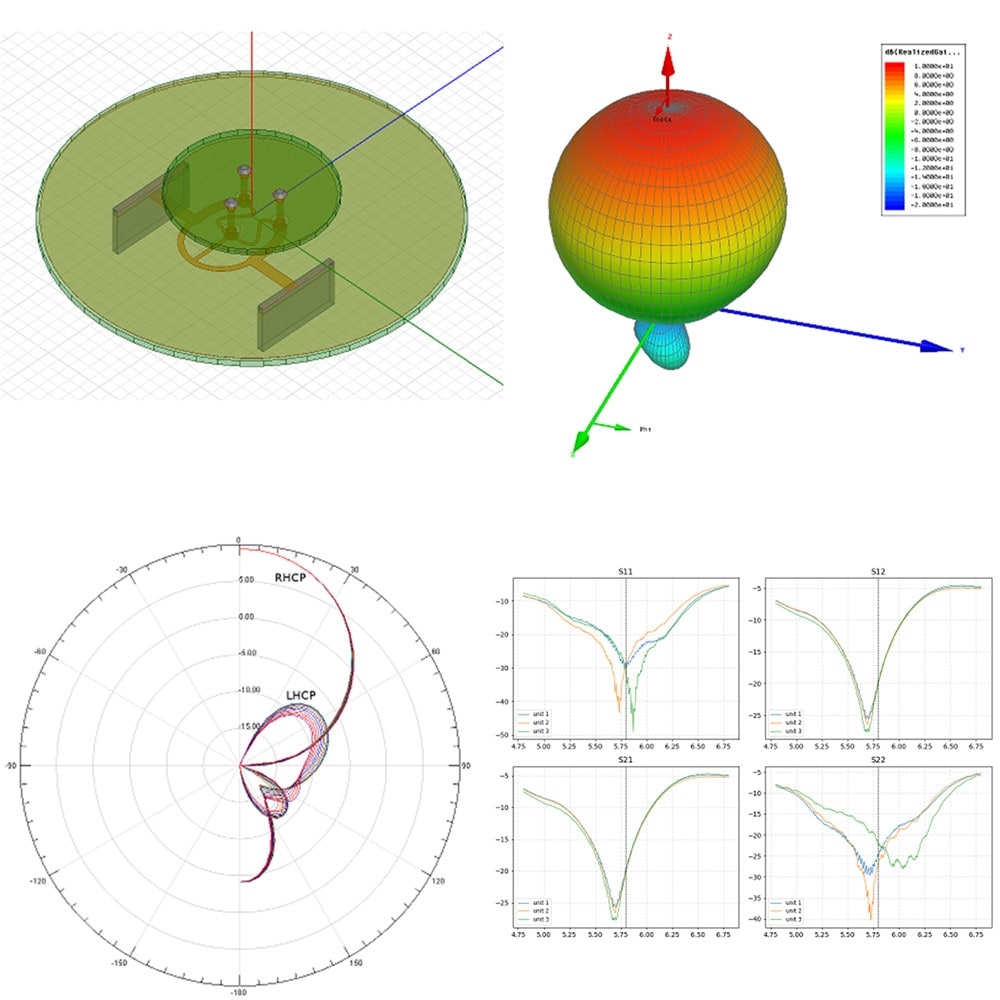

These values are based on simulations, and the actual measured values are as follows (they are very similar).
Due to the change in FR4 dielectric constant, the center frequency may shift between batches.
Moreover, not all FR4 brands have the same dielectric constant.
Frequency conversion to 100 MHz is normal.
Center Frequency: 5.8GHz
Bandwidth: 660MHz(5.47-6.13GHz)
Match: S11 less than -20dB, VSWR less than 1.22(at center frequency)
Axial Ratio: less than 1.3
DBi Antenna Gain: 9.4
Half Power Beamwidth: 55degree(horizontal and vertical)
Radiation Efficiency: 83.5 percent
These values are based on simulations, and the actual measured values are as follows (they are very similar).
Due to the change in FR4 dielectric constant, the center frequency may shift between batches.
Moreover, not all FR4 brands have the same dielectric constant.
Frequency conversion to 100 MHz is normal.
Specification
Custom |
|
|---|---|
General |

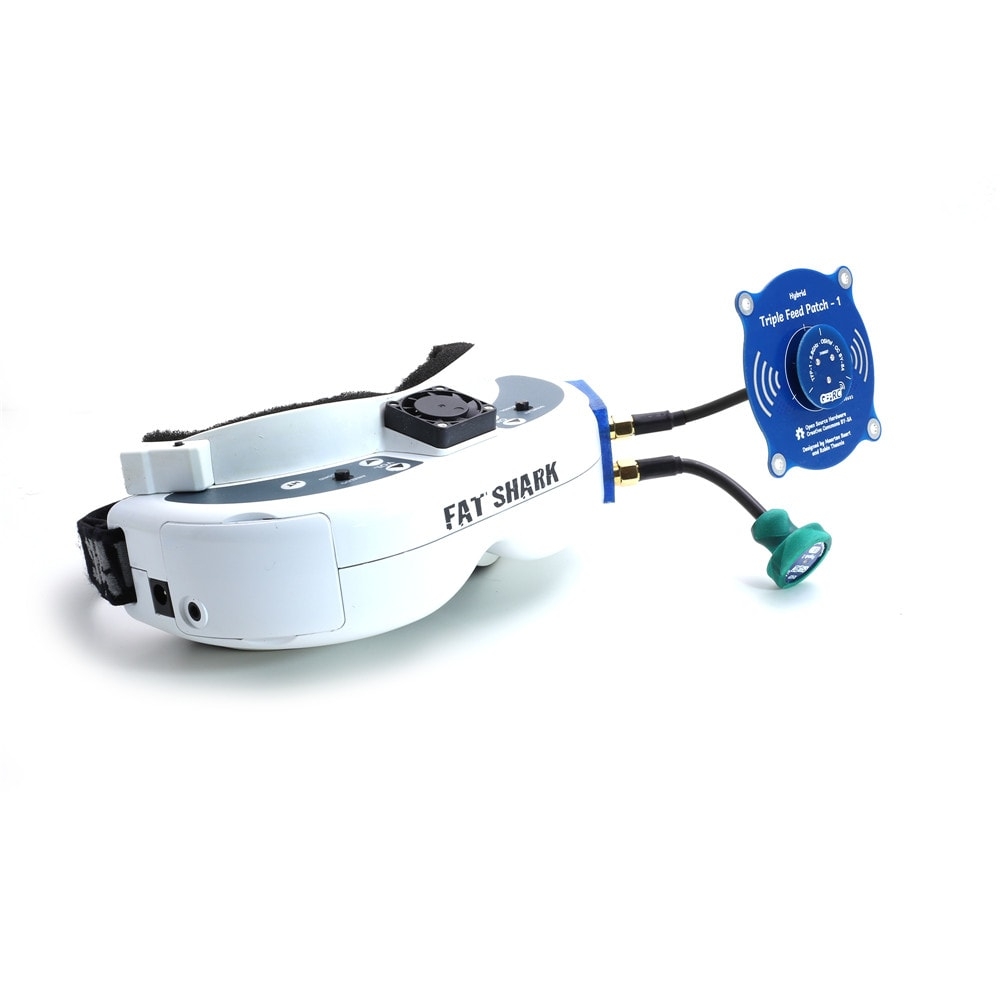

FPV Equipments: FPV Antenna
Functions: HDMI |
Dimension and Weight |
Product weight: 0.0360 kg
Package weight: 0.0450 kg Product size (L x W x H): 5.00 x 5.00 x 1.60 cm / 1.97 x 1.97 x 0.63 inches Package size (L x W x H): 6.00 x 6.00 x 2.00 cm / 2.36 x 2.36 x 0.79 inches |
Package Contents |

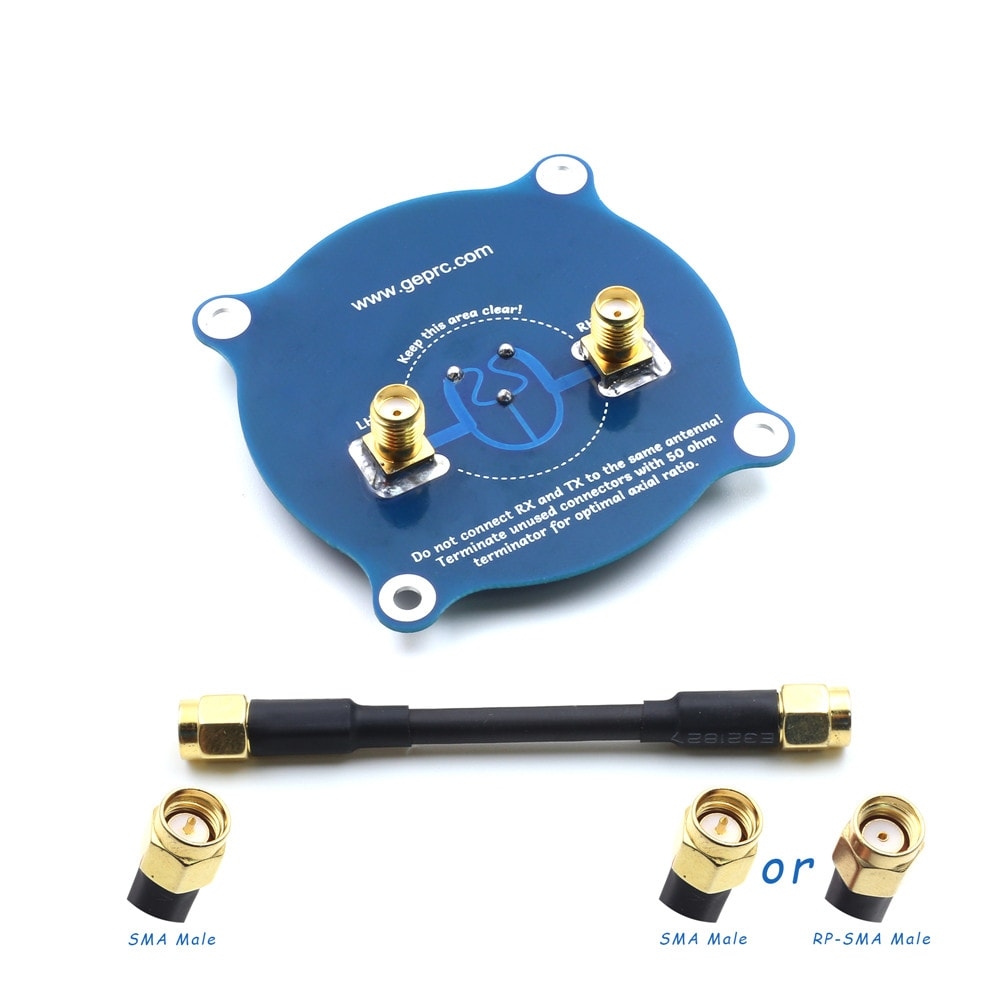

Package Contents: 1 x antenna 1 x Board (other accessories not included.) |
