Highlights
5.8G FPV
The TS5828 transmitter packs 200mW of ultra clean 5.8GHz power in a moderate-sized video/audio transmitter! A must have for those looking to experience real-time video transfer while still getting excellent performance.

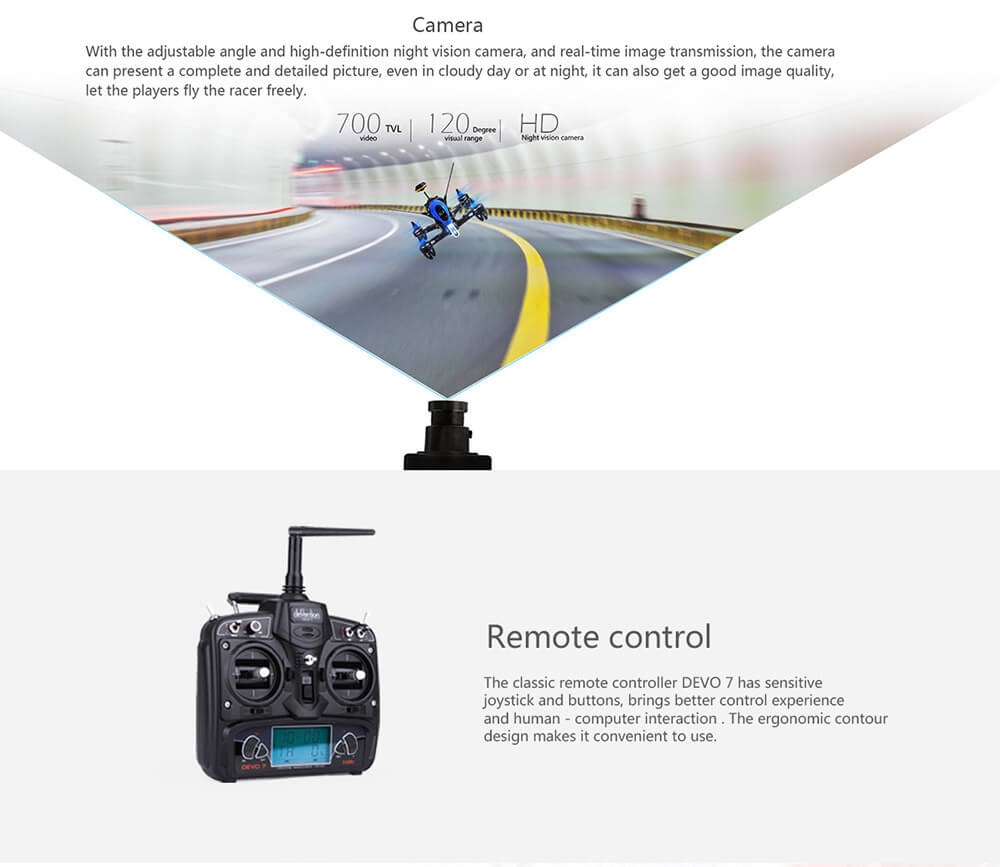

700TVL HD Camera
700TVL HD Camera is mounted on the aircraft, to broadcast the live video to the pilot on the ground, so that the pilot is flying the aircraft as if he/she is onboard the aircraft instead of looking at the it from the pilot’s actual ground position.
F3D Flight Control
Flight Control, designed for high-performance flight experience, adopts the latest F3D flight control system with proven sensor algorithms, while providing unparalleled high performance experience. With the latest lightweight flight control-oriented CPU, F3D flight control system will give your aircraft all the functionality required, whether doing FPV competitions, aerobatics, or aerial photography.
Specification
| General | |
|---|---|
| Brand | Walkera |
| Model | F210 |
| Quantity | 1 Piece |
| Specification | |
| Aircraft | Main Rotor Dia: 128mm Remote Controller: DEVO 7 / DEVO F7 Receiver: DEVO-RX713 Main Controller: FCS-F210(F3D) Transmitter: TX5825(FCC)/TX5824(CE) OSD: F210 OSD Brushless Motor: WK-WS-28-014A(CW/CCW)KV2500 Brushless ESC: F210 3D(CW/CCW) Battery: 14.8V 1300mAh 40C 4S Li-PO 2D Flight Time: 8~9mins 3D Flight Time: About 5mins Working environment: -10 ~ +40 degrees |
| 700TVL Camera | Horizontal Resolution: 700TVL System Commitee: PAL/NTSC Video Out: 1.0Vp-p/75Ω Power Input: DC 12V |
| TX5825(FCC)/TX5824(CE) Transmitter | 5.8G wireless: image transmission TX5825(FCC) Bind B section 4 channels TX5824(CE) Bind B section 8 channels TX5825(FCC) output power ≤200mW TX5824(CE) output power ≤25mW |
| Dimensions & Weight (Main Product) | |
| Dimension | 182x182x103mm |
| Weight | 370g(Battery included) |
| Package Contents | |
|
1 X F210 3D Edition RC Quadcopter |
|
| 1 X DEVO-7 Transmitter | |
| 1 X 700TVL HD Camera | |
| 1 X OSD | |
| 1 X Battery(14.8V 1300mAh 40C 4S Li-PO) | |
| 1 X Charger | |
| 1 X English Instructions | |
