Beta95X is the smallest and lightest whoop drone with HD digital VTX in the world. The wheelbase is only 100mm and the weight is 110g without battery. Even small and light enough, but the performance doesn't decrease. With 2.5" 3-blades propellers, 1106 motors, and 16A BLHeli_32 ESC, the drone could do all the acrobatic motions smoothly, like dive and power loop.
Beta95X could support the DJI FPV Goggles. Pilots can now enjoy both superb image quality and a minimum latency within 28 ms. Beta95X flying footage with 4S 450mAh battery. The video is recorded with DJI FPV goggles in 720P@60fps.
Bullet Point
Beta95X whoop platform is designed for FPV drones can need to take heavyweight, like 30g Caddx Vista. Which the new whoop platform, it pushes the new era of brushless whoop drones to a higher level.
With the high-performance STM32F051K66 processor FC boards and tuned BETAFPVF405(BEFH), faster input signals with lower latency and higher update rates are reachable, give you much more power.

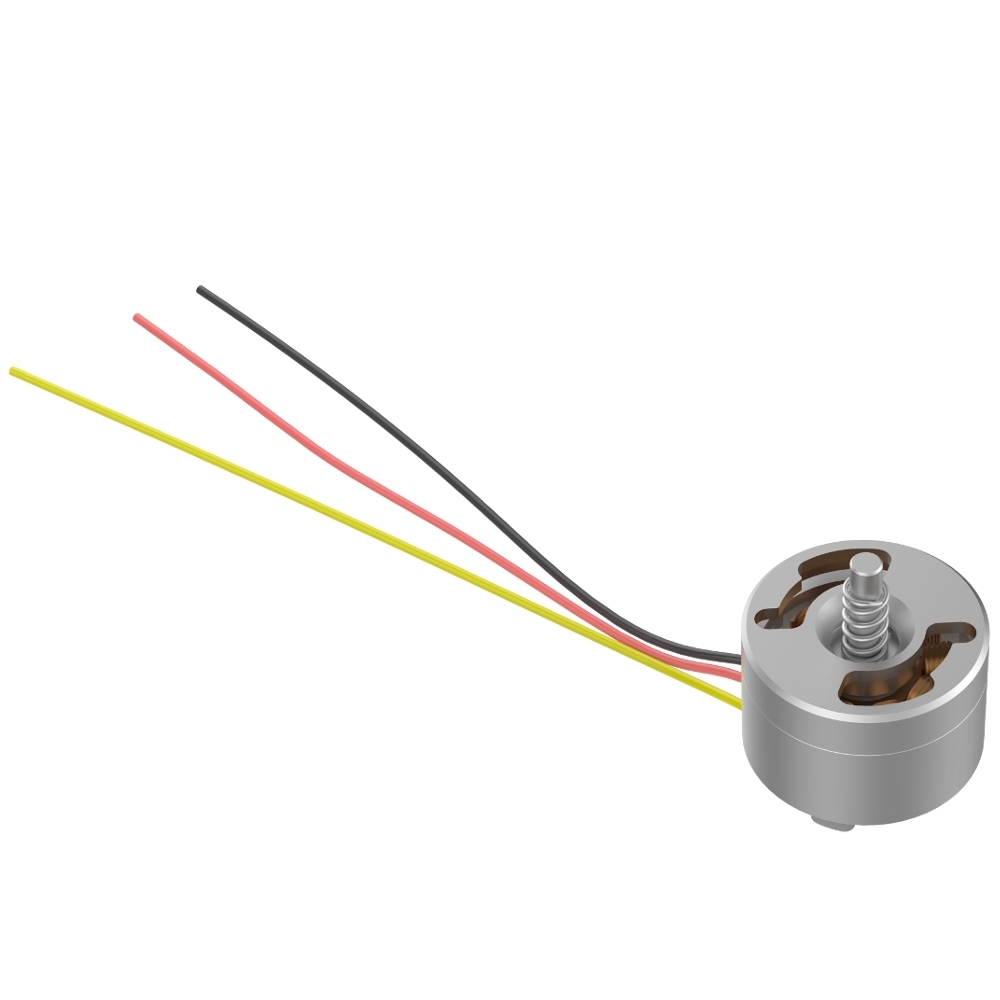

1106 4500KV motors will give you extreme power and speed to fly on 4S. The motor comes with cable connectors. Just plug and play.
450mAh 4S high rate battery is recommended by default. But pilot could also use their own batteries with battery strap. Optional and affordable.
Specification
Item: Beta95X Whoop Quadcopter
Weight: 110g (without battery)
Wheelbase: 100mm
F405 Flight Controller & 16A BLHeli_32 ESC V2.0
Frame: Beta95X Frame
Motors: 1106 4500KV with connector
Props: Gemfan 2540 3-Blades Props
Receiver Option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire
Battery: 4S 450mAh Battery (Not including)
HD digital camera & VTX: Caddx Vista
Flight time: 4min - 5min with 450mAh 4S battery (smooth flight in a windless environment)
95X Whoop Platform
In September 2018, BETAFPV released the 75X whoop platform and create a new era of brushless whoop drones. In order to carry the 20g Caddx Tarsier 4K camera, we re-designed the 85X platform in Jan 2019. Now it is the time for the 95X whoop platform, for HD digital video transmitter.
What's is a key point for the different of these whoop platforms, 75X/85X/95X? Is it the motors? the FC and ESC? the quantities of battery cells? Maybe yes for all. But the most important component is the length of the propellers. Even 85X and 95X platforms have the same components, like same motors, same battery same weight, etc, the 95X with 2.5" props will have a noticeable improvement in flying.
| Time | Whoop Platform | Props | Bear Load |
| Sep 2018 | Beta75X | 1.7 inch | Caddx Turtle (15g) |
| Jan 2019 | Beta85X | 2.0 inch | Caddx Tarsier (20g) |
| Jan 2020 | Beta95X | 2.5 inch | Caddx Vista (30g) |
In the 95X platform, you could use the same motors in 85X drones, like 1105 or 1204, etc. But we would highly recommend the 1106 motors to get an aggressive flying experience.
Caddx Vista
The Caddx Vista HD digital video transmitter can work with DJI FPV camera, goggles, and remote controller. The total weight (with camera and antenna) is 35g only, about 20g lighter than the DJI FPV unit. Besides, it is smaller and designed to suit for whoop drones.
The new BETAFPV mini canopy V3 could suit for the Caddx Vista very well. In order to protect the camera lens from crashes, a 3D printer TPU lens protector is included.
Props Out
The Beta95X drone also comes with "props out" by default. Why we need "Props out" direction?
Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in the hardest cornering.
Package Included:
1 * Beta95X Whoop Quadcopter
