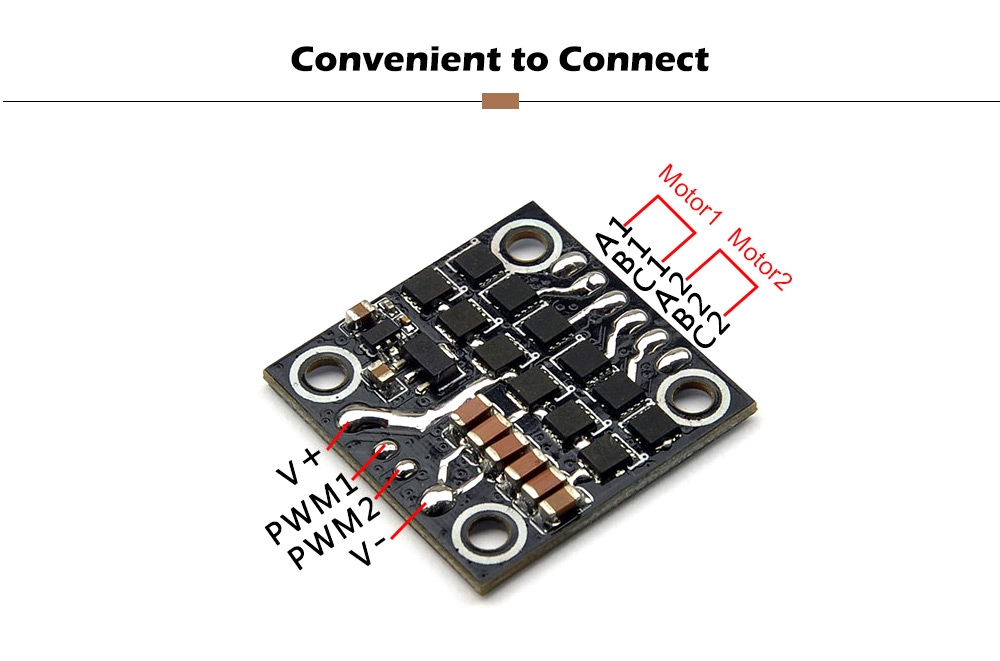

BS20D 2-in-1 Mini BLHeli - S 20A Brushless ESC

BS20D 2-in-1 Mini BLHeli - S 20A Brushless ESC
Seller: GearBest,
Ship from: CN Warehouse, Usually dispatched in 1-3 work days.

FREE SHIPPING: 10-35 days. (DHL faster please check price/quantity first)


Main Features:
- Most powerful 8BB2 48MHz chips, BLHeli - S firmware for excellent performance
- Specially designed for PIKO BLX micro FC, CleanFlight / BetaFlight pass-through ready
- Hardware-generated motor PWM for ultra smooth throttle response / quiet operation
- Regenerative braking capability, active freewheeling capability

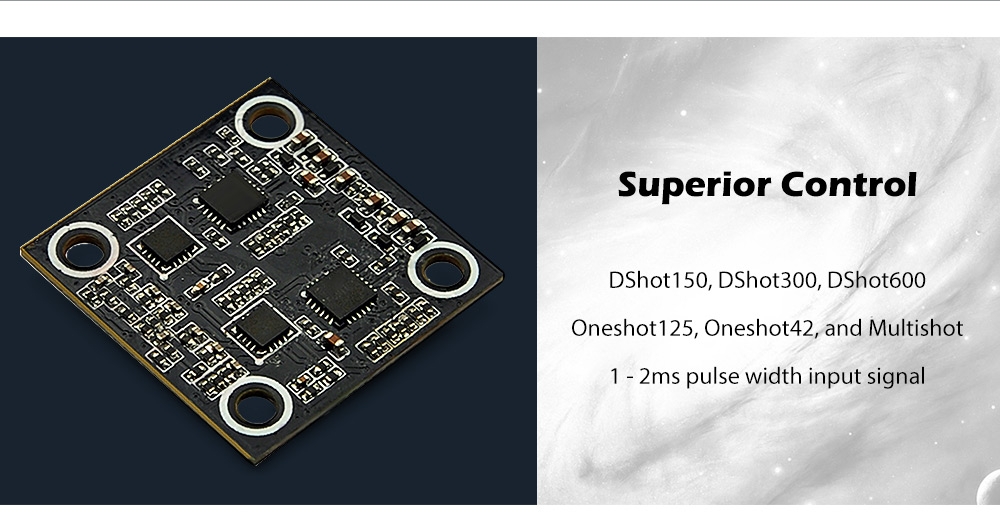

- Supports regular 1 - 2ms pulse width inputs, Oneshot125, Oneshot42, and Multishot

Specifications:
Continuous current: 20A
Item type: BS20D
BEC: no
No. of cells: 2 - 4S
Programmable: yes
Weight: 4g ( without cable )
Size: 27 x 27mm
Hole spacing: 20.5 x 20.5m
Compatibility: PIKO BLX flight controller

Specification

General

Type: ESC

Electronic Speed Controller

Firmware: BLHeli-S
Functions: Damped Light,DShot150,DShot300,DShot600,Multishot,Oneshot125,Oneshot42
Continuous Current: 20A
Burst Current: 25A
Input Voltage: 2 - 4S

Dimension and Weight

Product weight: 0.0031 kg
Package weight: 0.0160 kg
Product size (L x W x H): 2.70 x 2.70 x 0.50 cm / 1.06 x 1.06 x 0.2 inches
Package size (L x W x H): 3.00 x 4.50 x 1.00 cm / 1.18 x 1.77 x 0.39 inches

Package Contents

Package Contents: 1 x 2-in-1 ESC, 1 x Set of Cables
