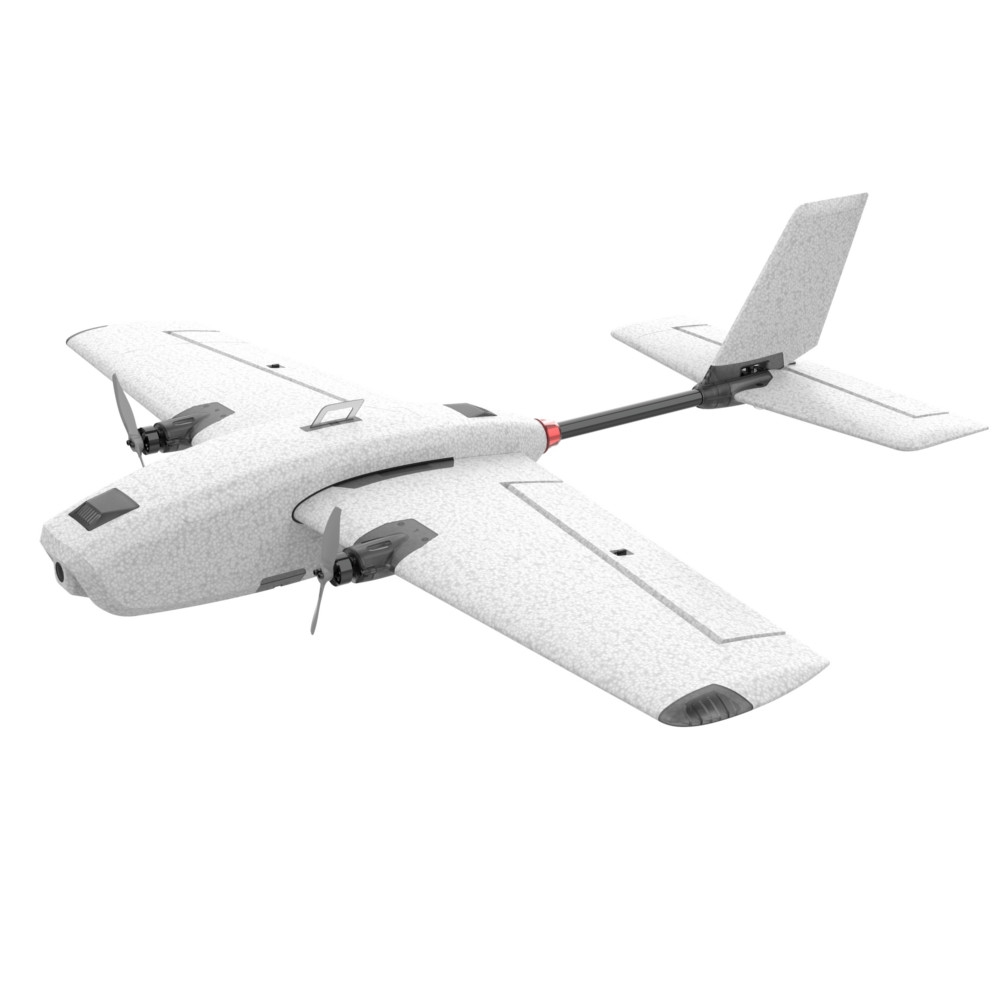

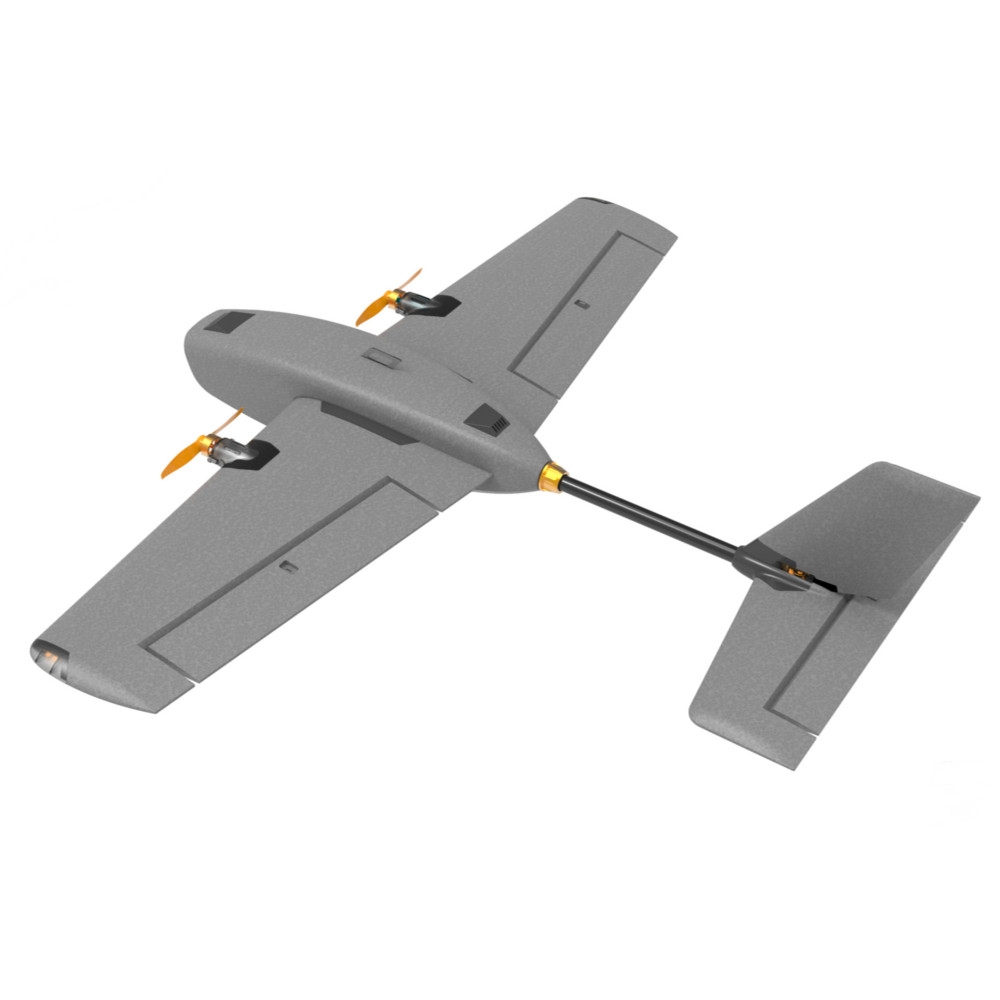

HeeWing T1 - Ramger - 730mm of pure awesomeness




Specifications:

Brand Name: HEE WING

Item Name: T-1 Ranger

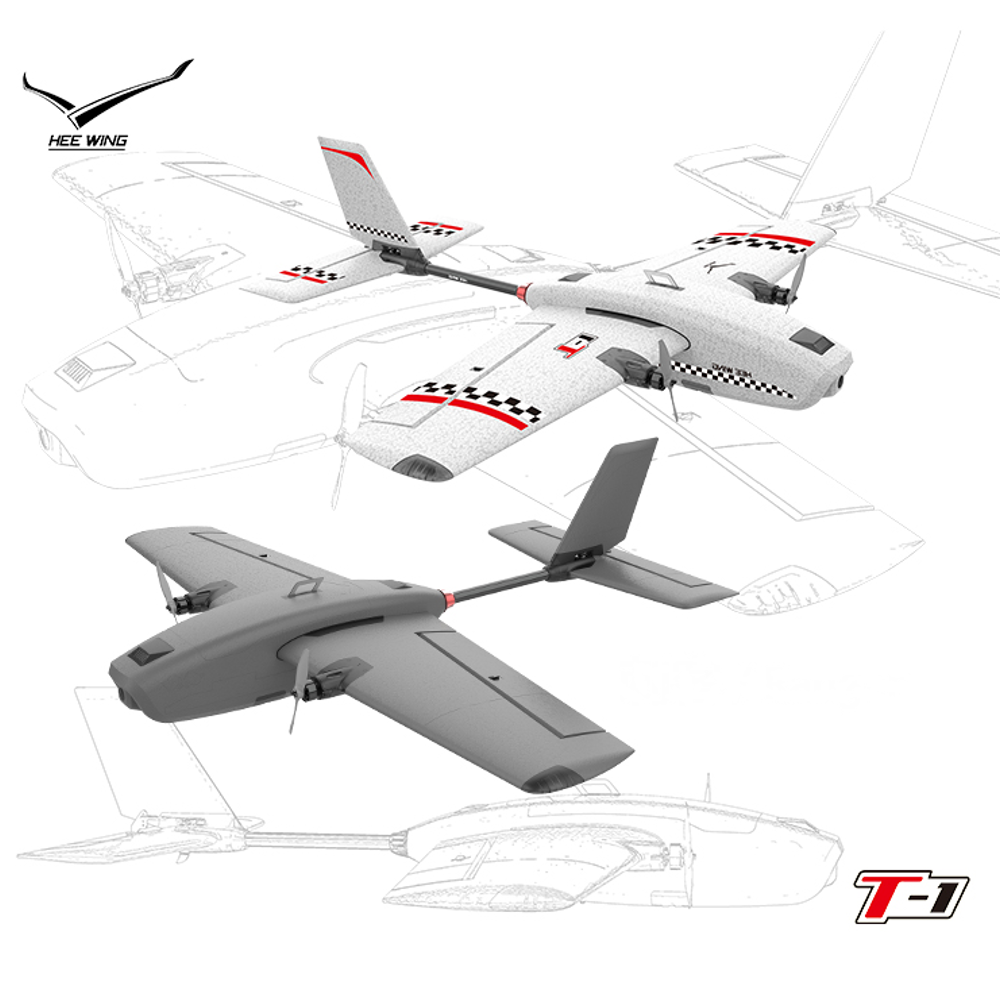

Color: Grey, White (optional)

Version: KIT, PNP (optional)

Material: EPP / ABS+PC / carbon fiber / aluminum

Wingspan 730mm

Length: 645mm

Height: 140mm

Empty Weight: 155g (white) / 205g (grey)

Takeoff Weight: 350g ~ 500g

Cabin Space: Length 245mm x Width 51mm x Height 48mm

Minimum Flying Speed: <20km/h

Maximum Flight Speed: >120km/h

Maximum Cruising Range: >25km

Tensile Force: >600g (measured statically with the brushless version of 3S)

Packing Size: 400mm * 230mm * 155mm

Package Weight: 880g (PNP)





Power System (only included in PNP Version):

Motor: FX-1404-3700KV brushless

ESC: FX-20A brushless

Propeller: FX-3830

Servo: FX-5g



Recommended Parts (Not included in any version):

Battery: 2S ~ 3S 1300mah~ 5000mah LiPo

Radio System: 2.4G 6CH





Features:

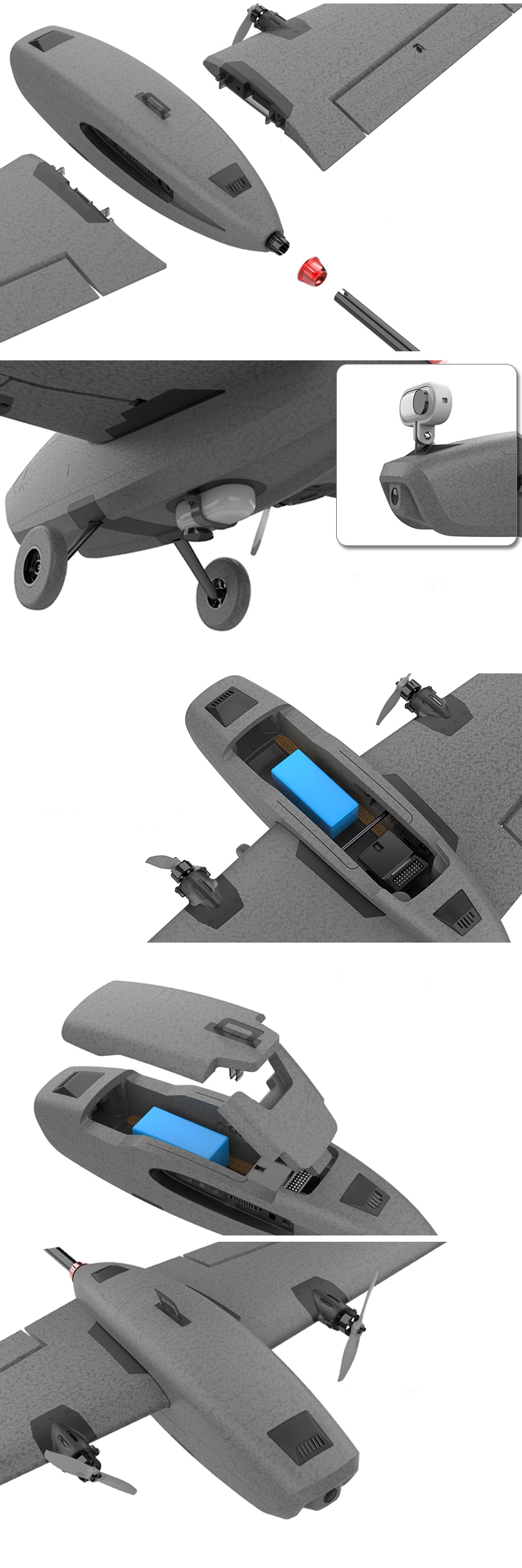

- Lightweight and portable, quick disassembly design, disassembly and assembly only takes one minute.

- The dual motors have strong power and the thrust-to-weight ratio is as high as 1.71.

- Excellent aerodynamic design, slower flight is more stable.

- Small wingspan, large space, easy layout of electronic equipment.


- The design of doubling the adjustable range of the center of gravity, taking into account the dual flight requirements of light load and heavy load.

- The hatch cover adopts bayonet design, the structure is more reliable.

- The new flight control system makes it easy to control the vast sky.

- Support for external cameras, which can take multiple cameras at the same time.



Note:

KIT Version doesn't include motor,esc,servo,propeller,battery,charger,transmitter,receiver.

PNP Version doesn't include battery,charger,transmitter,receiver.

Glue is not included.



Package Included:

1x HEE WING T-1 Ranger 730mm Wingspan Dual Motor EPP FPV RC Airplane KIT/PNP



Available for preorders: BangGood and HeeWing.com
